Function Blocks
RAI Function Block
304 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07

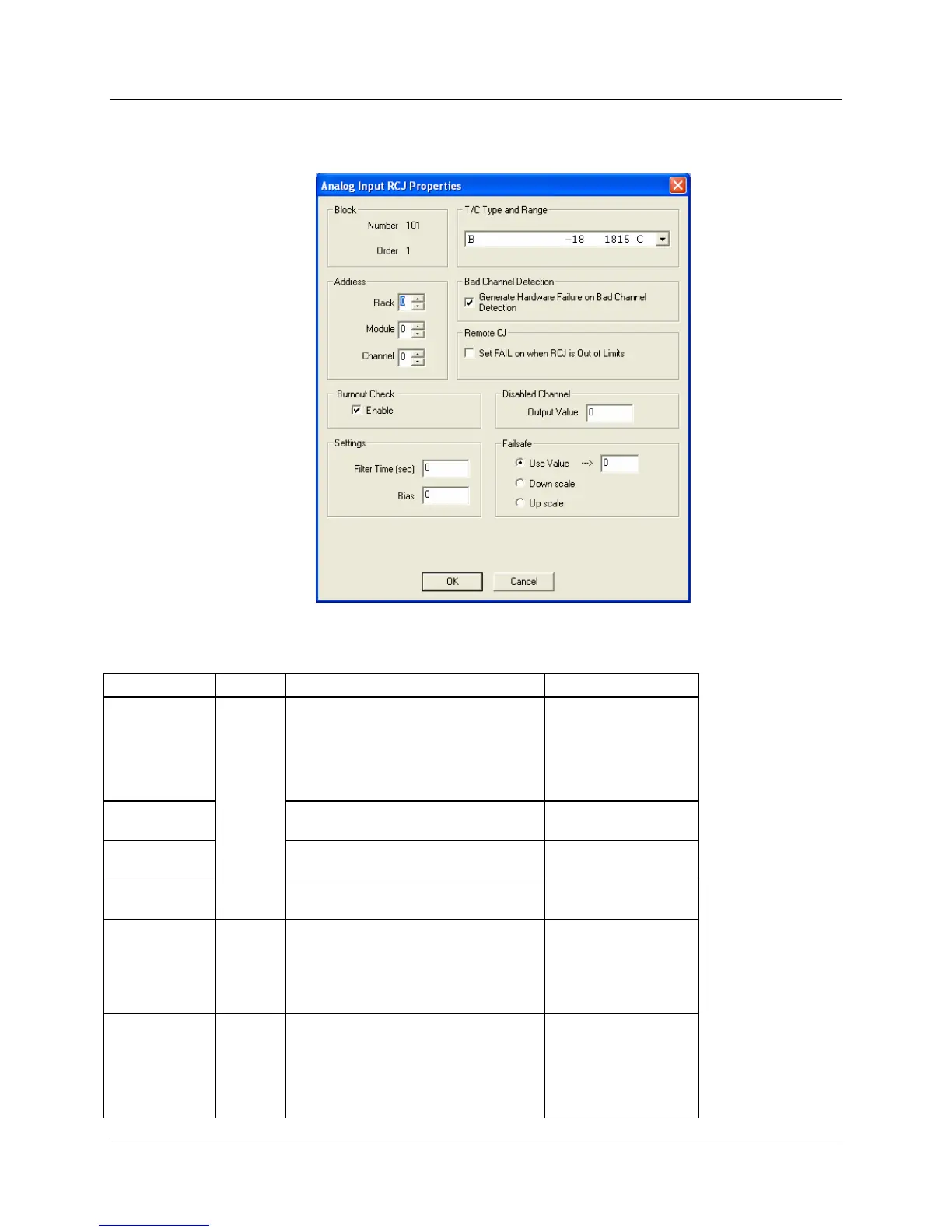

Configuration parameters
Table 89 Analog Input with Remote C/J configuration parameters
Parameter Index # Parameter Description Value or Selection
Block Order
N/A Execution Order for Block
Read Only. To
change block order,
right-click on a
Function Block and
select Execution
Order.
Rack
Address
This is the address of the selected
Rack.
Enter a value
from 1 to 5.
I/O Module
Address
Address of selected I/O module (must
match model selection guide)
Enter a value:
from 1 to 12
Channel
Address
Channel on selected I/O Module
Enter a value:
from 1 to 8 or 16.
T/C Type and
Range
N/A Thermocouple Input types
Select an input from
list box.
See
HTable 90 for
Input Type and
Range
Bad Channel
Detection
N/A
Check this to generate a hardware
failure diagnostic if a bad AI channel
is detected. If unchecked, a
diagnostic will not be generated,
which may be desirable for inputs
used for monitoring only.
Click on block to
select or deselect
To Next Page
