CARB Carbon Potential Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 107
2/07

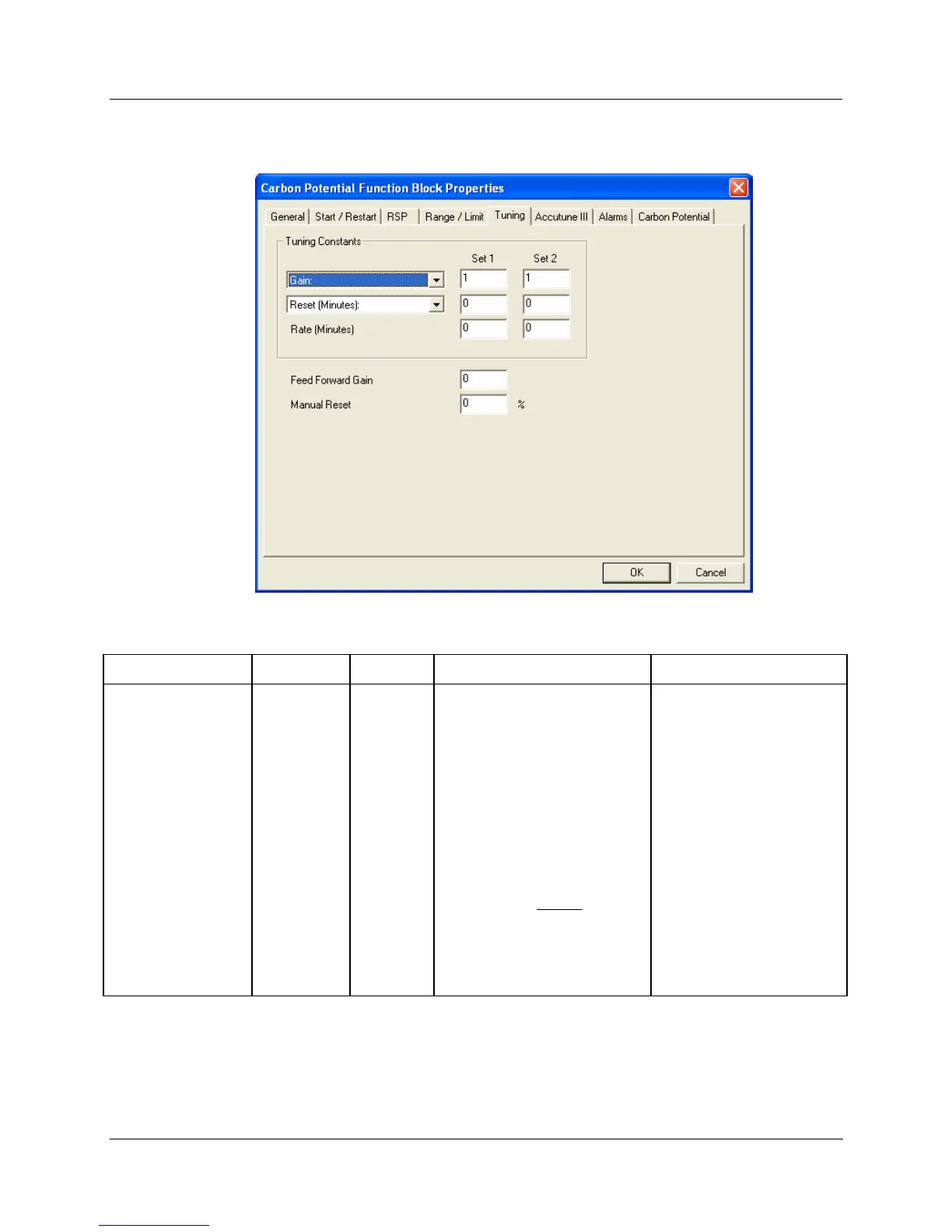

TUNING tab
Table 33 CARB Tuning tab configuration parameters
Properties Group Parameter Index # Parameter Description Value or Selection
Tuning Constants
Prop Band
or
Gain
0
PB1 or
Gain 1
36
PB2 or
gain 2
Proportional Band (PB) - is
the percentage of the range of
the measured variable for
which a proportional controller
will produce a 100 % change in
its output.
Gain - is the ratio of output
change (%) over the measured
variable change (%) that
caused it.
G =
100 %
PB %
where PB is the proportional
Band (in %)
0.1 to 1000
0.1% to 1000 %
