Function Blocks
AI Function Block
48 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
Example
HFigure 9 shows a Function Block Diagram configuration using an AI function block.
AI used for work temperature monitoring. Tag descriptors are used to identify
the input. A digital tag connected to the fail output can alarm on an open
sensor.

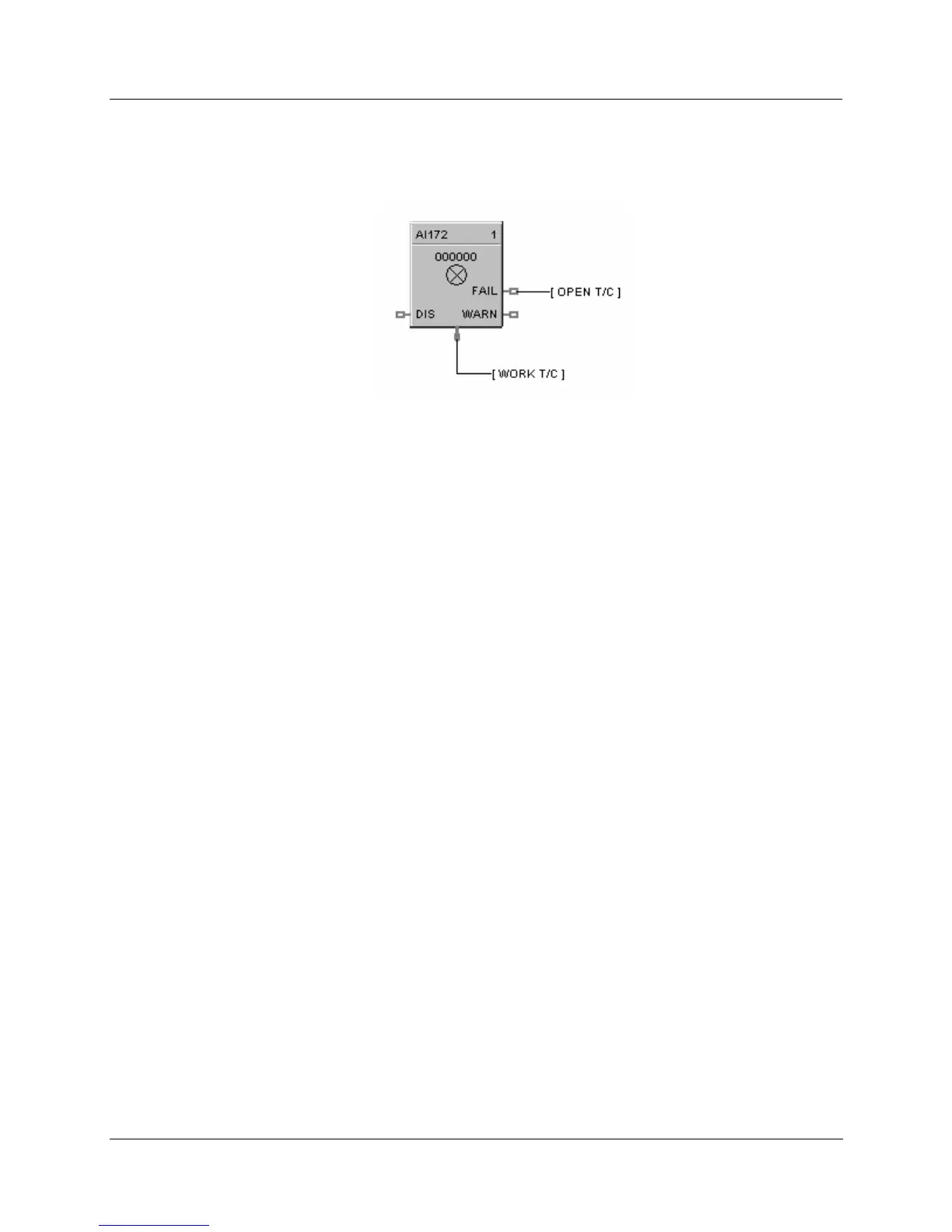

Figure 9 AI function block example
