Function Blocks
MBR Modbus Read Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 195
2/07

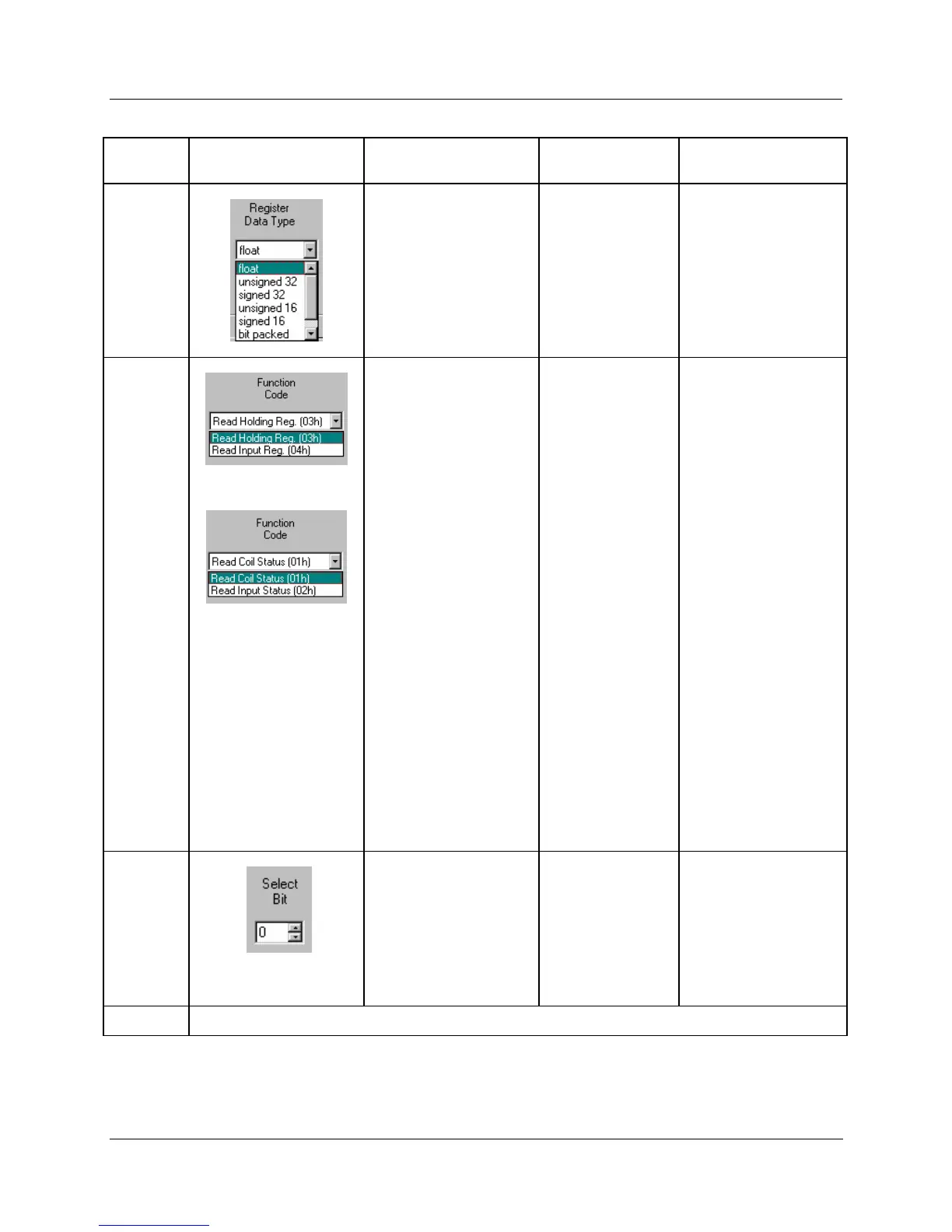

Sequence
Number
Parameter
Field
Action Selections Comments
4
From the drop down
menu, select the
Register Data Type
Float
Unsigned 32
Signed 32
Unsigned 16
Signed 16
Bit Packed
Single Bit
If read as an integer,
the output is converted
to a floating point.
5
Select a function code
for “Float, Unsigned,
Signed, or Bit Packed”
register data type
Read Holding
Reg – Function
Code 03
Read Input
Registers –
Function Code
04
Function code 03 or
Function code 04 is
used to read the
contents of input
registers in the slave.
Select a function code
for “Single Bit”
Register data type.
Read Coil
Status –
Function Code
01
Read Input
Status –
Function Code
02
Function code 01 is
used to read a slave's
coil's (discrete output's)
ON/OFF status of the
slave device in a binary
data format.
Function code 02 is
used to read a slave's
input's (discrete
input's) ON/OFF status
of the slave device in a
binary data format.
Output is floating point
equivalent (0.0 or 1.0).
NOTE: Refer to the
Communications
manual for the function
codes supported by the
specific device.
6
Select which bit (0-15)
to read when Register
Data Type = Bit Packed
0 to 15
If read as a bit packed
number, you must
select which bit to
mask (0-15).
The output will be the
floating-point
equivalent (0.0 or 1.0)
of the masked bit.
7
You must press [APPLY] to accept the register changes.
