4MUL Multiplier (4 input) Function Block
Revision 11 HC900 Hybrid Control Designer Function Block Reference Guide 221
2/07

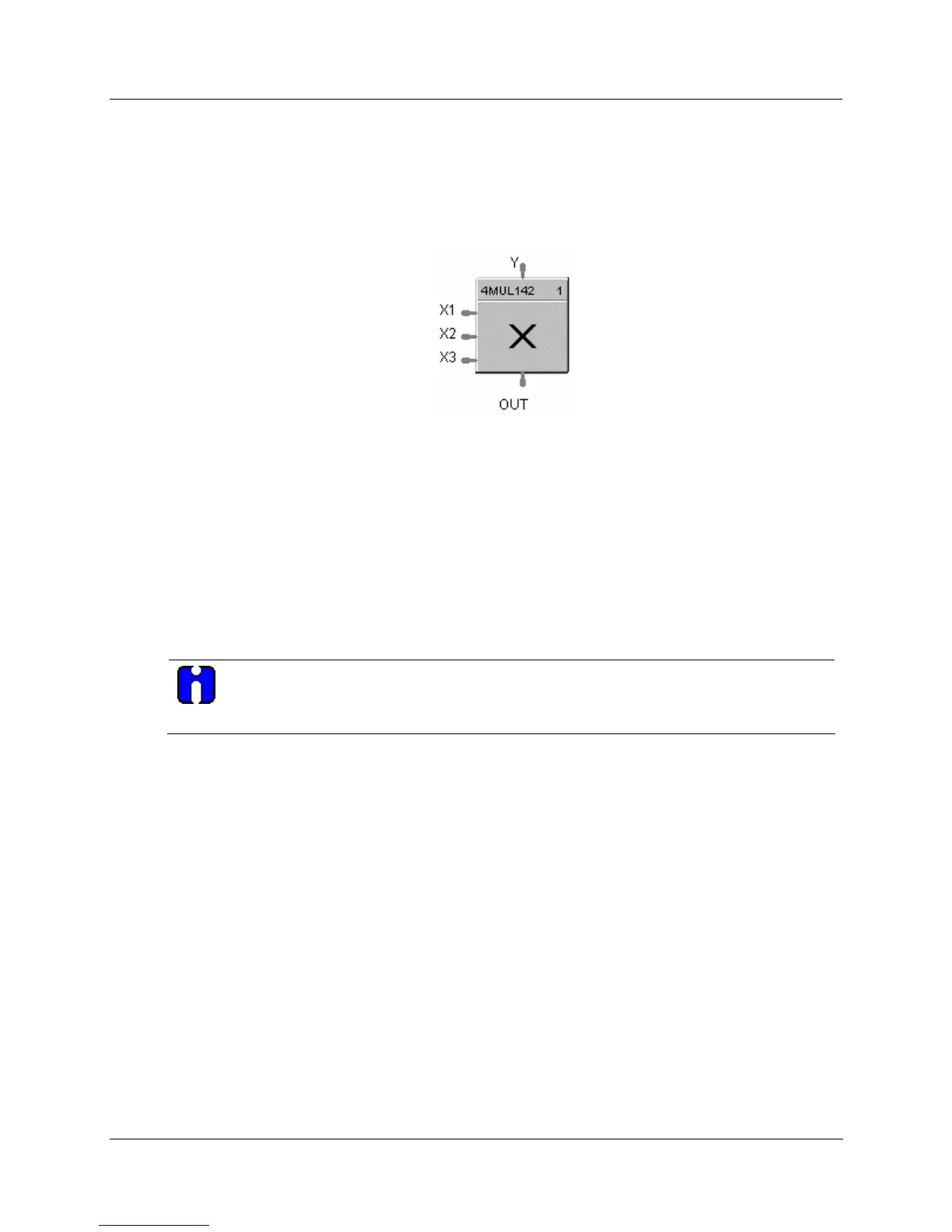

4MUL Multiplier (4 input) Function Block
Description
The 4MUL label stands for Multiplication Mathematical Operation (4Inputs).
This block is part of the
Math category.
Function
Multiplies four inputs to get an output.
Input
X1
= First analog value
X2 = Second analog value
X3 = Third Analog value
Y = Fourth Analog value
ATTENTION
All four inputs must be connected. Unconnected inputs default to zero. If only three inputs are
needed, the fourth should be connected to a constant value of 1.
Output
OUT
= Calculated analog value
Block properties
Double click on the function block to access the function block properties dialog box.
