PB Pushbutton Function Block
252 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07

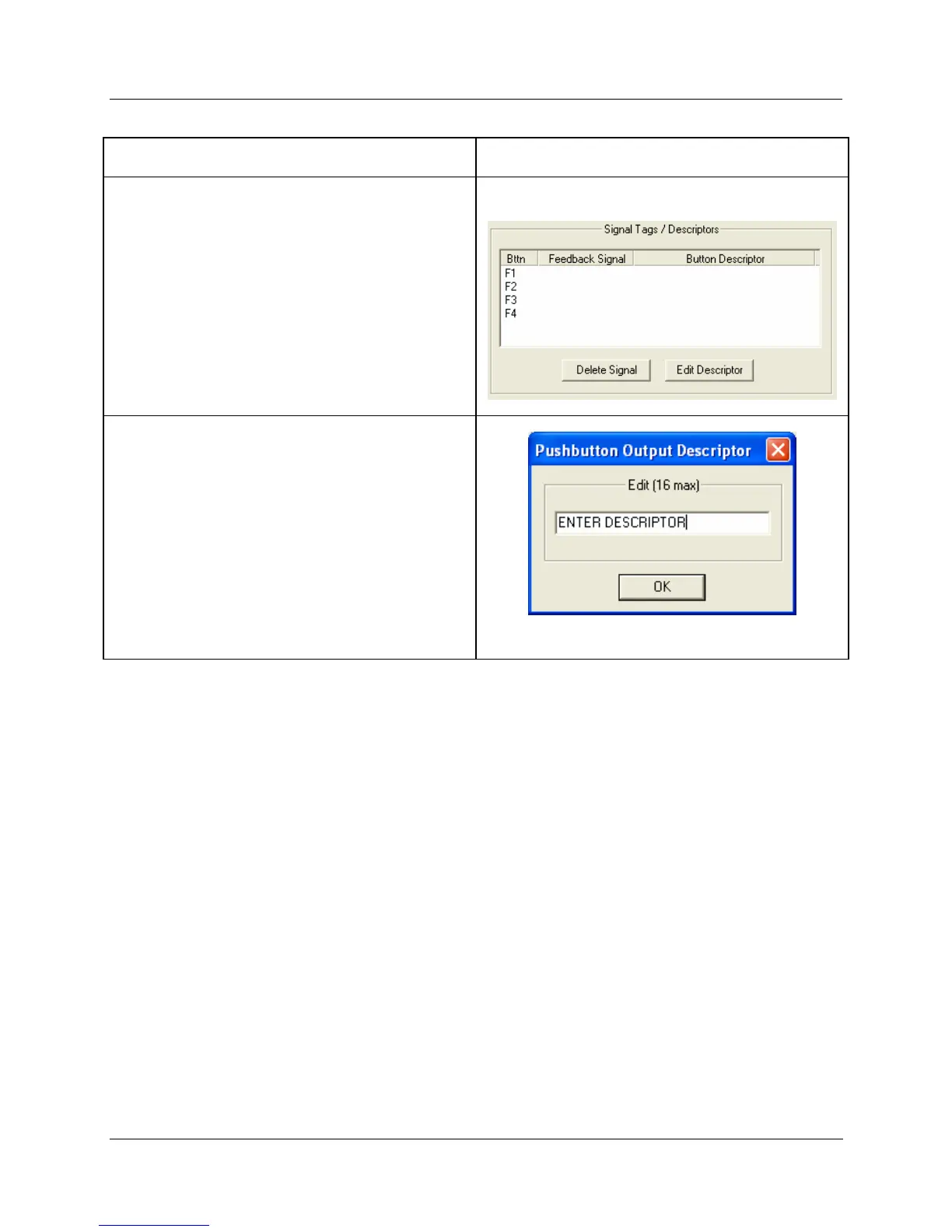

The selected Signal Tag will be placed in the “Signal
Tags/Descriptors” field
• Repeat selection for up to 4 Pushbuttons.
• To delete a selected Tag, click on the position of the
tag and click “Delete”.
• To Add or Edit and output descriptor to the display,
click on the “Bttn” number and then on “Edit
Descriptor” and type in the descriptor in the Edit field.
• Click “OK”.
You can assign Pushbutton Configuration Groups
to Display Buttons, refer to Display Buttons (1-8)
Configuration in the Hybrid Control Designer User's
Guide.
Example
HFigure 67 is an overview of a pushbutton configuration.
