Function Blocks
TPSC (3POS) Function Block
422 HC900 Hybrid Control Designer Function Block Reference Guide Revision 11
2/07
MOTOR tab

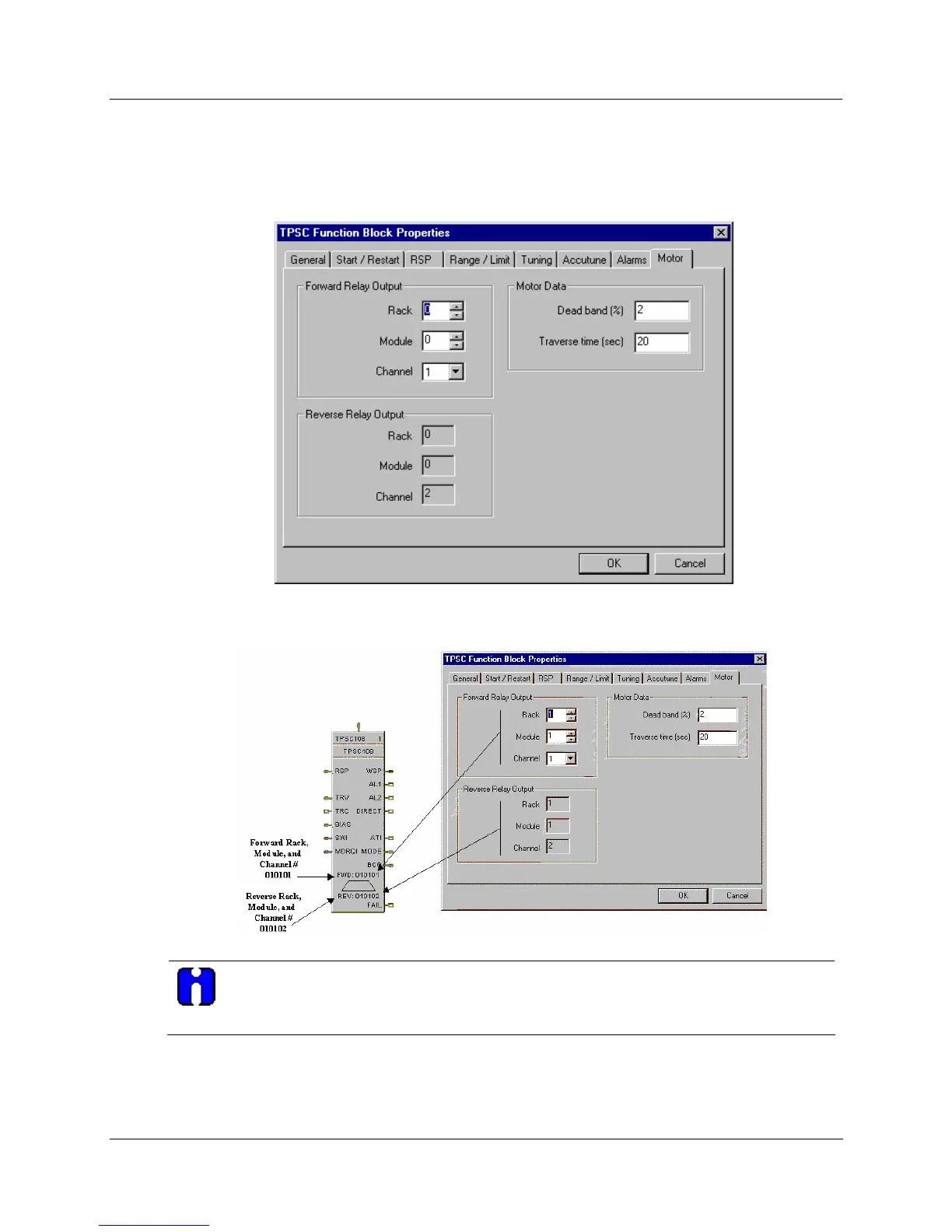

Three Position Step control is accomplished by assigning the motor control relays physical address under
this tab.
Example
ATTENTION
TPSC output addresses are not checked for redundant assignment or mismatch with controller
hardware; therefore, use caution to insure unique address and correct I/O module.
