CALCulate Subsystem
CALCulate[1|2]:GAIN[:MAGNitude] <numeric_value>
HP E4418B/E4419B Programming Guide 3-5
CALCulate[1|2]:GAIN[:MAGNitude] <numeric_value>
This command is used to enter a value for the display offset on the
specified window. The display offset is applied to the measurement signal
after any math calculation.
Entering a value using this command automatically turns the
CALCulate[1|2]:GAIN:STATe command to ON.

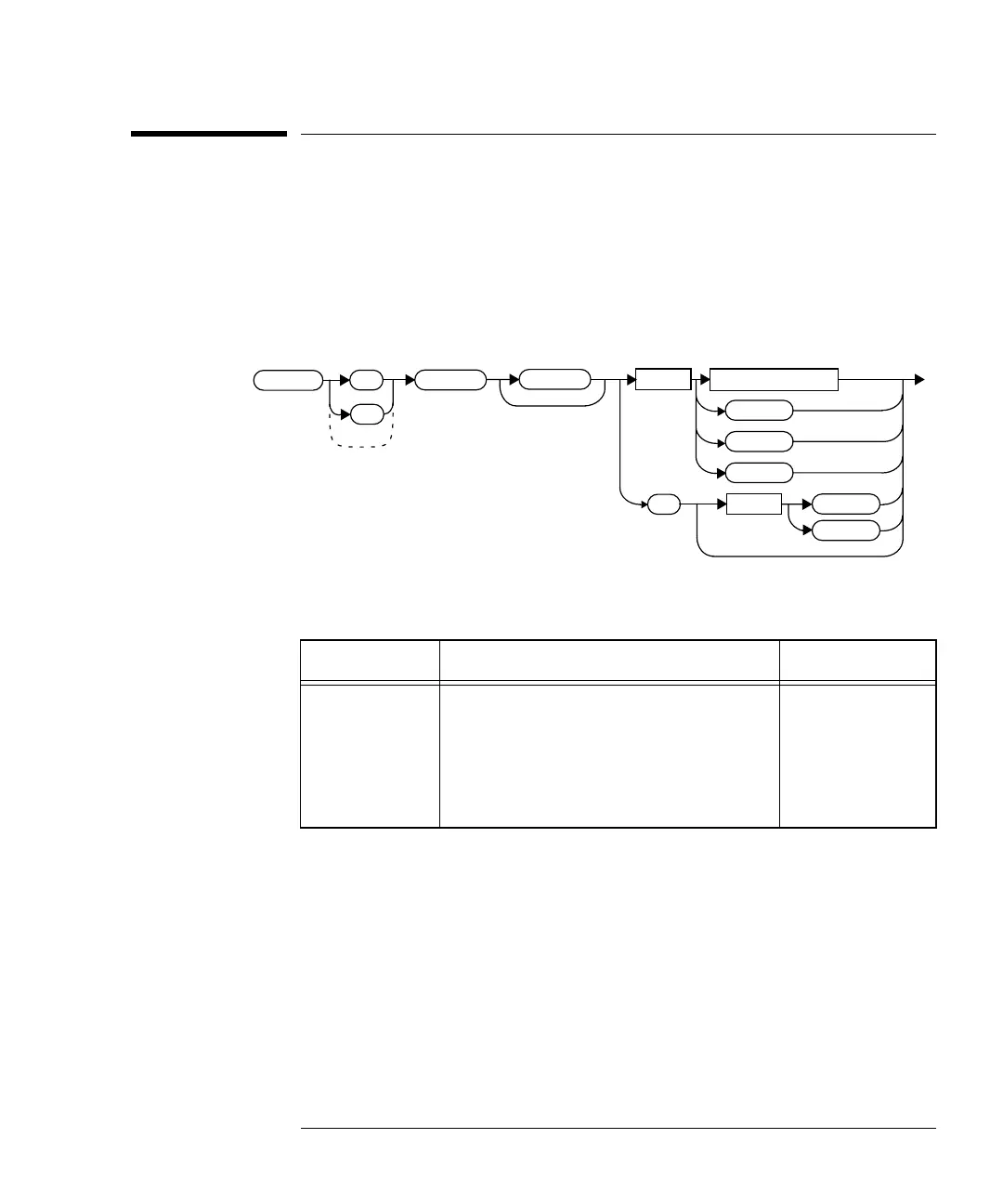

Syntax
Parameters
Example
Reset Condition
On reset, the display offset is set to 0 dB (DEF).
Item Description/Default Range of Values
numeric_value A numeric value. The default value, DEF,
is 0 dB. The value for MIN is -100.000 dB.
The value for MAX is +100.000 dB.
-100.000 to
+100.000 dB
DEF
MIN
MAX
CALC2:GAIN 20 This command enters a display
offset of 20 dB to the lower
window.
CALC
1
2
:MAGN
:GAIN
Space
?
numeric_value
DEF
MIN
MAX
MIN
MAX
Space
