DISPlay Subsystem

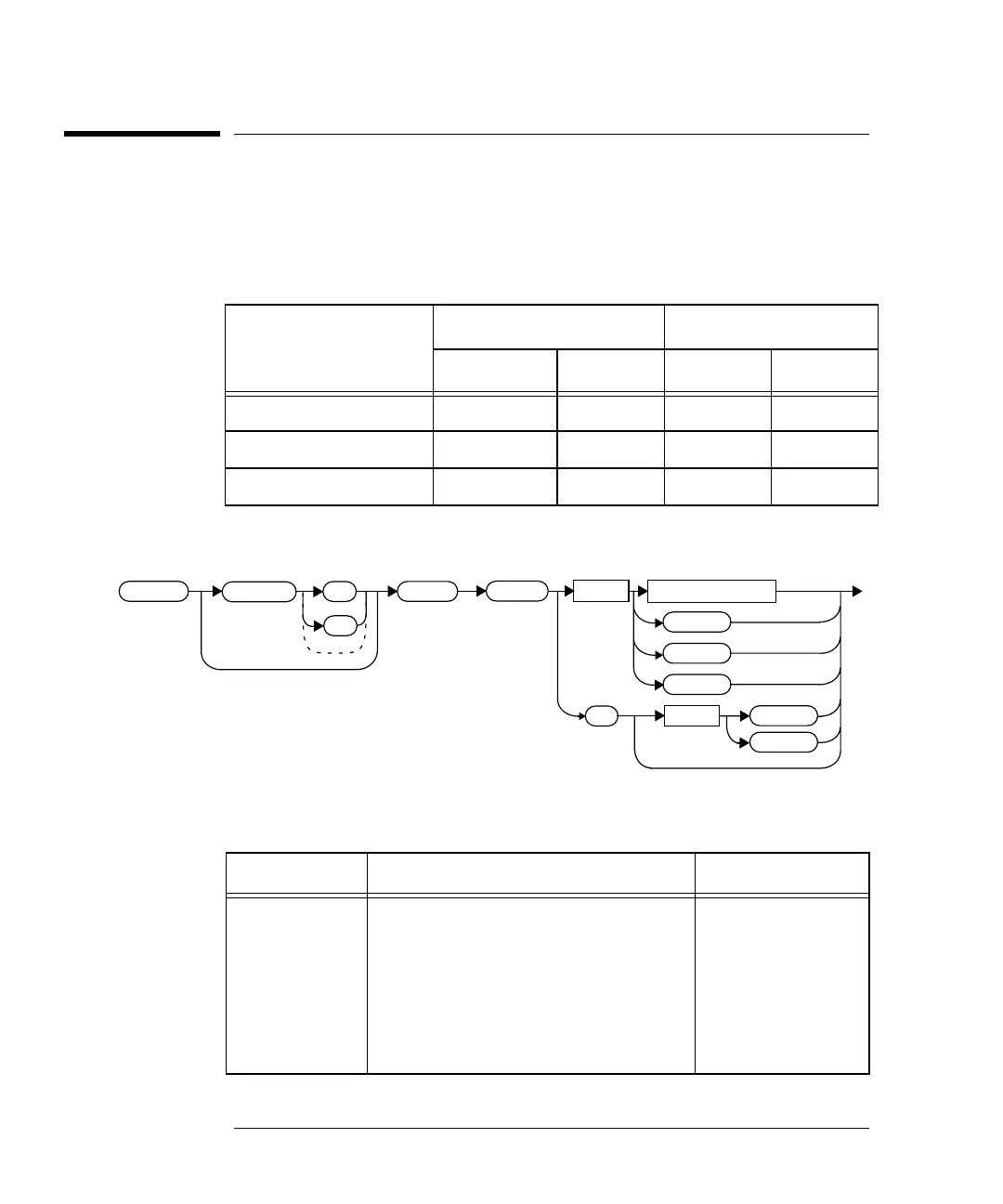

DISPlay[:WINDow[1|2]]:METer:UPPer <numeric_value>
5-12 HP E4418B/E4419B Programming Guide
DISPlay[:WINDow[1|2]]:METer:UPPer <numeric_value>
This command is used to set the analog meter upper scale limit. The units
used are dependent on the current setting of UNIT:POWer and
CALCulate:RELative:STATe as shown in Table 5-1.
Table 5-2: Measurement Units
Syntax
Parameters
Measurement
Mode
CALC:REL:STAT OFF CALC:REL:STAT ON
Linear Log Linear Log
Single Channel Watt dBm % dB
Ratio % dB % dB
Difference Watt dBm % dB
Item Description/Default Range of Values
numeric_value A numeric value for the analog meter
upper scale limit. The default, DEF, is
20 dBm. The value for MIN is -150 dBm.
The value for MAX is 230 dBm. The
default units are defined by
UNIT:POWer. The default units are
defined by UNIT:POWer and
CALCulate:RELative:STATe.
-150 to 230 dBm
DEF
MIN
MAX
:WIND
1
2
:MET
Space
?
numeric_value
DEF
MIN
MAX
MIN
MAX
Space
DISP
:UPP
