SENSe Subsystem
[SENSe[1]]|SENSe2:LIMit:UPPer[:DATA] <numeric_value>
HP E4418B/E4419B Programming Guide 9-49
[SENSe[1]]|SENSe2:LIMit:UPPer[:DATA] <numeric_value>
This command is used to enter a value for the upper test limit for the
specified channel used in the [SENSe[1]]|SENSe2:LIMit:FAIL? test.
The value is entered in dBm. When the measured power is greater than
the value specified in [SENSe[1]]|SENSe2:LIMit:UPPer:DATA,
[SENSe[1]]|SENSe2:LIMit:FAIL? reports a fail. When the measured
power is less than or equal to the limit, a fail is not reported.

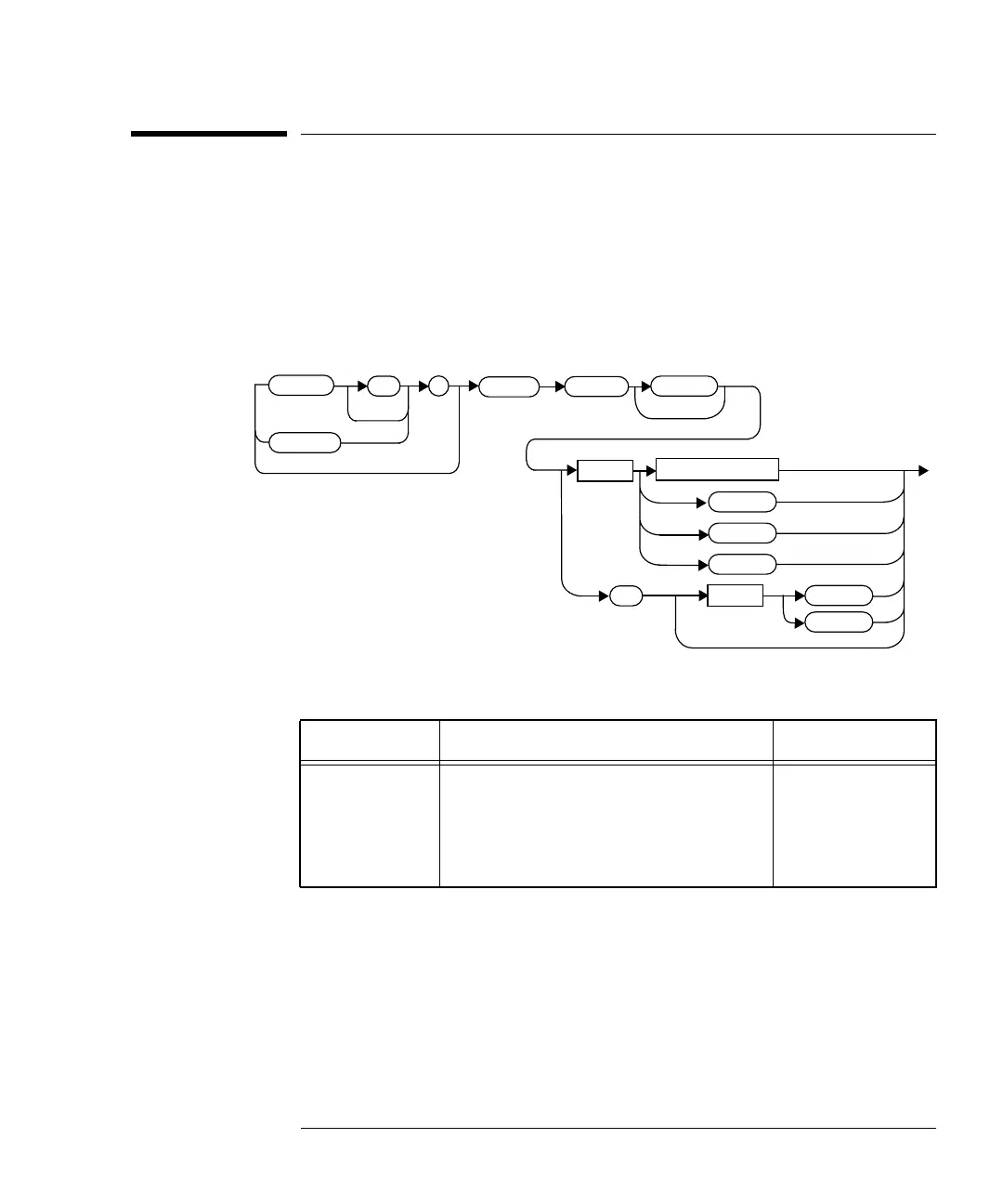

Syntax
Parameters
Example
Reset Condition
On reset, both channels are set to +90.00 dBm (DEF).
Item Description/Default Range of Values
numeric_value A numeric value. The default value, DEF,
is +90.00 dBm. The value for MIN is
-150 dBm. The value for MAX is
+230 dBm.
-150 to +230 dBm
DEF
MIN
MAX
SENS2:LIM:UPP:DATA -20DBM This command enters an upper
limit of -20 dBm for channel B.
:UPP
Space
?
:DATA
numeric_value
DEF
MIN
MAX
MIN
MAX
LIM
Space
SENS
1
SENS2
:
