OUTput Subsystem
OUTPut:TTL[1|2]:STATe <Boolean>
HP E4418B/E4419B Programming Guide 8-7
OUTPut:TTL[1|2]:STATe <Boolean>
This command is used to enable and disable the the rear panel Upper and
Lower window TTL Outputs. When enabled, the TTL Outputs can be used
to determine when a predefined limit is exceeded.

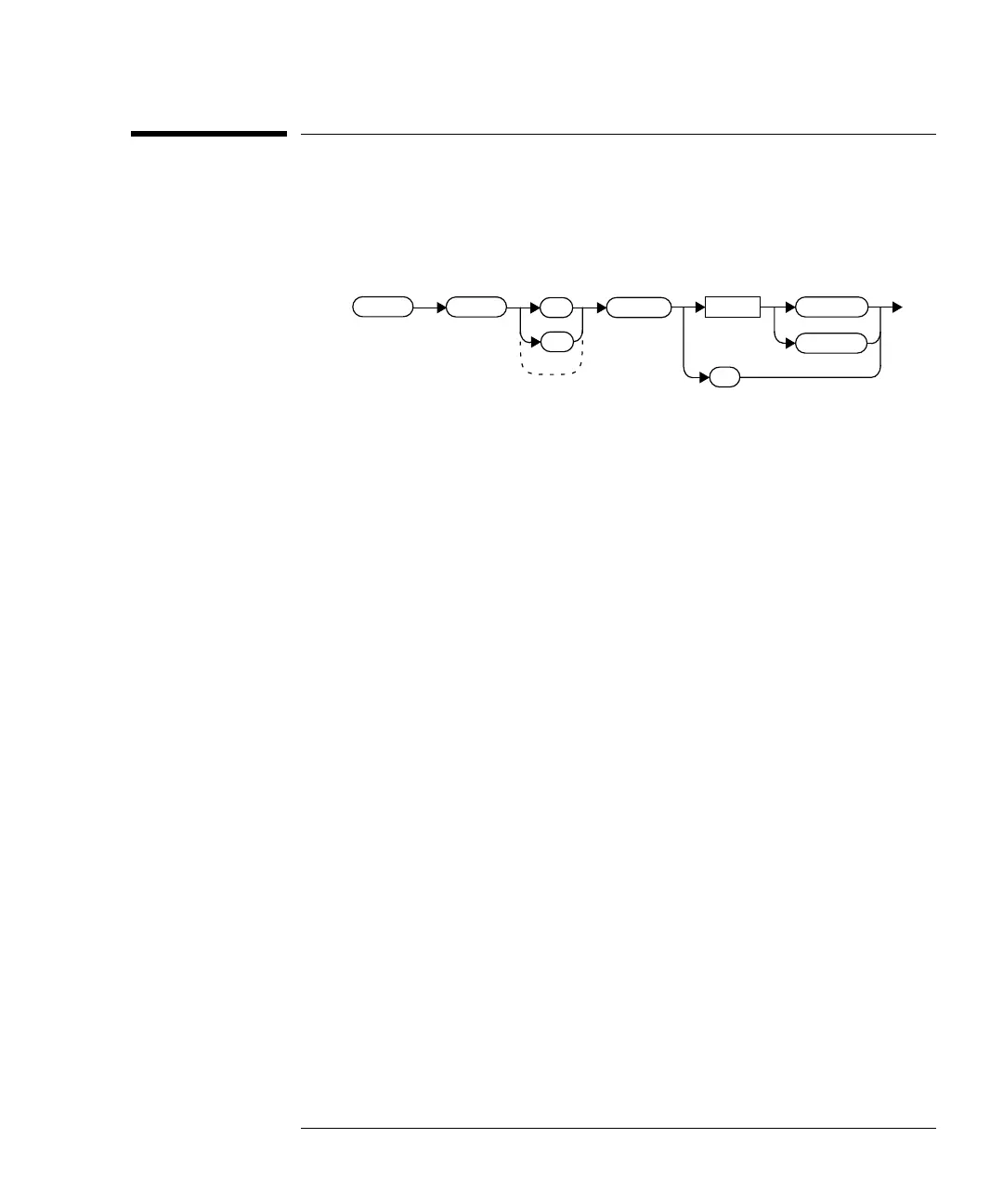

Syntax
Example
Reset Condition
On reset, the TTL outputs are disabled.
Query
OUTPut:TTL[1|2]:STATe?
The query command enters a 1 or 0 into the output buffer indicating
whether or not the TTL output is enabled..
• 1 is returned when the TTL output is enabled.
• 0 is returned when the TTL output is disabled..
Query Example
OUTP:TTL1:STAT 1 This command enables the rear
panel upper window TTL output.
OUTP:TTL1:STAT? This command queries whether or
not the upper window TTL output
is enabled.
OUTP
1
2
:STAT
0|OFF
1|ON
Space
?
:TTL
