Power Meter Remote Operation
Triggering the Power Meter
HP E4418B/E4419B Programming Guide 1-63

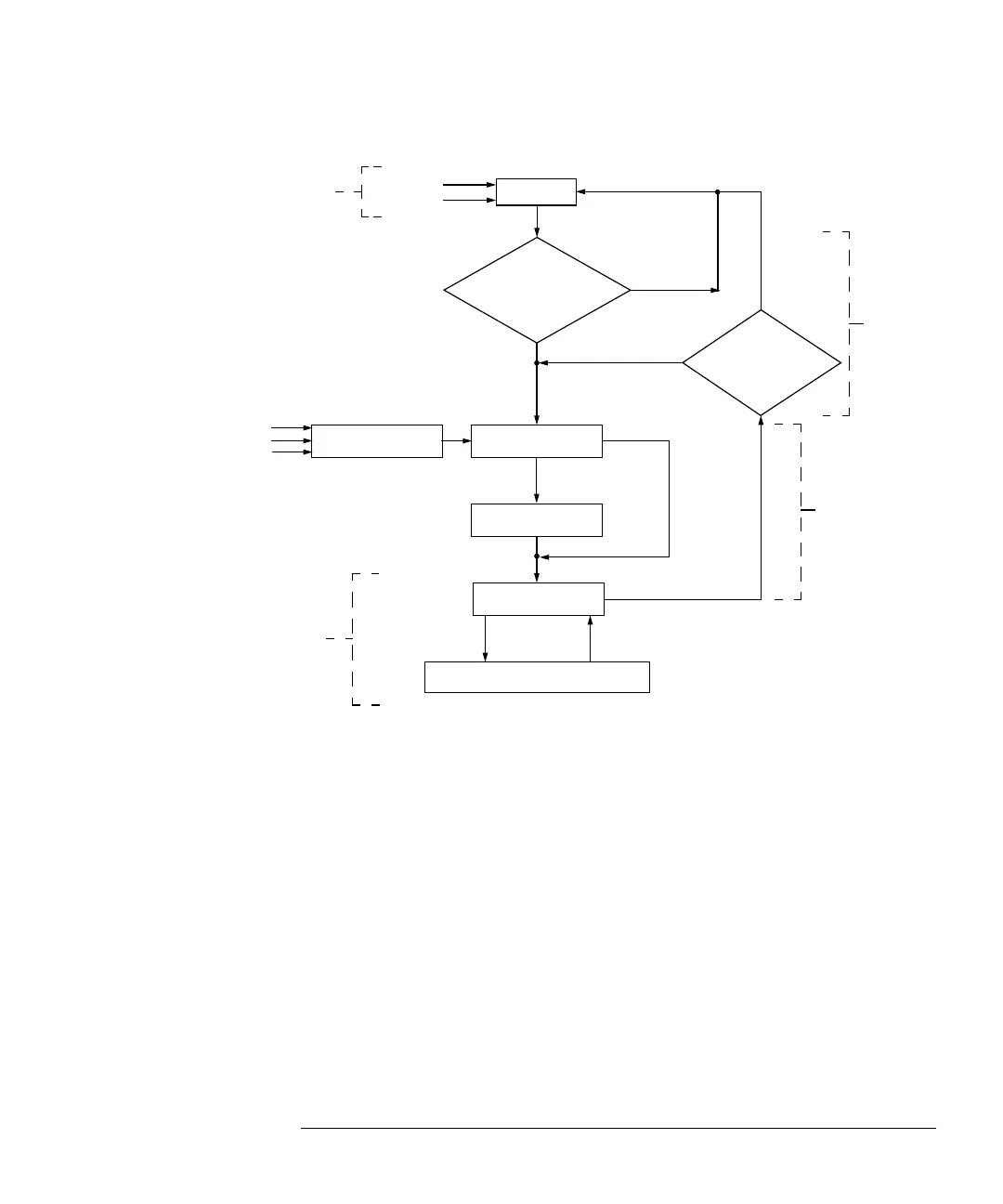

Figure 1-8: Trigger System
Idle State
Turning power on, sending an HP-IB CLEAR, sending a *RST or an
:ABORt forces the trigger system into the idle state. The trigger system
remains in the IDLE state until it is initiated by INITiate:CONTinuous
ON or INITiate:IMMediate. Once one of these conditions is satisfied the
trigger system moves to the initiate state.
:ABORt
Idle State
*RST
Is
INIT:CONT ON
INIT[:IMM]
or
INIT:CONT ON
NO
YES
Wait - for - trigger
state
Wait
TRIG:DEL
TRIGGERED
Power Meter Measurement Actions
TRIG:SOURce
TRIG:SOUR IMM
TRIG:SOUR BUS
TRIG:SOUR HOLD
TRIG:IMMediate
INITIATE
STATE
EVENT
DETECTION
STATE
NO
YES
IDLE
STATE
SEQUENCE
OPERATION
STATE
To Next Page
