prog.book : ch7mem.fm 13 Mon Feb 15 09:24:37 1999
MEMor
y Subsystem
MEMory:FREE[:ALL]?
HP
E4418B/E4419B Programming Guide
7-13
MEMory:FREE[:ALL]?
This query returns the amount of memory free for sensor calibration
tables, frequency dependent offset tables
, and save/recall registers
. The
format of the response is:
<bytes_available>,<bytes_in_use>

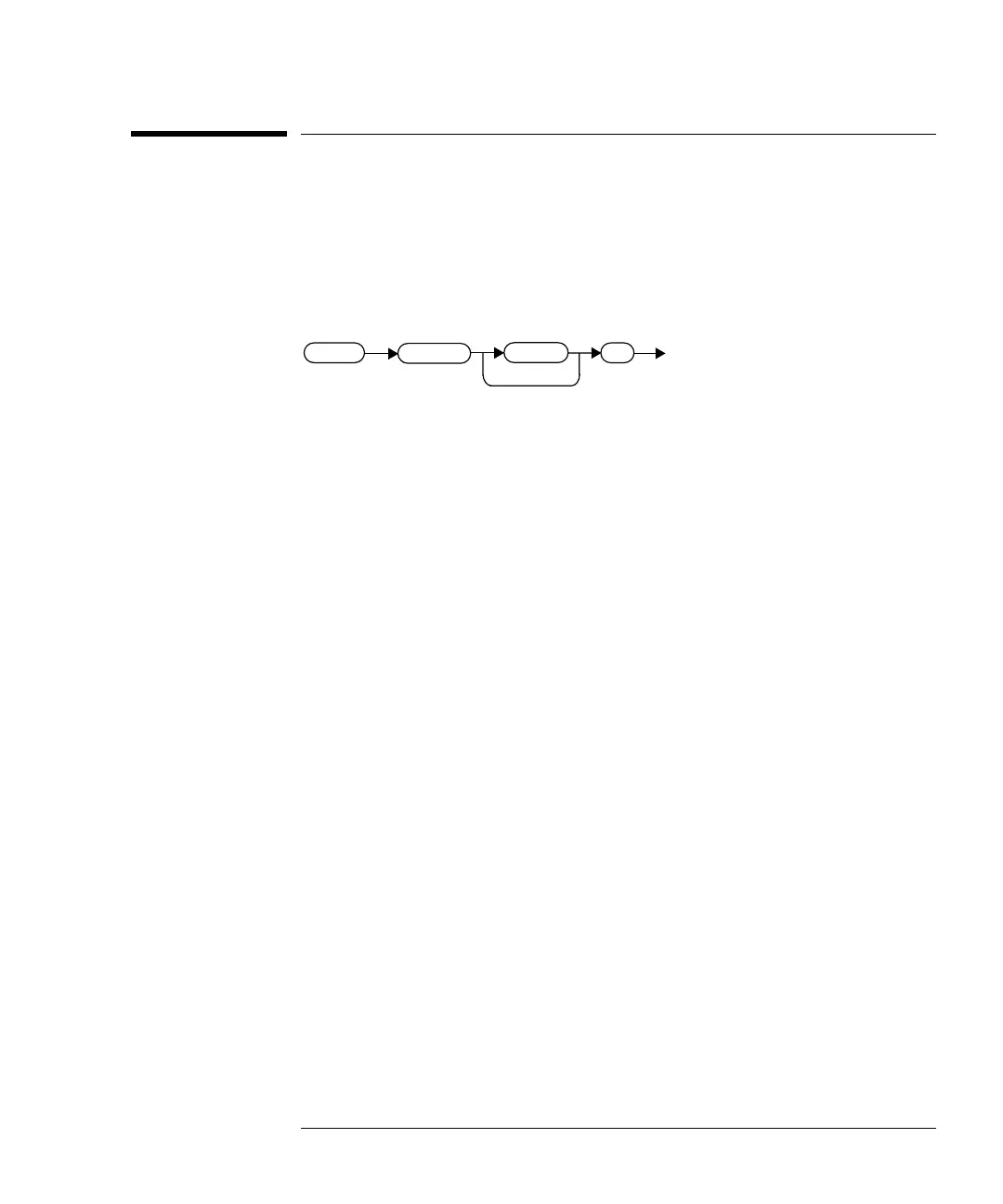

Syntax
Example
MEM:FREE?
This command queries the amount
of free memory in total.
MEM
:FREE
:ALL
?
275
277
