prog.book : ch15ieee.fm 14 Mon Feb 15 09:24:37 1999
IEEE488.2 Command Ref
erence
*OPT?
15-14
HP
E4418B/E4419B Programming Guide
*OPT?
The
*OPT?
query reports the options installed in the power meter and
returns:
" " empty string for a standard instrument
"002" for an option 002 instrument
"003" for an option 003 instrument

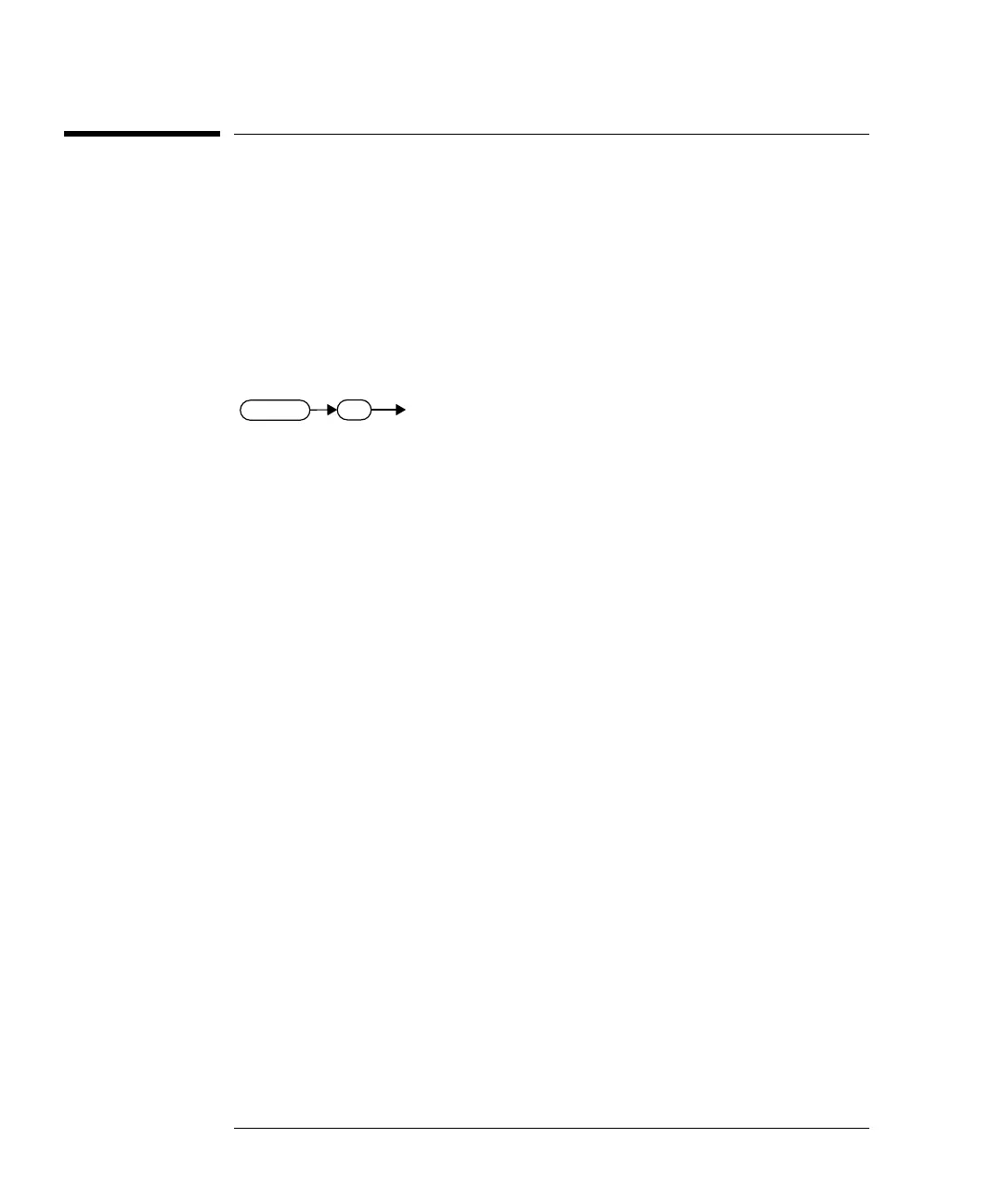

Syntax
*OPT
?
464
466
