prog.book : ch3calc.fm 15 Mon Feb 15 09:24:37 1999

CALCulate Subsystem

CALCulate[1|2]:LIMit:LOWer[:DATA] <mumeric_value>

HP E4418B/E4419B Programming Guide 3-15

CALCulate[1|2]:LIMit:LOWer[:DATA] <mumeric_value>

This command is used to enter a value for the lower test limit for the

speciﬁed window used in the CALCulate[1|2]:LIMit:FAIL? test. The

units used are dependent on the current setting of UNIT:POWer and

CALCulate:RELative:STATe as shown in Table 3-1. When the

measured value is less than the value speciﬁed in

CALCulate[1|2]:LIMit:LOWer[:DATA],

CALCulate[1|2]:LIMit:FAIL? reports a fail. When the measured

value is greater than or equal to the limit, a fail is not reported.

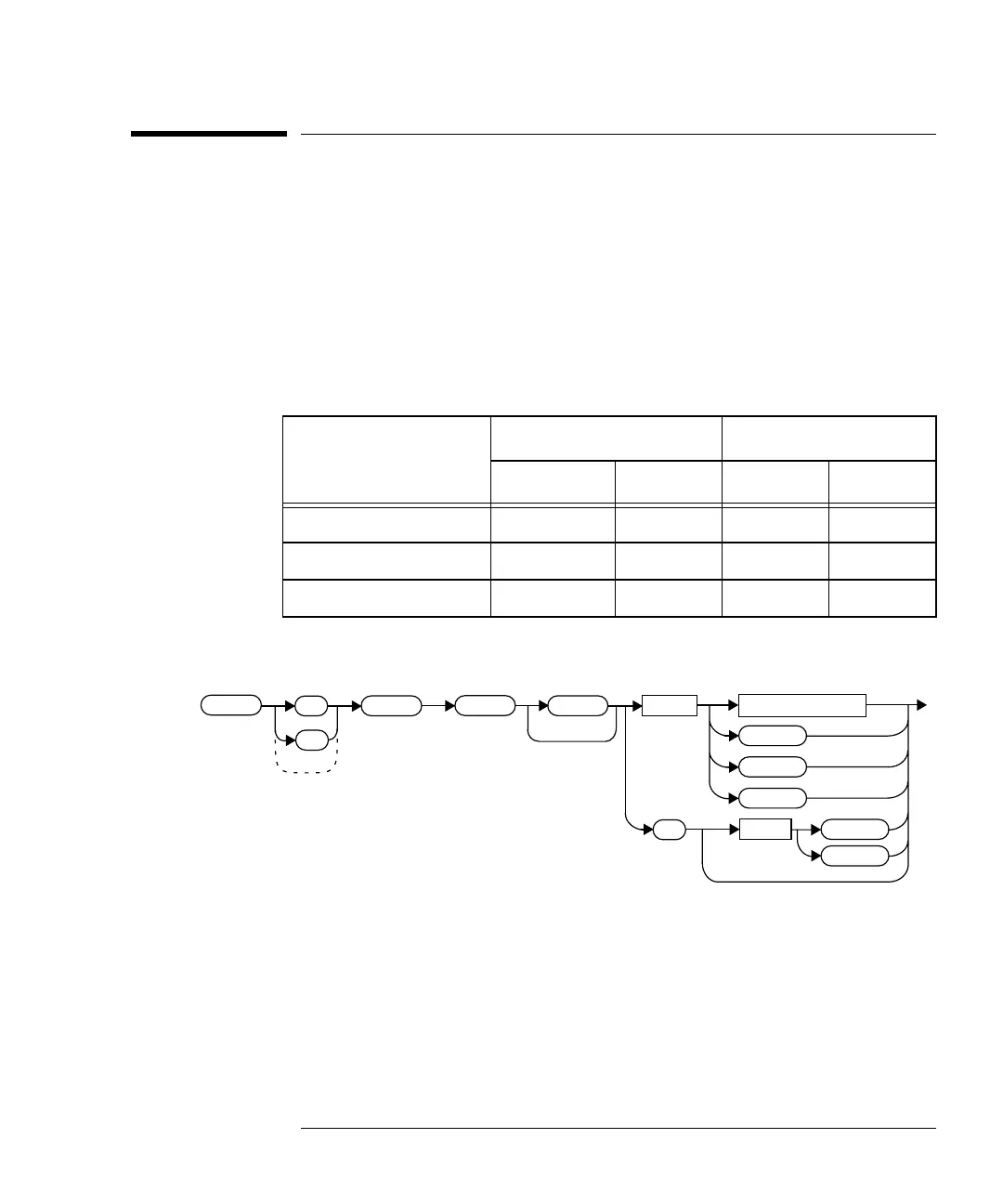

Table 3-1: Measurement Units

Syntax

Measurement

Mode

CALC:REL:STAT OFF CALC:REL:STAT ON

Linear Log Linear Log

Single Channel Watt dBm % dB

Ratio % dB % dB

Difference Watt dBm % dB

Space

numeric_value

DEF

MIN

MAX

MIN

MAX

Space

CALC

:LIM

:LOW

:DATA
