HPE FlexNetwork MSR Series User Manual

143
b. Select the TCP option in the Protocol field.
c. Select the option next to the field in the Global IP Address filed, and then enter 202.38.1.1.
d. Select http from the Global Port list.
e. Enter 10.110.10.1 in the Host IP Address field.
f. Select http from the Host Port list.
g. Click Apply.

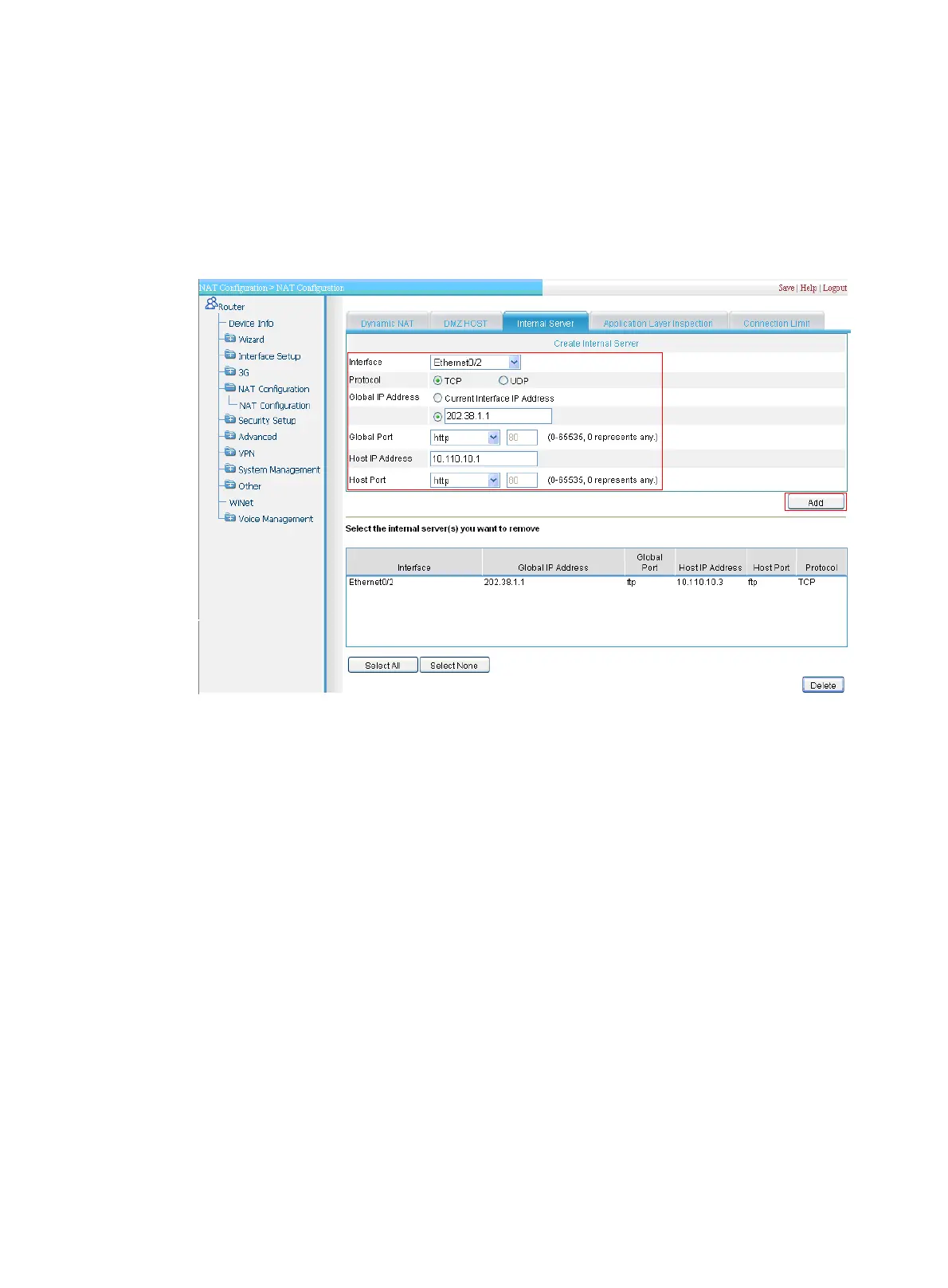

Figure 152 Configuring Web server 1
3. Configure Web server 2:
a. Click Add in the internal server configuration page.
b. As shown in Figure 153, select
Ethernet0/2 from the Interface list.
c. Select the TCP option in the Protocol field.
d. Select the option next to the field in the Global IP Address filed, and then enter 202.38.1.1.
e. Enter 8080 in the Global Port field.
f. Enter 10.110.10.2 in the Host IP Address field.
g. Enter 8080 in the Host Port field.
h. Click Apply.
