162

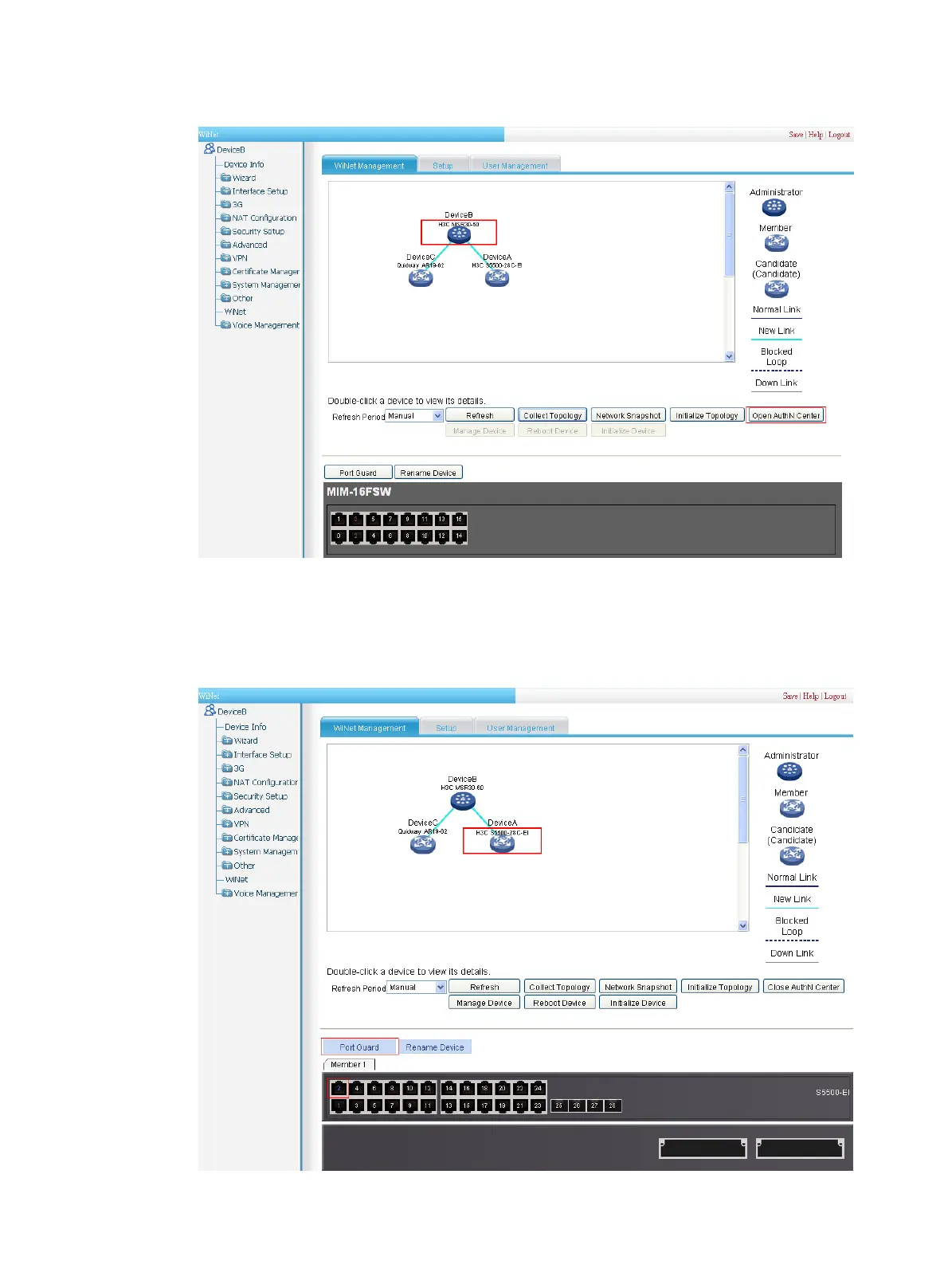

Figure 552 Setting up a RADIUS server

a. Click the WiNet Management tab.

b. Click Open AuthN Center.

# Enable Layer 2 portal authentication on Ethernet 0/2 of Device A.

Figure 553 Enabling Layer 2 portal authentication on Ethernet 0/2 of Device A
