221
1. Configure a local number: specify the local number ID as 2000 and the number as 2000, and
bind the number to line line 1/0 on the local number configuration page.
2. Configure the call route to Router A: specify the call route ID as 1000, the destination number as
1000, and the call route type as SIP, and use a SIP proxy server to complete calls on the call
route configuration page.
3. Configure the call route to Router C: specify the call route ID as 3000, the destination number
as 3000, and the call route type as SIP, and use a proxy server to complete calls on the call
route configuration page.
4. Configure SIP registration: enable register function of the server on the connection properties
configuration page. Select Voice Management > Call Connection > SIP Connection from the
navigation tree to access the connection properties configuration page, then configure the IP
addresses of both the main registrar and the proxy server as 100.1.1.101.
Configure Router C
# Configure a local number and call routes.
1. Configure a local number: specify the local number ID as 3000 and the number as 3000, and
bind the number to line line 1/0 on the local number configuration page.
2. Configure the call route to Router A: specify the call route ID as 1000, the destination number as
1000, and the call route type as SIP, and use a SIP proxy server to complete calls on the call
route configuration page.
3. Configure the call route to Router B: specify the call route ID as 2000, the destination number as
2000, and the call route type as SIP, and use a proxy server to complete calls on the call route
configuration page.
4. Configure SIP registration: enable register function of the server on the connection properties
configuration page. Select Voice Management > Call Connection > SIP Connection from the
navigation tree to access the connection properties configuration page, then configure the IP
addresses of both the main registrar and the proxy server as 100.1.1.101.
# Configure the DTMF transmission mode as out-of-band transmission.

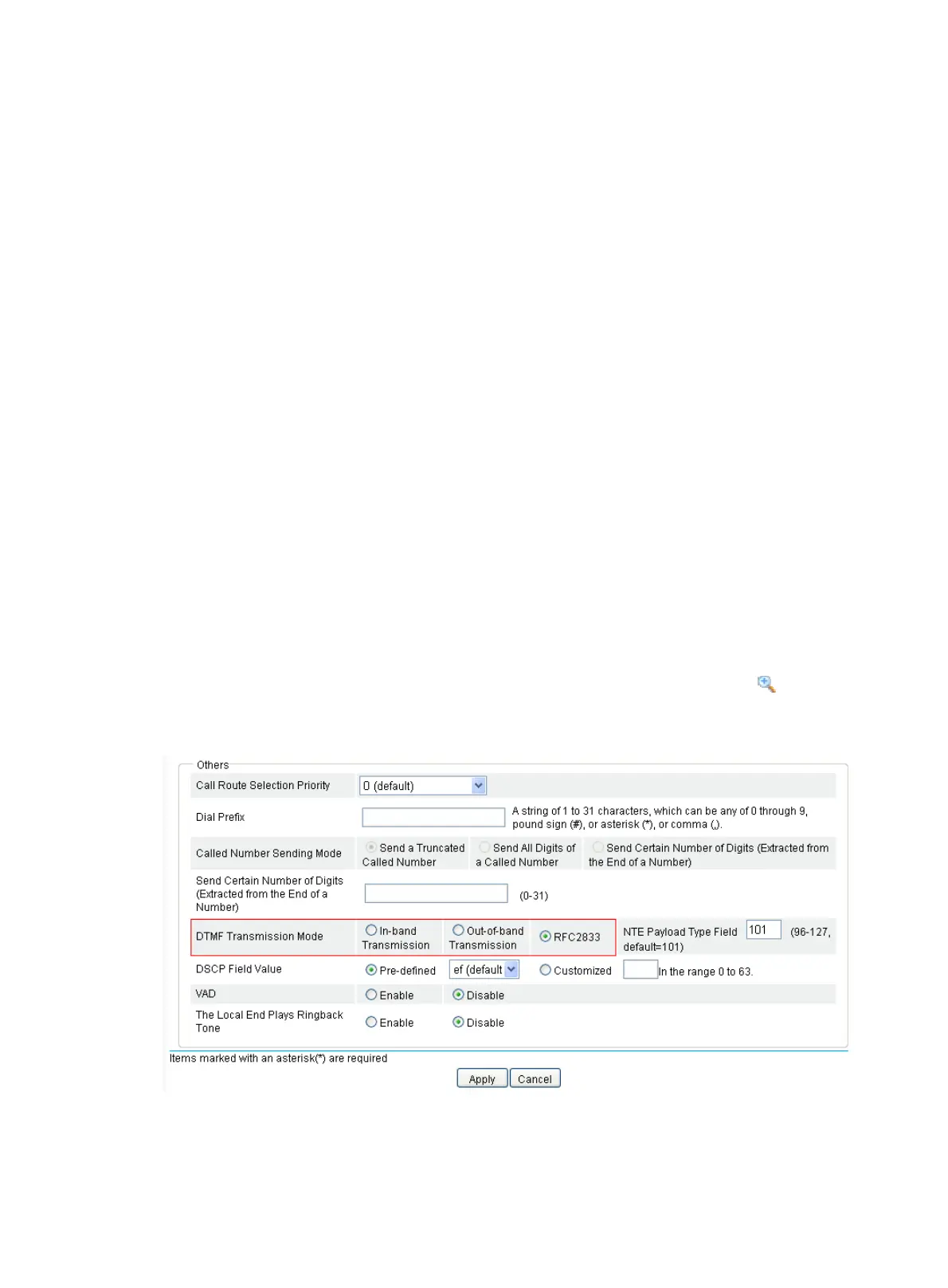

5. Select Voice Management > Call Route from the navigation tree and click the icon of call
route 1000 to access the advanced settings page as shown in Figure 607.
Figure 607
Con
figuring DTMF transmission mode
6. Select RFC2833 for DTMF Transmission Mode.
7. Click Apply.
# Enable the feature service.
