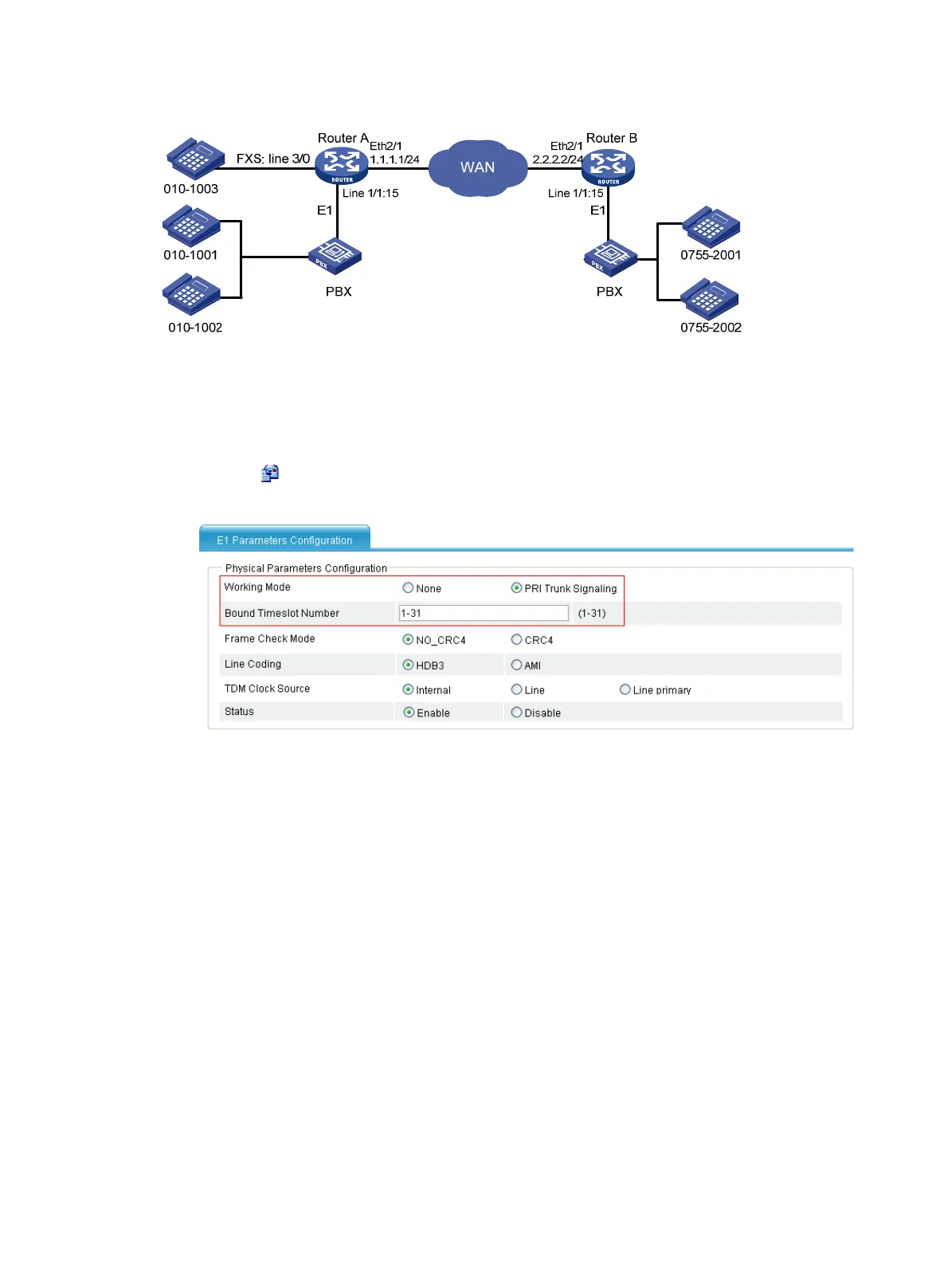

Figure 726 Network diagram
Configuration procedure
1. Configure Router A:
# Configure an ISDN PRI group.
Select Voice Management > Digital Link Management from the navigation tree, and then
click the icon of E1 1/1 to access the E1 parameters configuration page.
Figure 727 E1 parameters configuration page
a. Select the PRI Trunk Signaling option. For other options, use the default settings.
b. Click Apply.
# Configure local numbers and call routes.
c. Configure a local number in the local number configuration page: The number ID is 1003,
the number is 0101003, and the bound line is 3/0.
d. Configure a call route in the call route configuration page: The call route ID is 1001, the
destination number is 0101001, and the trunk route line is 1/1:15. In addition, to select the
Send All Digits of a Called Number option in the Called Number Sending Mode area
when you configure the advanced settings of this call route.
e. Configure a call route in the call route configuration page: The call route ID is 1002, the
destination number is 0101002, and the trunk route line is 1/1:15. In addition, select the
Send All Digits of a Called Number option in the Called Number Sending Mode area
when you configure the advanced settings of this call route.
f. Configure a call route in the call route configuration page: The call route ID is 0755, the
destination number is 0755...., and the call route type is SIP, the SIP routing type is IP
routing, and the destination address is 2.2.2.2.
2. Configure Router B.
# Configure an ISDN PRI group.
