342
Select Voice Management > Digital Link Management from the navigation tree, and then
click the icon of E1 1/1 to access the E1 parameters configuration page.

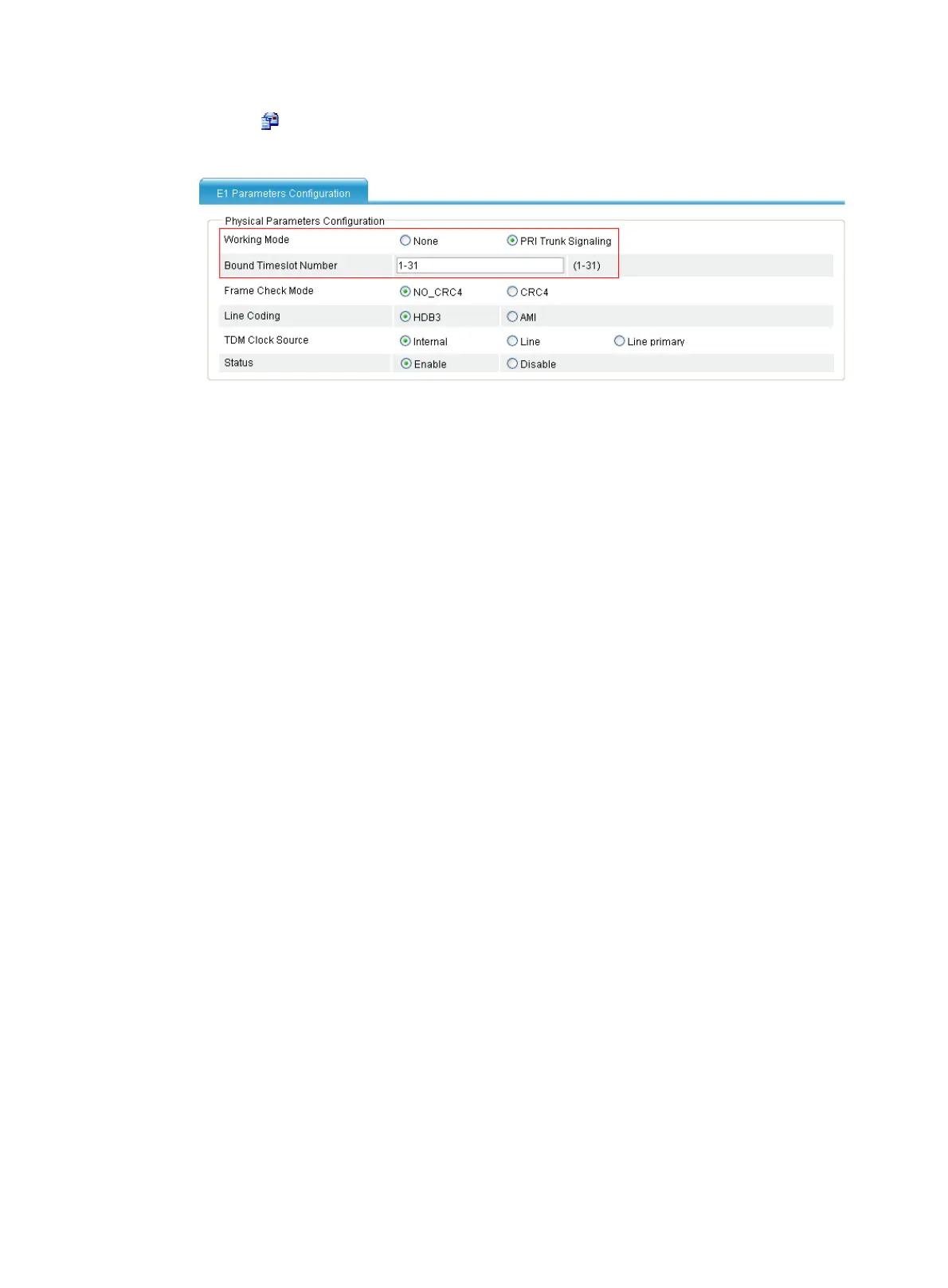

Figure 728 E1 parameters configuration page
a. Select the PRI Trunk Signaling option. For other options, use the default settings.
b. Click Apply.
# Configure call routes.
c. Configure a call route in the call route configuration page: The call route ID is 2001, the
destination number is 07552001, and the trunk route line is 1/1:15. In addition, select the
Send All Digits of a Called Number option in the Called Number Sending Mode area if
you configure the advanced settings of this call route.
d. Configure a call route in the call route configuration page: The call route ID is 2002, the
destination number is 07552002, and the trunk route line is 1/1:15. In addition, select the
Send All Digits of a Called Number option in the Called Number Sending Mode area
when you configure the advanced settings of this call route.
e. Configure a call route in the call route configuration page: The call route ID is 010, the
destination number is 010...., the call route type is SIP, the SIP routing mode is IP routing,
and the destination address is 1.1.1.1.
Verifying the configuration
• Telephones in City A and City B can communicate with each other.
• Select Voice Management > Statistics > Call Statistics from the navigation tree to access the
Active Call Summary page, and you can view the statistics of active calls.
• Select Voice Management > Digital Link Management from the navigation tree, and then
click the name of the target digital link line 1/1:15 to access the page displaying the link state.
