363

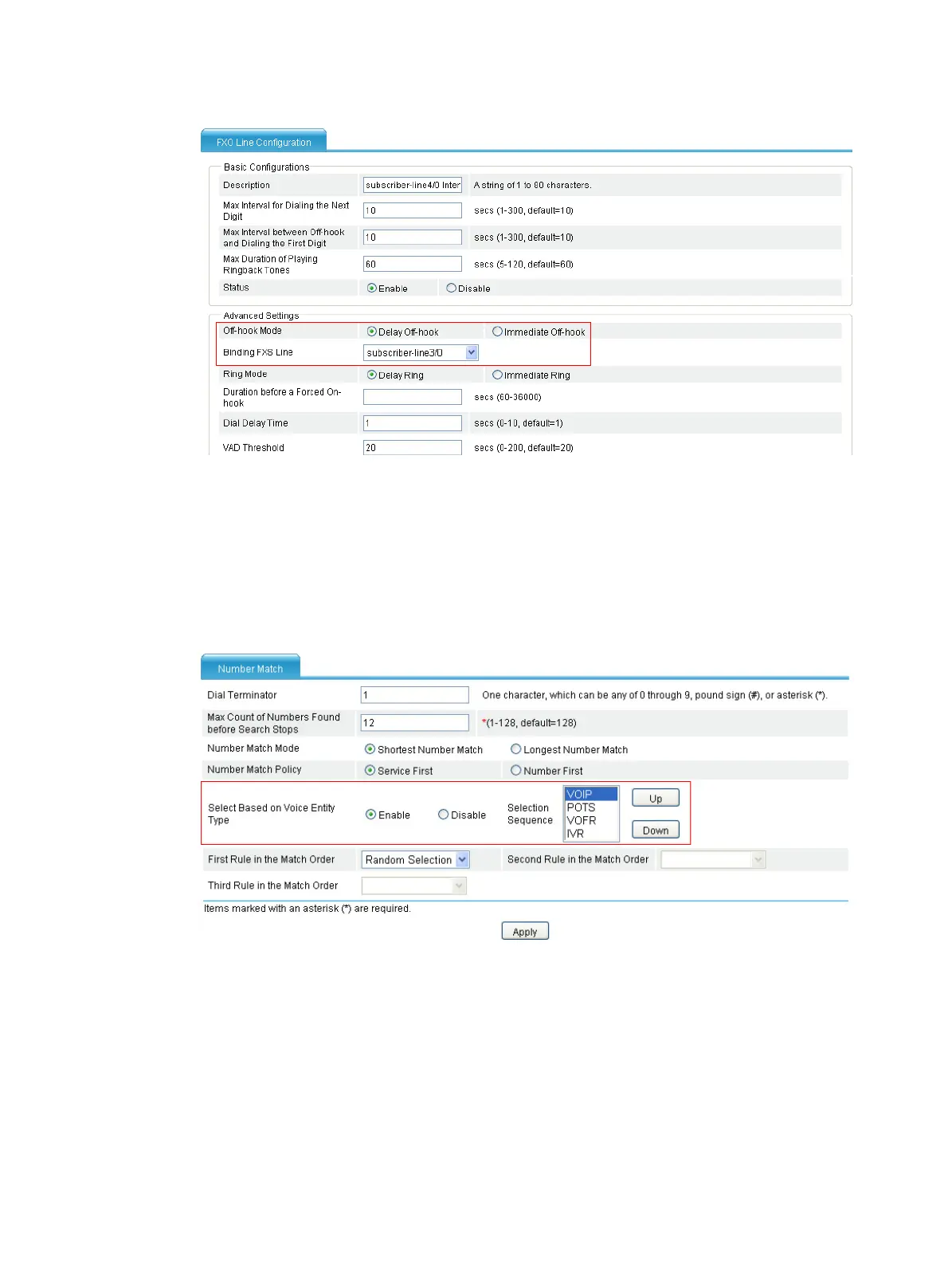

Figure 745 FXO line delay off-hook binding configuration page
b. Select the Delay Off-hook option.
c. Select subscriber-line 3/0 from the Binding FXS Line list.
d. Click Apply.
# Configure the system to first select VoIP entity.
e. Select Voice Management > Dial Plan > Number Match from the navigation tree to
access the number match configuration page.
Figure 746 Entity type selection sequence configuration page
b. Select Enable in the Select Based on Voice Entity Type area.
c. Configure the order of the voice entities in the Selection Sequence box: the first is VOIP,
the second is POTS, the third is VoFR, and the last is IVR.
d. Click Apply.
2. Configure Router B:
# Configure a local number and two call routes.
a. Configure a call route in the call route configuration page: The call route ID is 10, the
destination number is 010…., and the destination address is 192.168.0.71.
b. Configure a local number in the local number configuration page: The number ID is
2101002, the number ID is 2101002, and the bound line is 3/0.
