3. Operation of CON Related Controllers
131

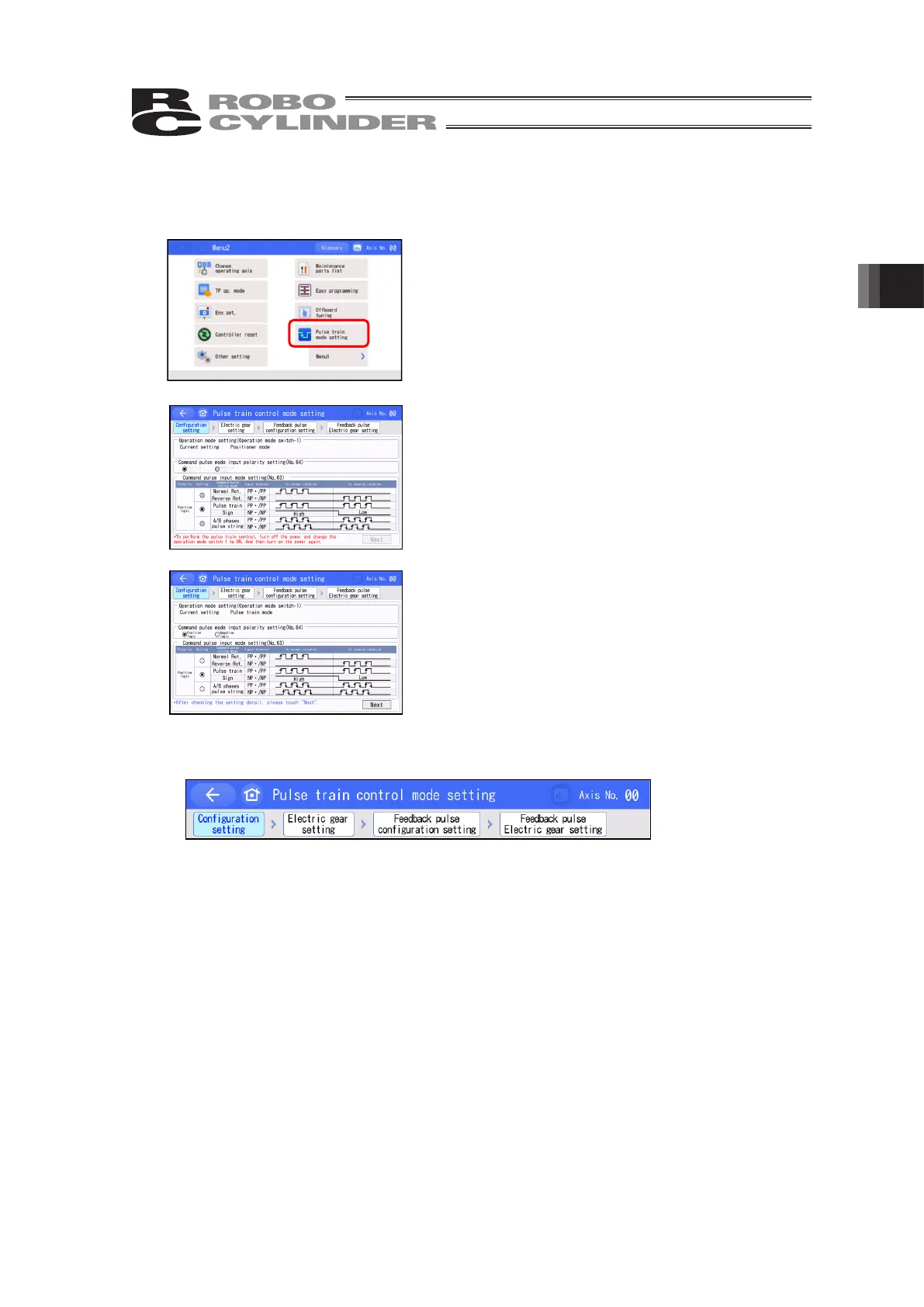

3.23 Pulse Train Mode Setting
Establish the settings to conduct the pulse-train control.
Touch [Pulse train mode setting] in Menu 2 screen.
The icon will not be shown for the controllers that are not
applicable for the pulse-train control.
A message in red will appear if the setting is not done
appropriately for the pulse-train control mode. Follow the
massage for appropriate action.
(Shown in the figure on the left is the display for SCON)
For the pulse-train control mode, pulse-train control mode
setting screen is displayed.
In the pulse-train control mode setting, set the parameters necessary for control in four screens.
[Configuration setting] -------------------------------- [Refer to 3.23.1]
↓ ↓
[Electric gear setting] -------------------------------- [Refer to 3.23.2]
↓ ↓
[Feedback pulse configuration setting] ---------- [Refer to 3.23.3]
↓ ↓
[Feedback pulse Electric gear setting] ---------- [Refer to 3.23.4]
