5. Operation of MEC Related Controllers
270

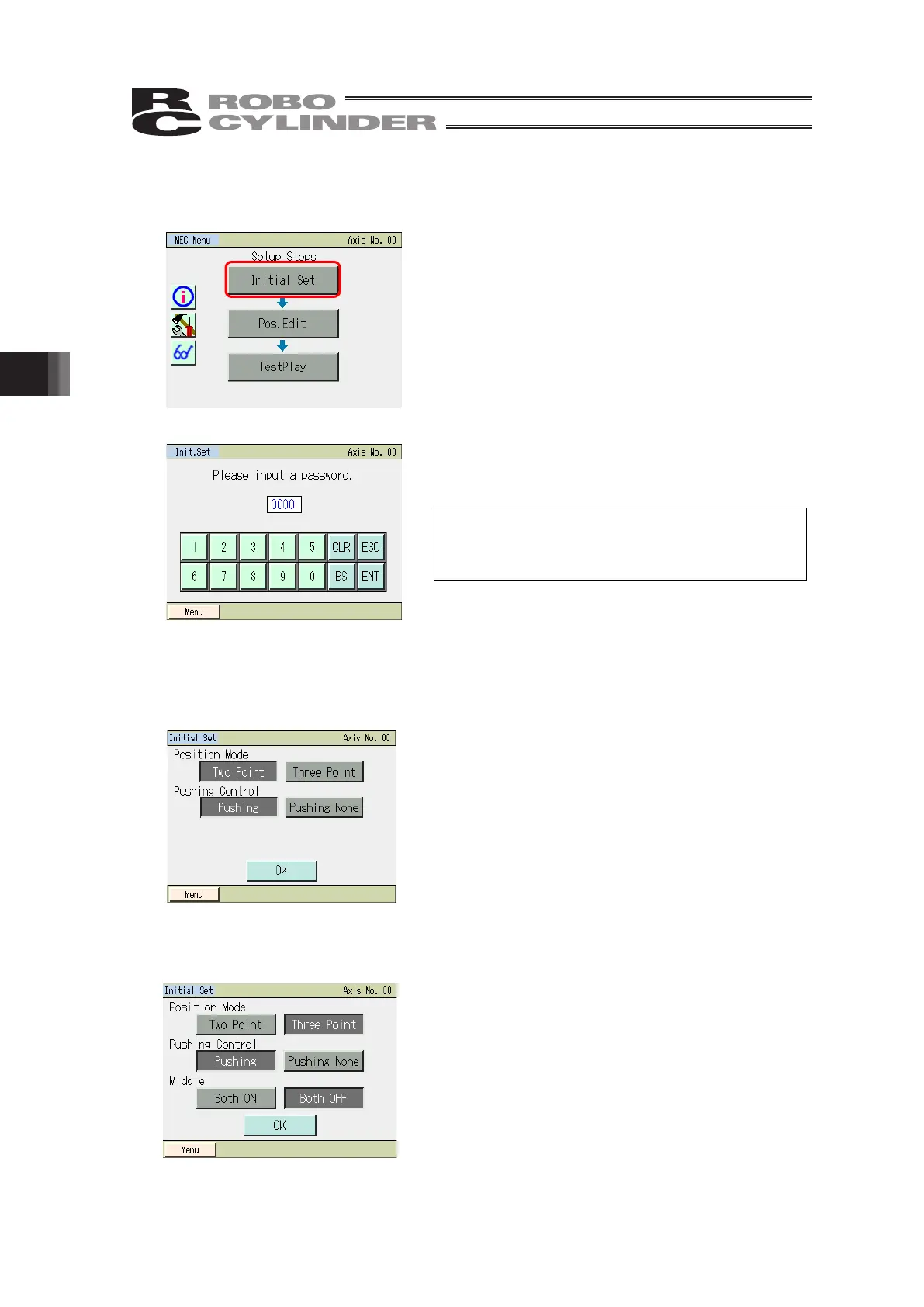

5.7 Initial Setting
Select whether to stop at 2 points or 3 points.
Touch [Initial Set] on the MEC menu screen.
The password entry screen appears if the system password is other than “0000.”
Enter the password and touch [ENT].
The default system password is “5119”.
For how to change the system password, refer
to 5.11, “Maintenance – Parameters [Change
S
y
stem Password].”
If the valid password has been entered, the display switches to the initial setting screen.
Stopping at 2 points
Select and touch either [Two Point] or [Three Point]. To
perform positioning operation, select and touch
[Pushing None]. To perform push-motion operation,
select and touch [Pushing].
To stop at 3 points, select [Both OFF] or [Both ON] as
the position specification method.
(Note) Take note that if push-motion operation is
performed and therefore [Pushing None] is
selected, the completion signal will not be
output.
* If [Pushing None] is selected, LS0 and LS1 (LS2) will
be used as output signals. If [Pushing] is selected,
PE0 and PE1 (PE2) will be used as output signals.
Stopping at 3 points
