5. Operation of MEC Related Controllers
275

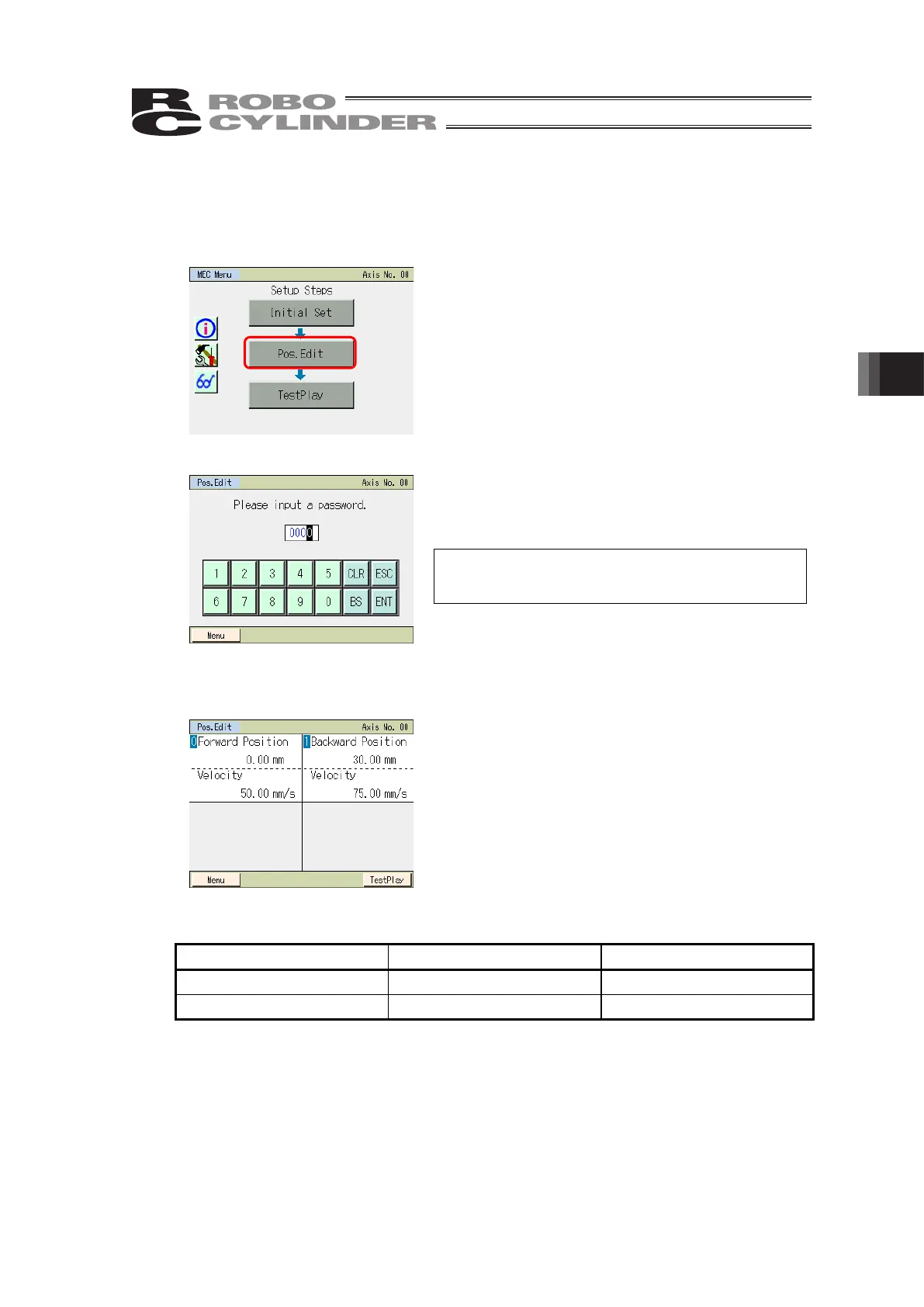

5.8 Position Setting (Position Data Setting and Manual Axis operation
(Jogging, Inching))
The position, push force, push band and other position data are set. You can move the
actuator by jogging or inching.
Touch [Pos.Edit] on the MEC menu screen.
The password entry screen appears if the position data edit password is other than “0000.”
Enter the password and then touch [ENT].
A position data edit password can be set in the
“position data edit password” field of the parameter
edit screen.
If the valid password has been entered, the display switches to the position setting list screen.
The displayed items vary depending on the operation pattern.
The screen shown to the left is an example of
stopping at 2 points.
The set value of each position is shown.
Touch the position you want to set.
Touch [Menu] to return to the MEC menu screen.
Number of positions to be set
Operation pattern Movement Number of positions to be set
Stopping at 2 points Move between 2 points 2
Stopping at 3 points Move among 3 points 3
