3. Operation of CON Related Controllers
152

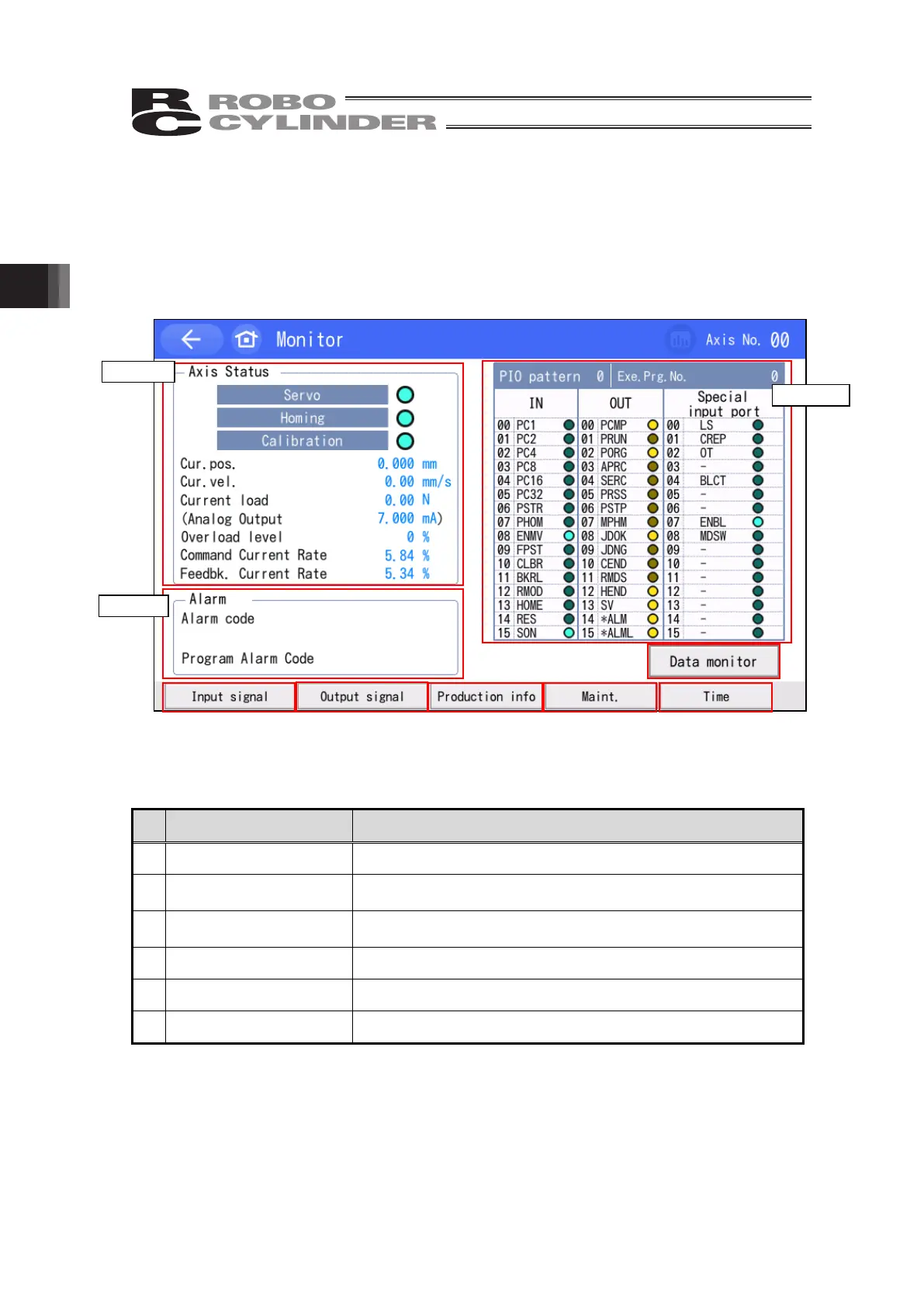

3.26.1 Press Program Monitor
3.26.1.1 Press Program Monitor Screen
Touch [Monitor] icon on the Menu 1 screen.
It shows the I/O status and current position of the connected controller.
Press program Monitor Screen Button List
Botton Name Explanations
1) Data monitor Data monitor screen opens. [Refer to 3.26.1.2]
2) Input signal
It shows the term explanation window for input signals.
[Refer to 3.26.1.3]
3) Output signal
It shows the term explanation window for output signals.
[Refer to 3.26.1.4]
4) Production info Productrion information screen opens. [Refer to 3.17]
5) Maint. Maintenance screen opens. [Refer to 3.9.2]
6) Time It shows the controller clock setting window.[Refer to 3.9.3]
1)
2
)
3
)
4
)
5
)
6
)
13, 14
1 to 12
15 to 19
