7. Gateway Parameter Setting Tool
386

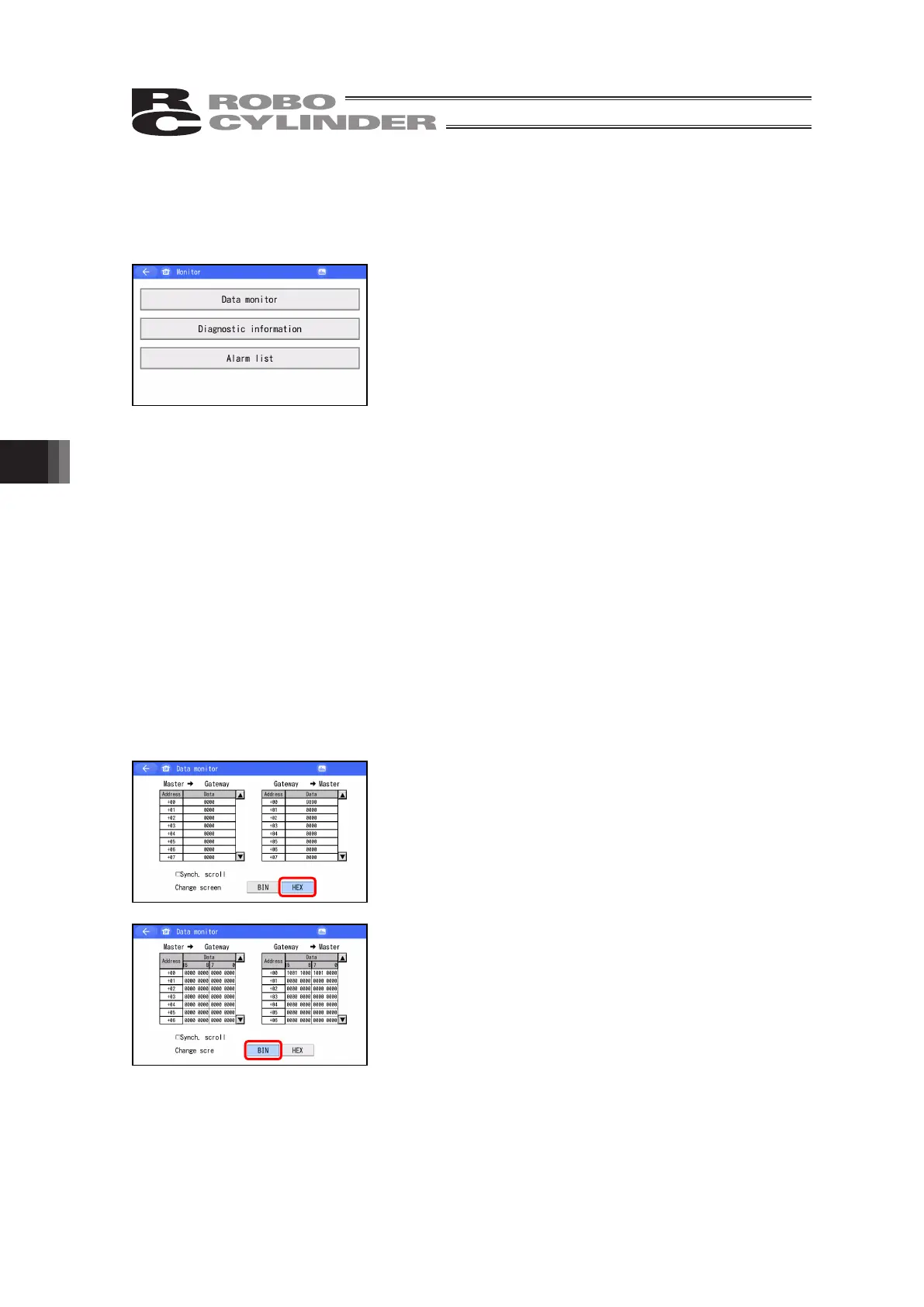

7.4 Monitor Menu
Touch Monitor button in the gateway menu window to show the monitor screen.
Monitor Screen
There are three types of menu in the monitor screen. Select one of them and touch it. The
screen goes to the touched menu.
Data monitor : Received data and sent data are displayed. [Refer to 7.4.1 Data
Monitor]
Diagnosis information : Number of communication error occurrence and number of
emergency stop detection are displayed. [Refer to 7.4.2 Diagnosis
Information]
Alarm list : The alarm list is displayed. [Refer to 7.4.3 Alarm List]
7.4.1 Data Monitor
Touch [Monitor] in the gateway menu screen → [Data monitor] to show the data monitor
screen.
Data monitor Screen
The data that the gateway unit has received from the host
(master) and the data sent back to the host (master) are
displayed.
Data is shown in hexadecimal numbers when [HEX] button is
on.
The data switches to binary number display if touching [BIN]
button.
