IAI TB-02 - Network Data Monitor Screen

3. Operation of CON Related Controllers
47

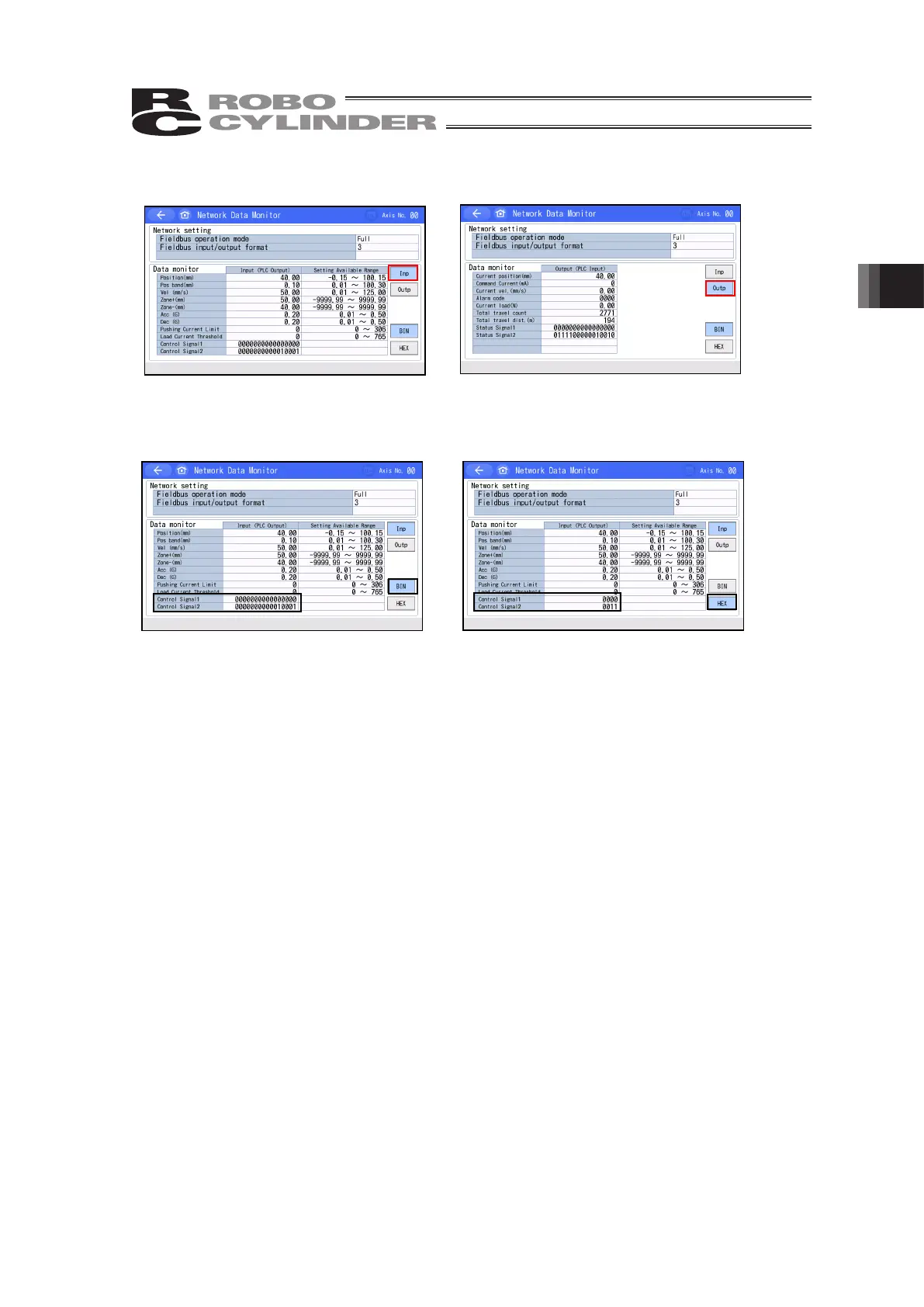

3.9.1.5 Network Data Monitor Screen
Touch [Input] button and the input value should be displayed on the data monitor.
Touch [Output] button and the output value should be displayed on the data monitor.
Values in “Control Signal 1” and “Control Signal 2” of input and “Status Signal 1” and “Status
Signal 2” of output should be displayed in the binary numbers or hexadecimal numbers.
Touch [Binary] button and the values are displayed in binary numbers.
Touch [Hexadecimal] button and the values are displayed in hexadecimal numbers.
[Displays]
 Network setting - - - - - - - - - - - - - - - [Refer to 3.9.1.5 (1)]
 Data monitor (Positioner Type) - - - - - [Refer to 3.9.1.5 (2)]
 Data monitor (Servo Press Type) - - - - [Refer to 3.9.1.5 (3)]
