7. Gateway Parameter Setting Tool
387

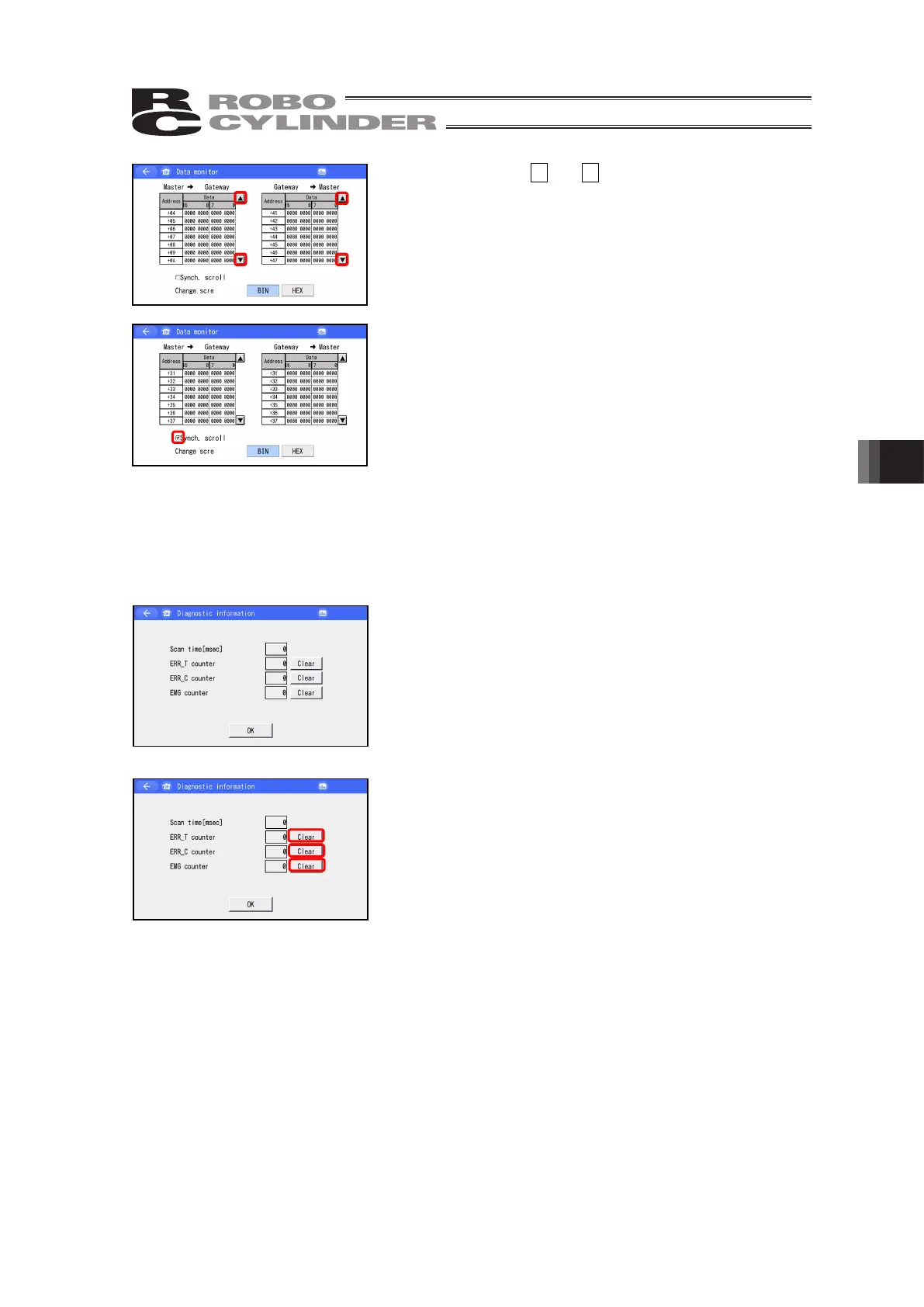

Touch the scroll keys ▲ and ▼ to change the displayed
address.
Check on Synch. scroll and the sent and received data can be
scrolled together.
7.4.2 Diagnosis Information
Touch [Monitor] in the gateway menu screen → [Diagnosis information] to show the diagnosis
information screen.
Diagnosis Information Screen
Information of scan time, number of occurrence times of
communication error (ERR_T and ERR_C) and number of
detection times for emergency stop (EMG) is displayed.
Touch [OK] button, and the screen returns to Monitor screen.
Touch [Clear] button on each counter, and the value goes
back to 0.
