3. Operation of CON Related Controllers
33

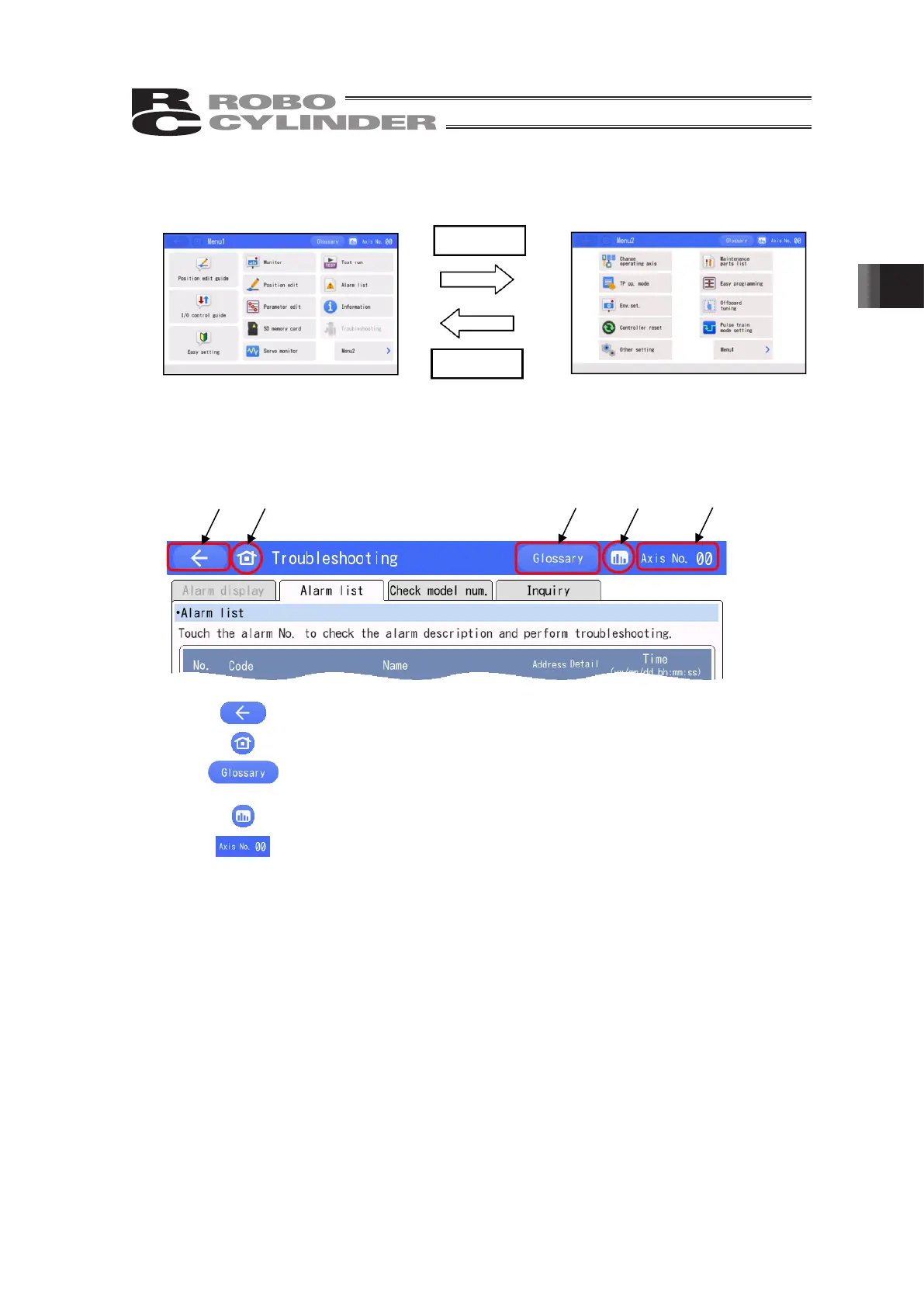

3.5 Menu Selection
Menu 1 Menu 2
Two menu selection screens, Menu 1 and Menu 2, are available.
Touching [Menu2] on the Menu 1 screen changes the display to the Menu 2 screen.
Touching [Menu1] on the Menu 2 screen changes the display to the Menu 1 screen.
1) 2) 3) 4) 5)
1) Return Button : Returns to Previous Screen
2) Home Button : Returns to Menu 1 Screen
3) Glossary Button : Shows the Explanation Screen for Special
Terms
4) Monitor Button : Opens the Monitor Screen
5) Change operation axis Button : Opens the Change operation axis Screen
There are twelve types of menu in Menu 1 and nine types in Menu 2. Select one of them
and touch it. The screen goes to the touched menu.
Menu 1 list
Position edit guide Explains how to input position data and how to make a trial run
in two-way communication style using the actual position data
edit screen.
[Refer to 3.6 Position Edit Guide]
I/O control guide Explains with actual operation how to perform positioning
operation by I/O control when PIO Pattern is set to 0 in two-way
communication style. [Refer to 3.7 I/O Control Guide]
Easy setting Conducts data setting necessary for the requested operation
from the sample program and then makes a trial operation in
order in two-way communication style. [Refer to 3.8 Simple
Program Setting]
Monitor Displays the actuator status, I/O signal status, maintenance
information and manufacturing information. [Refer to 3.9
Monitor]
Menu 2
Menu 1
