3.25.4 Operation to Save Data
3.25.4.1 How to Save Waveform Data

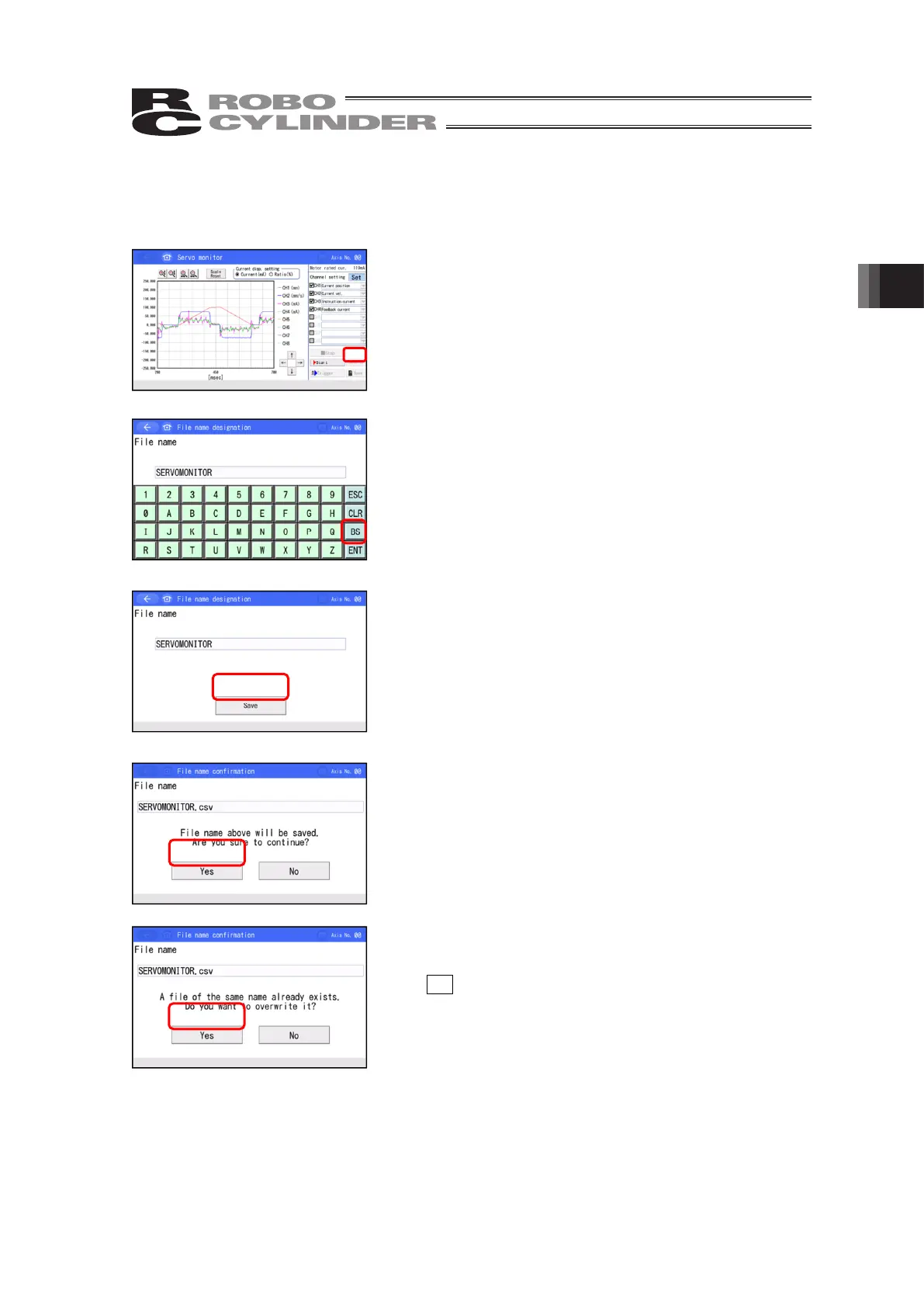

Insert a Secure Digital memory card.
Touch [Save] button while monitoring is stopped.
The file name indication screen opens. Input a file name and
touch [ENT] button.
Touch [Save] button.
The file name confirmation screen pops up.
Touch [Yes] button.
Save the data, and return to the servo monitor screen.
In case there is a file with the same name exists, overwriting
confirmation window appears.
Touch Yes button if it is allowed to overwrite the old.
Save the data, and return to the servo monitor screen.
Domain to Save Data (cannot be changed)
The domain that the servo monitor data is saved is the folder stated below in a Secure Digital
memory card.
\TB_CON\MonitorData\FileName.csv
