4. Operation of SEP Related Controllers
194

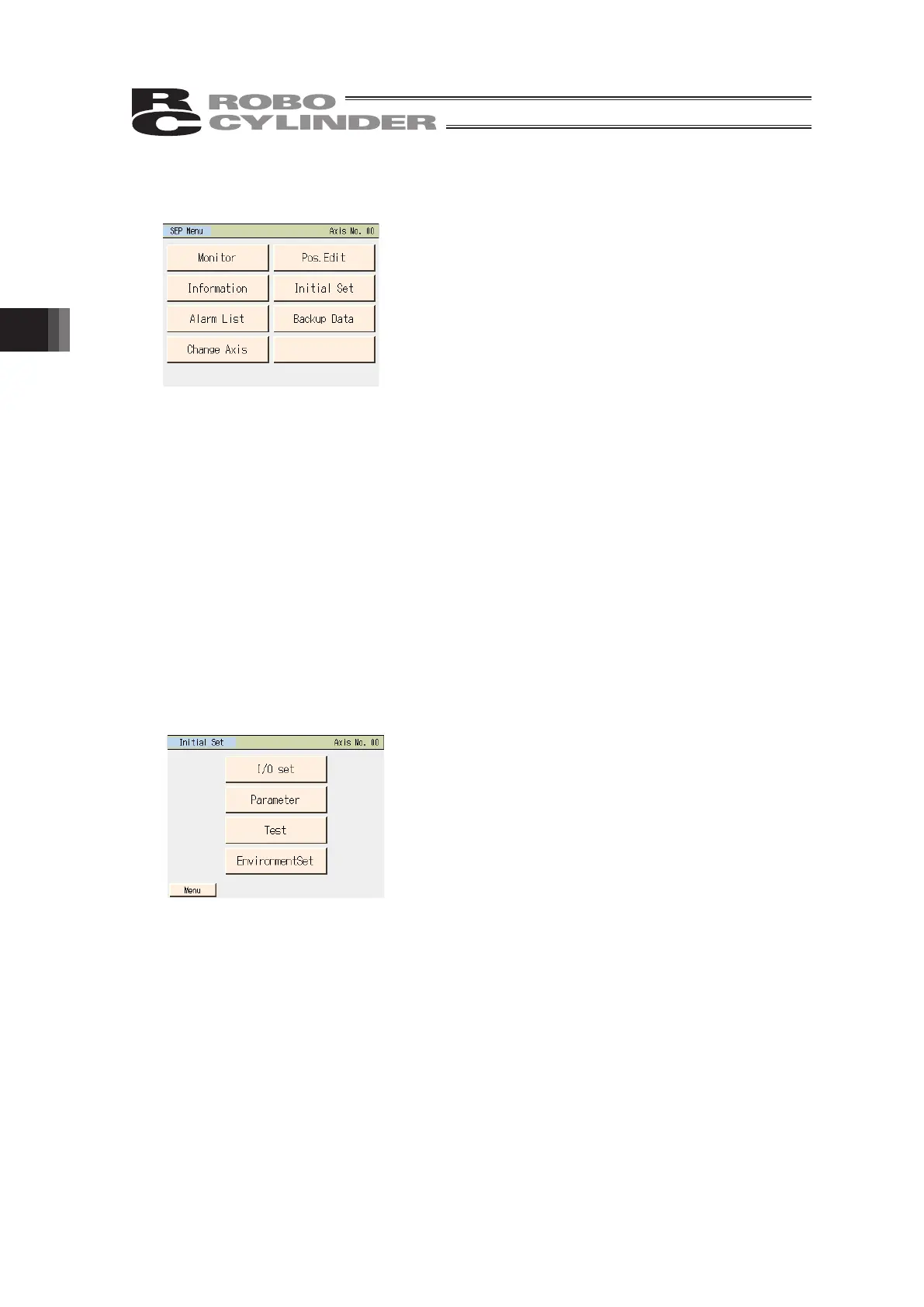

4.6 Menu Selection
SEP menu
The SEP menu has seven items. Select and touch one of them.
The screen changes to the one corresponding to the menu item you have touched.
Menu list
 Monitor Display the controller status. [Refer to 4.7, “Monitor.”]
 Information Display the operation pattern, version and other information.
[Refer to 4.8, “Information.”]
 Alarm List Display alarm details. [Refer to 4.9, “Alarm List.”]
 Change Axis Select the controller axis to connect the touch panel teaching
pendant to. [Refer to 4.5, “Changing Operating Axis.”]
 Pos. Edit Set the position, push power, push band, etc. Move by jogging.
[Refer to 4.10, “Position Setting.”]
 Backup Data Transfer data between the touch panel teaching pendant and
controller. [Refer to 4.15, “Data Backup.”]
 Initial Set
Touch [Initial Setting], and the screen goes to the initial setting menu screen which is the next
selection screen.
There are four types of menu in the initial setting menu screen. Select one of them and touch it.
The screen goes to the touched menu.
Touch Menu to return to the previous SEP menu screen.
Initial setting menu list
 I/O Set Select an operation pattern (PIO pattern 0 to 5), set an operation
mode (single solenoid, double solenoid), etc. [Refer to 4.11, “I/O
Setting.”]
 Parameter Set parameters such as the default positioning band. [Refer to
4.12, “Parameters.”
 Test Perform I/O tests and operation tests for axis movement. [Refer
to 4.13, “Test.”]
 EnvironmentSet Set the environment such as touch tone. [Refer to 4.14,
“Environment Setting.”]
