3. Operation of CON Related Controllers
154

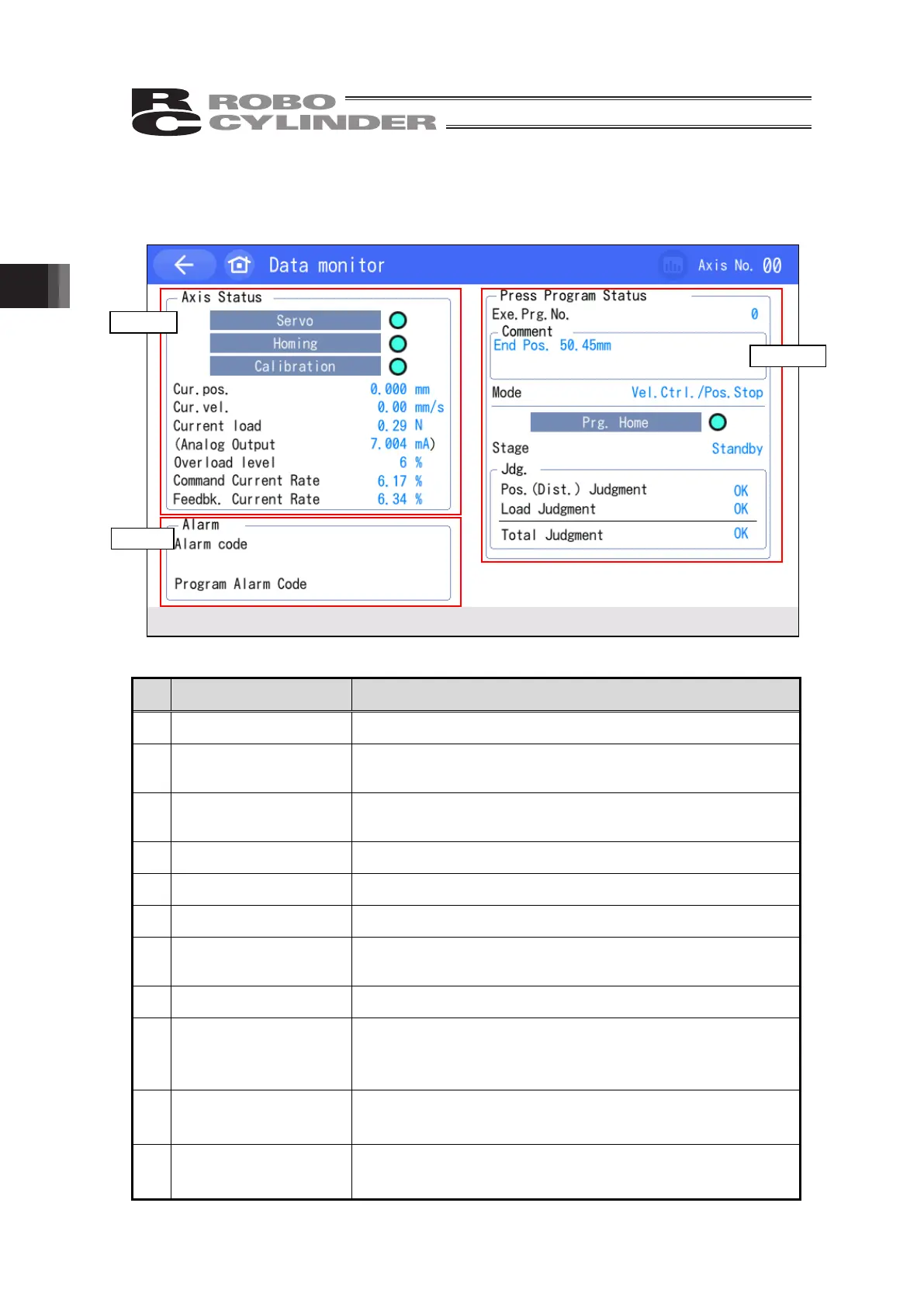

3.26.1.2 Data Monitor Screen
Touch [Data Monitor] button in the pressing program monitor window.
Press Program Data Monitor Screen Display List
Name Explanations
1 Servo The servo status is shown. ON is lit. OFF is unlit.
2 Homing
The home return status is shown.
Lit, if home return has completed.
3 Calibration
The status of loadcell calibration is shown.
Lit, if loadcell calibration has completed.
4 Cur. po
The current position is shown.
5 Cur. vel The current speed is shown.
6 Current load The current load is shown.
7 Analog Output
It shows the analog current output from the MF I/F connector
on the controller in accordance with the current load.
8 Overload level Tthe overload level is shown.
9
Command Current
Rate
The command value of electrical current is shown as a
percentage of the rated current.
The current rate will be shown if touching the command
current value.
10 Feedbk. Current Rate
It shows the rate of the feedback current to the rated value.
The current value will be shown if touching the feedback
current rate.
11
Command Current
Value
The command current is shown.
The current rate will be shown if touching the command
current value.
1 to 12
13, 14
15 to 22
To Next Page
