6. Operation of ELECYLINDER
346
6.9 Test Run
You can perform jog/inching operation, move to a position or continuously to multiple positions
registered in the position table, or move to a position by specifying the position directly.

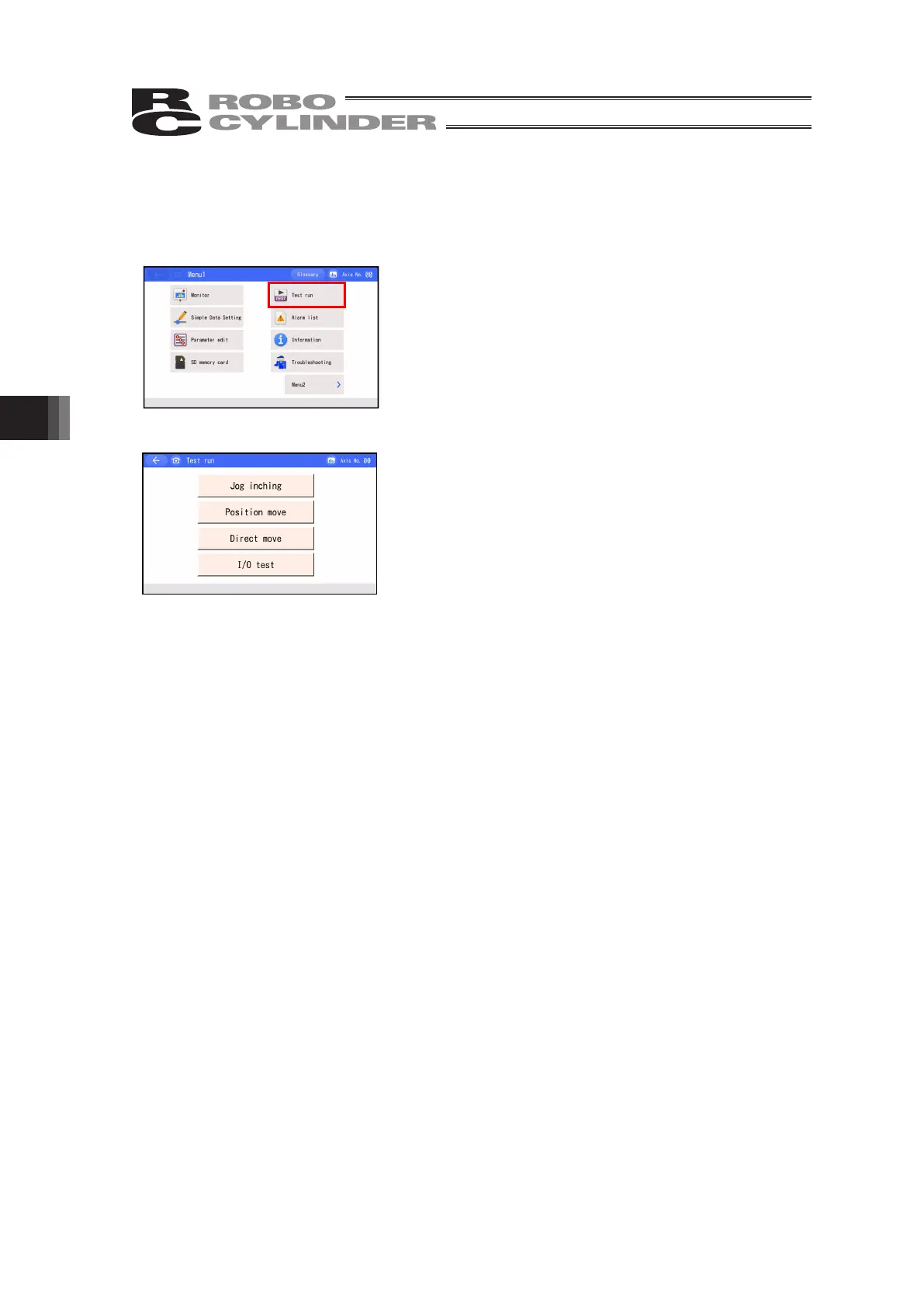

Touch [Test run] on the Menu 1 screen.
The movement menu screen appears.
Touch either one of [Jog inching], [Position move], [Direct
move] or [I/O test].
(1) Jog inching
Perform jog/inching operation.
Refer to [6.9.1 Jog Inching Operation] for details about how to operate.
(2) Position move
Movement to the forward end or backward end or continuous movement should be
performed.
 Move
Movement should be made from the current position to either of the forward end or the
backward end which has been indicated. (One time of movement only)
 Countinuous
Movement should be made repeatedly between the forward end and the backward end.
Refer to [6.9.2 Position Movement Operation] for details about how to operate.
(3) Direct move
Input the target position and the speed on the numeric keys to perform movement.
Refer to [6.9.3 Direct Movement Operation] for details about how to operate.
(4) I/O test
Monitoring of the input and output signals and compulsory output of the output signal can be
conducted.
Refer to [6.9.4 I/O Test] for details about how to operate.
