5. Operation of MEC Related Controllers
307

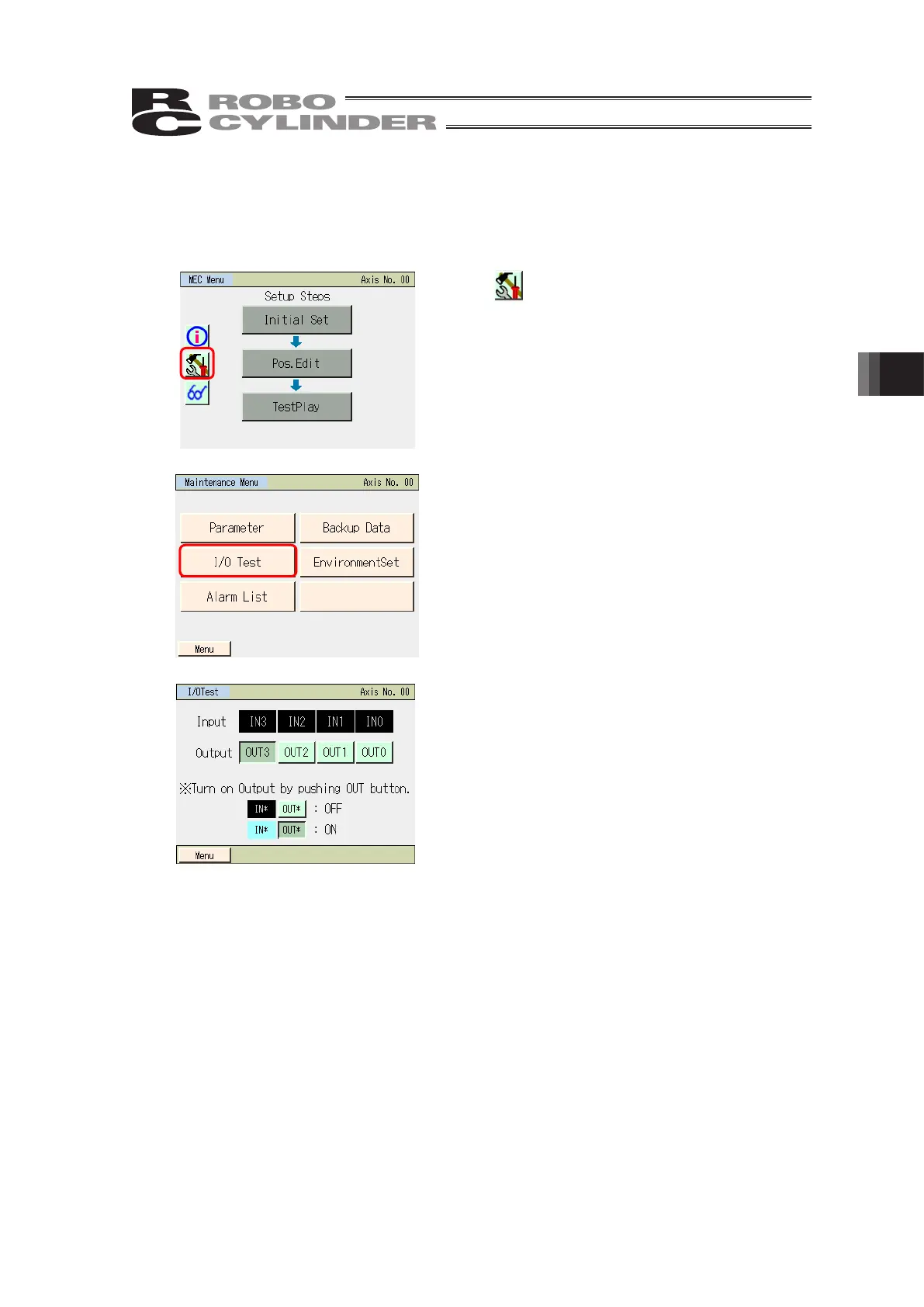

5.12 Maintenance – I/O Tests
You can monitor PIO input signals.
Output signals can be forcibly turned ON or OFF.
Touch on the MEC menu screen.
Touch [I/O Test].
Touch [Menu] to return to the MEC menu screen.
You can monitor the ON/OFF statuses of input
signals.
Output signals OUT0 to OUT3 can be forcibly output
by touching each signal button.
Touch [Menu] to return to the maintenance menu
screen.
Change ax.
