IAI TB-02 - Press Program Operation Screen

3. Operation of CON Related Controllers
175

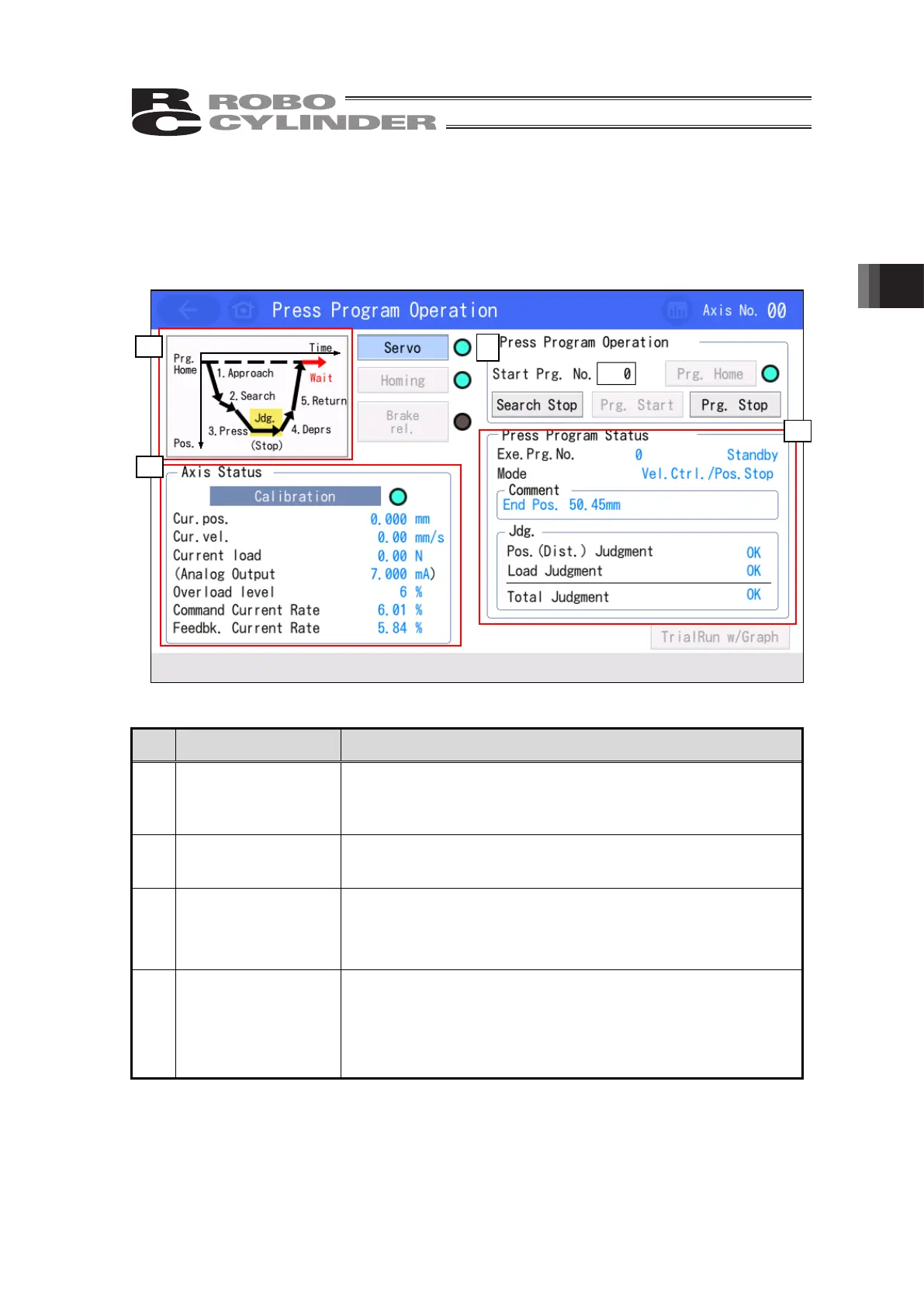

3.26.3.2 Press Program Operation Screen
A pressing program can be indicated and made executed.
Touch [Run Pressing Program] button in the pressing program test run menu window.
Or, touch [Test Run] button in the pressing program edit window.
Press Program Operation Screen Button List
Botton Name Explanations
1) Servo
Touch [Servo] while the servo is off to turn the servo on for an
axis and turn on the status display. If touching [Servo] while the
servo is on, the servo for an axis will turn off and the status
displa
y
turns off.
2) Homing
Touch [Home-Return], and an axis performs the home-return
operation and the status display turns on.
3) Brake rel.
For an actuator equipped with a brake, touch [Brake Compulsory
Release], and the screen shifts to the brake compulsory release
confirmation window. Touch [Brake Compulsory Release] again,
and the brake gets locked and the status display turns off.
4) Prg. Home
An axis moves to the program home position of the pressing
program set in Start Prg No.
The status display turns on once the axis movement has
completed.
The status display flashes during the depressurizing operation
and return operation.
1)
2)
4)
3)
5)
6)
7)
8)
2
3
1
ⅰ
