7. Gateway Parameter Setting Tool
383

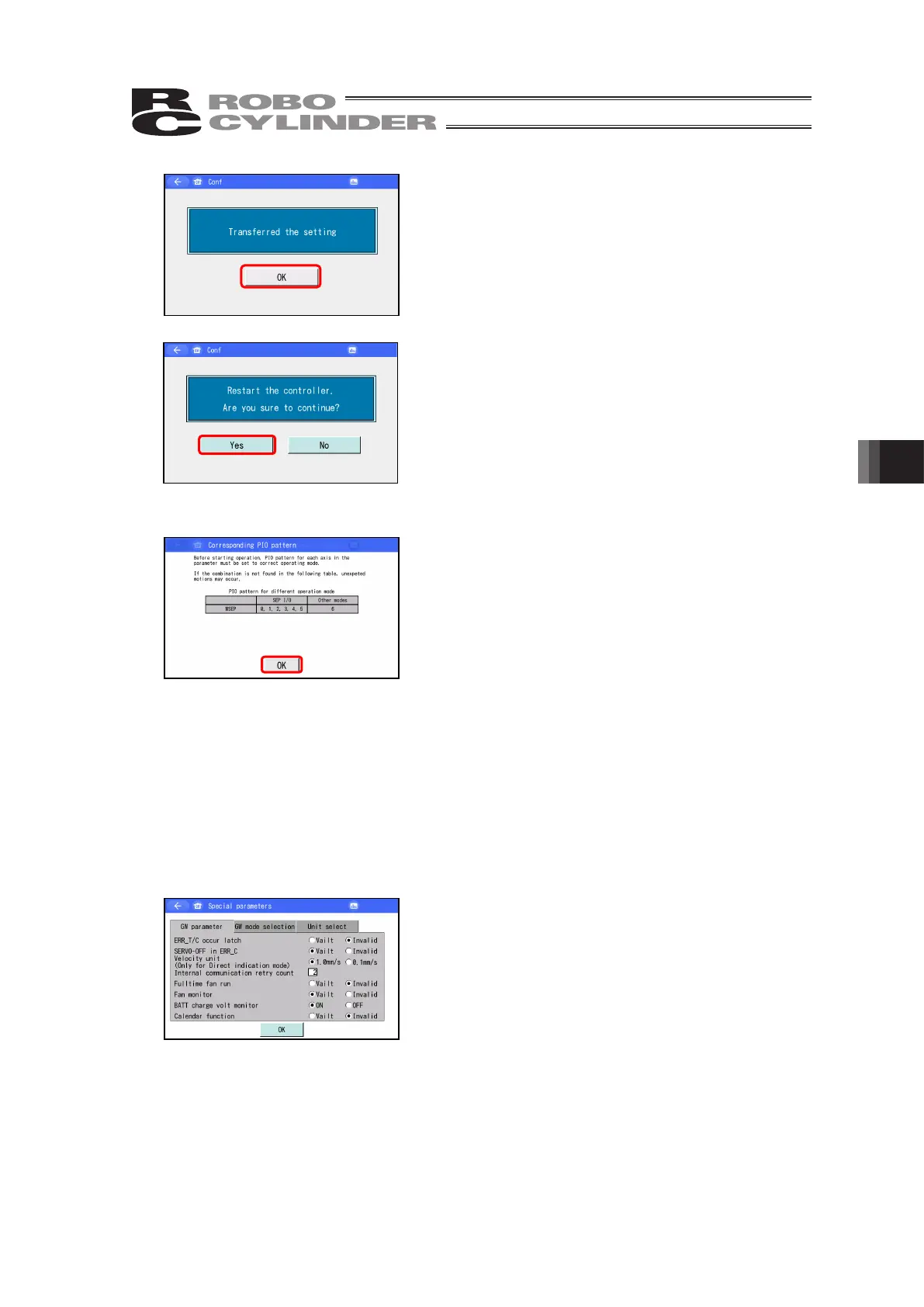

A message window to tell transfer is complete is shown
when the transfer is completed in normal condition.
Touch [OK] button.
Reboot the controller after transfer is completed to
activate the setting.
Touch [OK] button.
Reboot is cancelled if touching [No] button. The
transferred setting will not be activated in that case.
[Step 5] Corresponding PIO pattern Screen (only for MSEP-C and MCON-C/CG）
For MSEP-C and MCON-C/CG, the window for the
applicable PIO patterns is displayed.
Set the PIO pattern of the controller following the
displayed contents. It is not necessary to set the PIO
pattern for RCP6S and RCON.
Touch [OK] button to return to the gateway menu screen.
7.3.2 Special Parameter Setting
Establish the settings for the special parameters if necessary.
Refer to the instruction manual for each control for detail of each setting item.
(1) Special Parameters for MSEP-C and MCON-C/CG
GW Parameter
[Setting Items]
Condition latch after the servo is turned off when ERR_T
occurred (Vailt/Invalid)
Servo-off when ERR_C occurred (Vailt/Invalid)
Velocity unit (in Direct Numerical Mode only)
Communication Retry Number Setting
Fan always-on operation (Vailt/Invalid)
Fan revolution monitoring (Vailt/Invalid)
Absolute battery charge voltage monitoring (ON/OFF)
Calendar feature (Vailt/Invalid)
