3. Operation of CON Related Controllers
46
[Displayed Items]
 Cur. pos. The current position is shown.
 Current vel. The current speed is shown.
 Alarm code The applicable alarm code is shown.
 Overload level Shows the overload level.
 Cur. ratio The command value of electrical current is shown as a
percentage of the rated current.
 Cur. Shows the command current.
 Controller S/N Shows the manufacturing number of the controller.
 Servo The servo ON status is shown. ON is lit. OFF is unlit.
 Homing The home return status is shown. Lit, if home return has
completed.
 Control Voltage The voltage of the control power supply is shown.
 Motor V The voltage of the motor power supply is shown.
 PCB temp. The PCB temperature is shown.
The items and buttons to be shown will differ depending on the controller models.
The signal names to be shown will also differ depending on the controller models and operation
patterns.

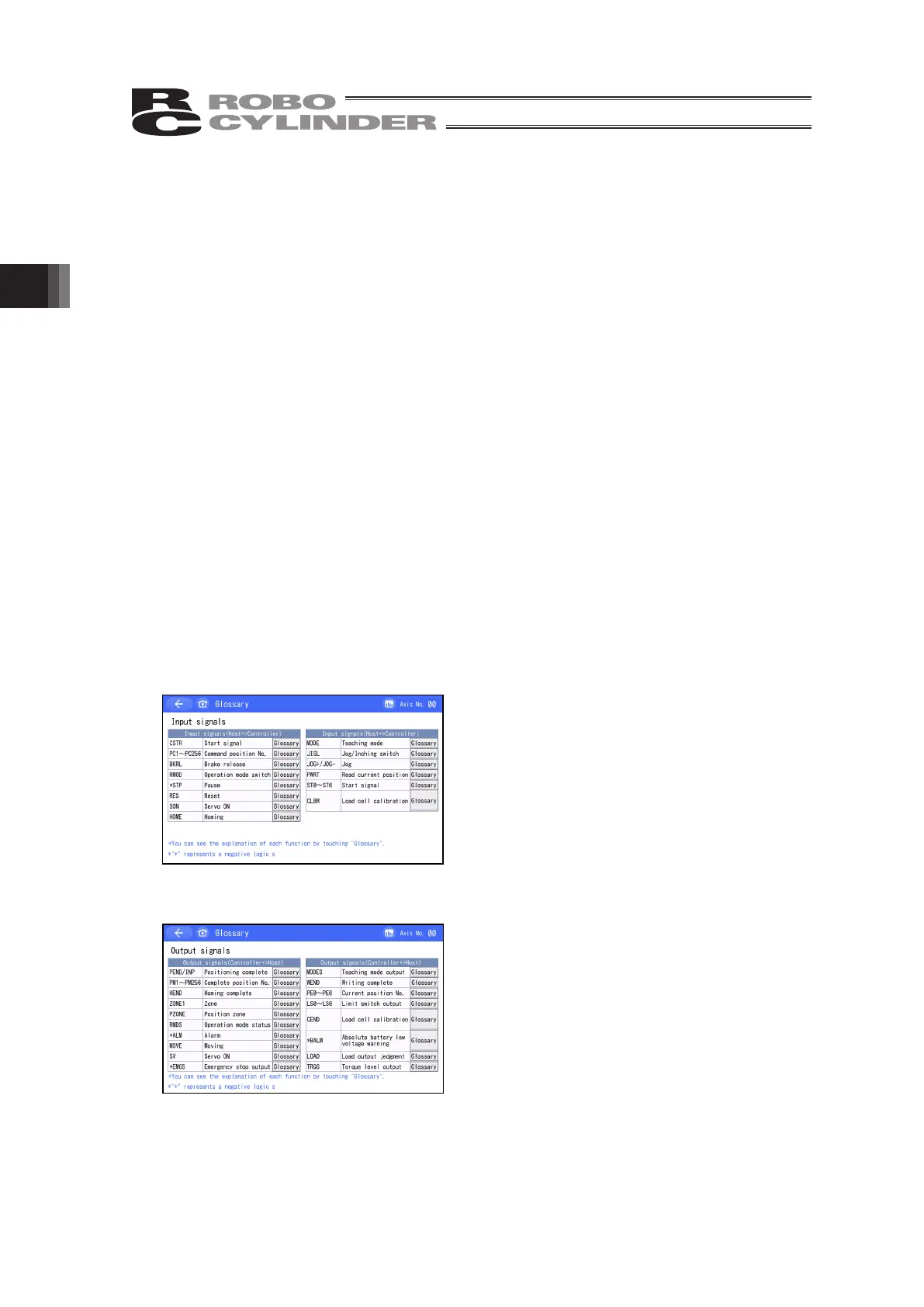

3.9.1.4 Glossary Screen for Input and Output Signals
In this screen, you can check the explanations for terms related to input and output signals.
Touch the [glossary] botton and the contents for each feature can be checked.
Glossary Screen for Input Signals
Glossary Screen for Output Signals
