3. Operation of CON Related Controllers
140

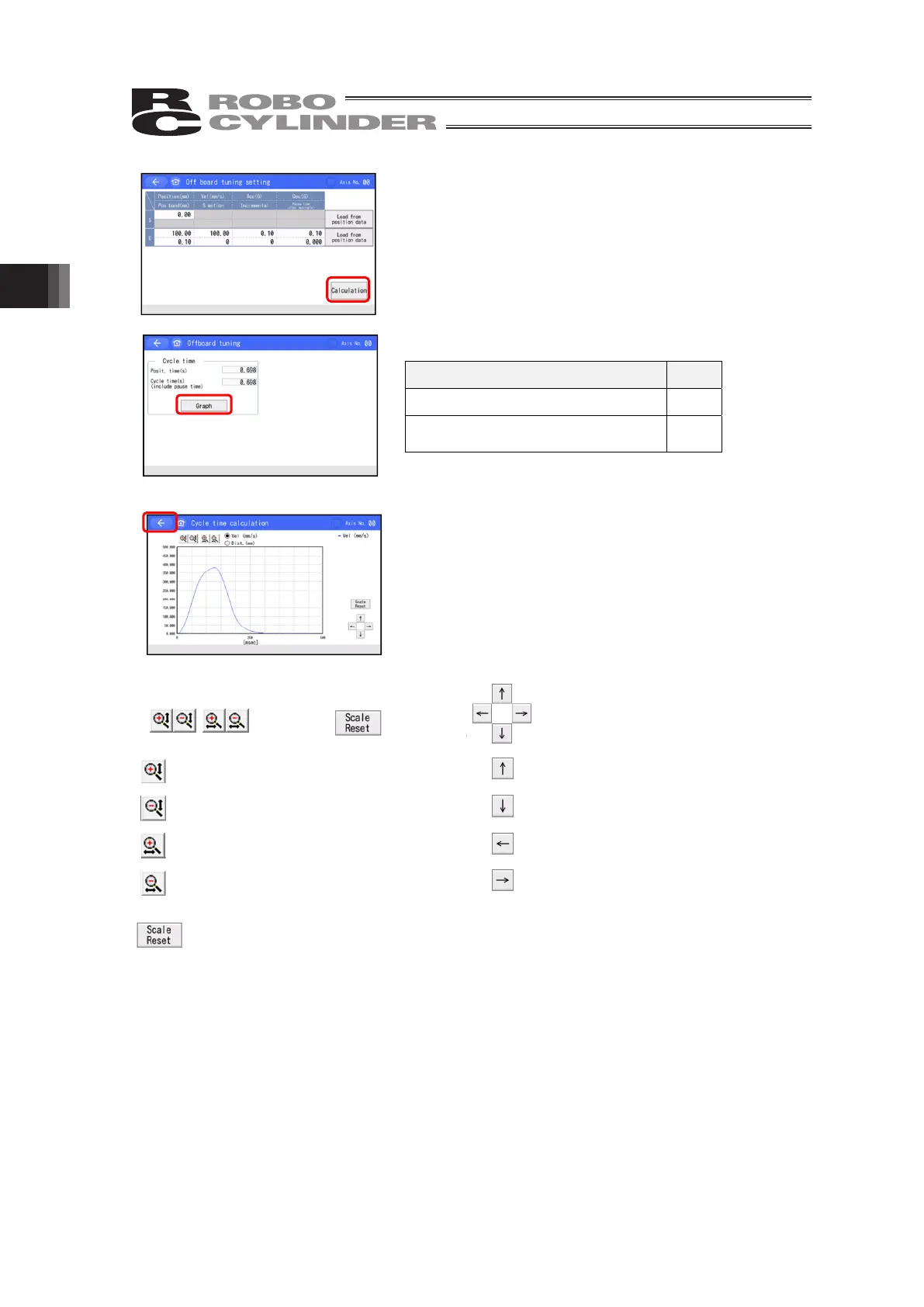

Touch [Calculation] button.
Cycle time is calculated and displayed.
Touch [Graph], and the graph of the cycle time will be
displayed.
Select either velocity (mm/s) or drive distance (mm) to show
its graph. (Values displayed on the left)
Touch [←] button to return to the offboard tuning window.
[Window Setting Buttons]
: Touch it to enlarge the scale of the graph
in vertical axis.
: Touch it to slide the displayed waveform
frame upwards.
: Touch it to reduce the scale of the graph
in vertical axis
: Touch it to slide the displayed waveform
frame downwards.
: Touch it to enlarge the scale of the graph
in horizontal axis
: Touch it to slide the displayed waveform
frame to the left.
: Touch it to reduce the scale of the graph
in horizontal axis
: Touch it to slide the displayed waveform
frame to the right.
: Touch it to initialize the scale of the graph.
Item name Unit
Posit. time (s)
Cycle time
include pause time
(s)
