5. Operation of MEC Related Controllers
273
[1] Example of initial setting operation
The operation is explained using specific examples.
Example of stopping at 2 points Set as follows.

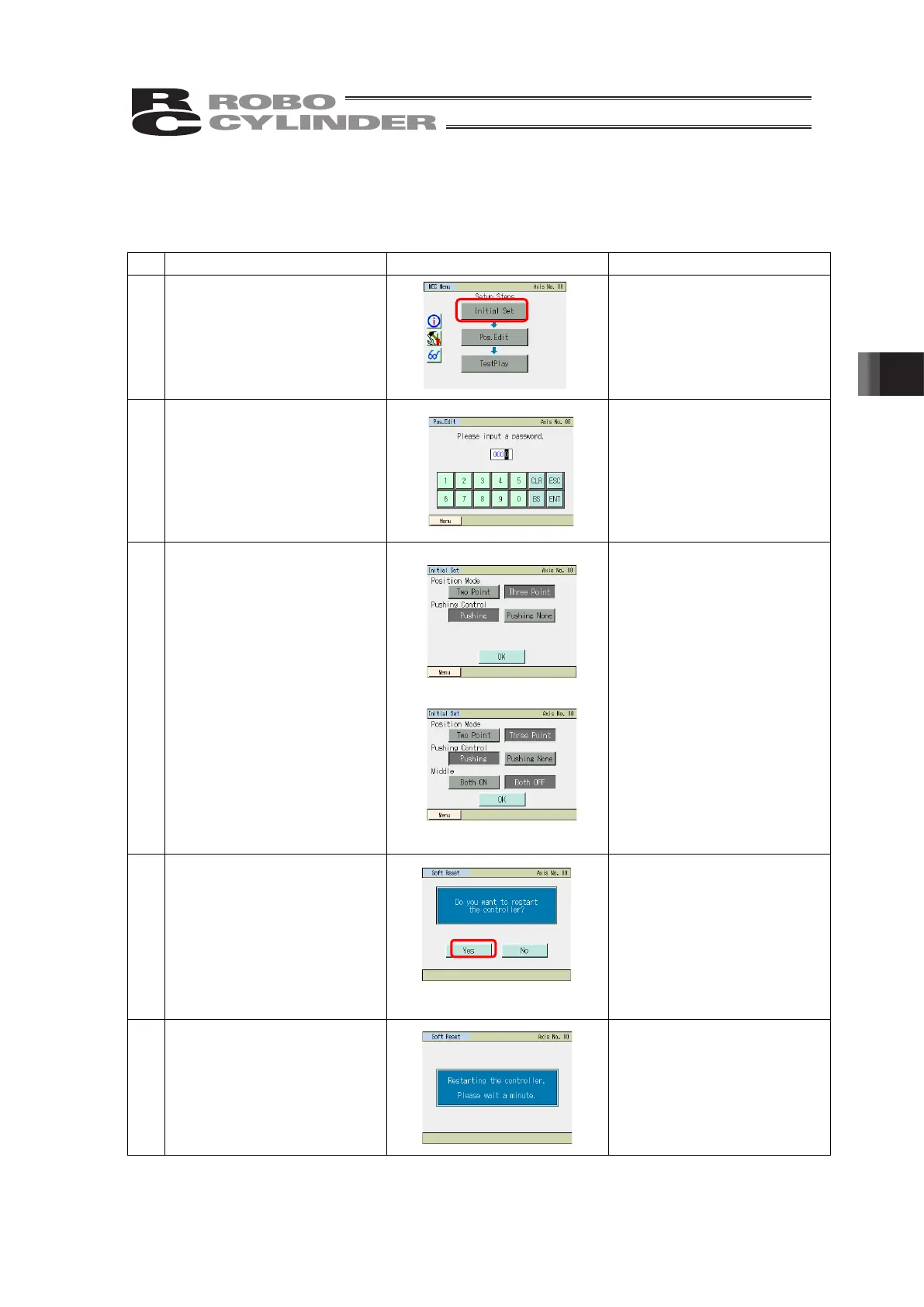

No. Operation Screen Remarks
1 Touch [Initial Set] on the MEC
menu screen.
2 If the system password is not
“0000,” the password entry
screen appears.
Enter the system password,
and then touch [ENT].
The default system password
is “5119”.
For how to change the system
password, refer to 5.11,
“Maintenance – Parameters
[Change System Password].”
3
Touch and select either [Two
Point] or [Three Point]
based on the number of
positioning points.
To perform positioning
operation select [Pushing
None]. To perform
push-motion operation
select [Pushing].
In the case of positioning to
the intermediate position in
the
3-point stop pattern, select
[Both OFF] or [Both ON] for
the ST0 and ST1 input
signals, and then touch
[OK].
Stopping at 2 points
Stopping at 3 points
Touch [Menu] to return to the
first MEC menu screen.
(Reference)
Factory setting
Stop position: [Two Point]
Push function: [Pushing
None]
Intermediate point
specification method: [Both
ON]
4 Touch [Yes]. To make the specified items
effective, you must restart the
controller. The settings you
have made will not be
reflected until the controller is
restarted.
Touch [No] to return to the
previous screen.
5
To Next Page
