5. Operation of MEC Related Controllers
290
4) Setting for push-motion operation (push force, push band)
An example of stopping at 2 points is explained.
In this example, push-motion operation is performed at the start point.
Push force: 50%, Push band: 5.0 mm

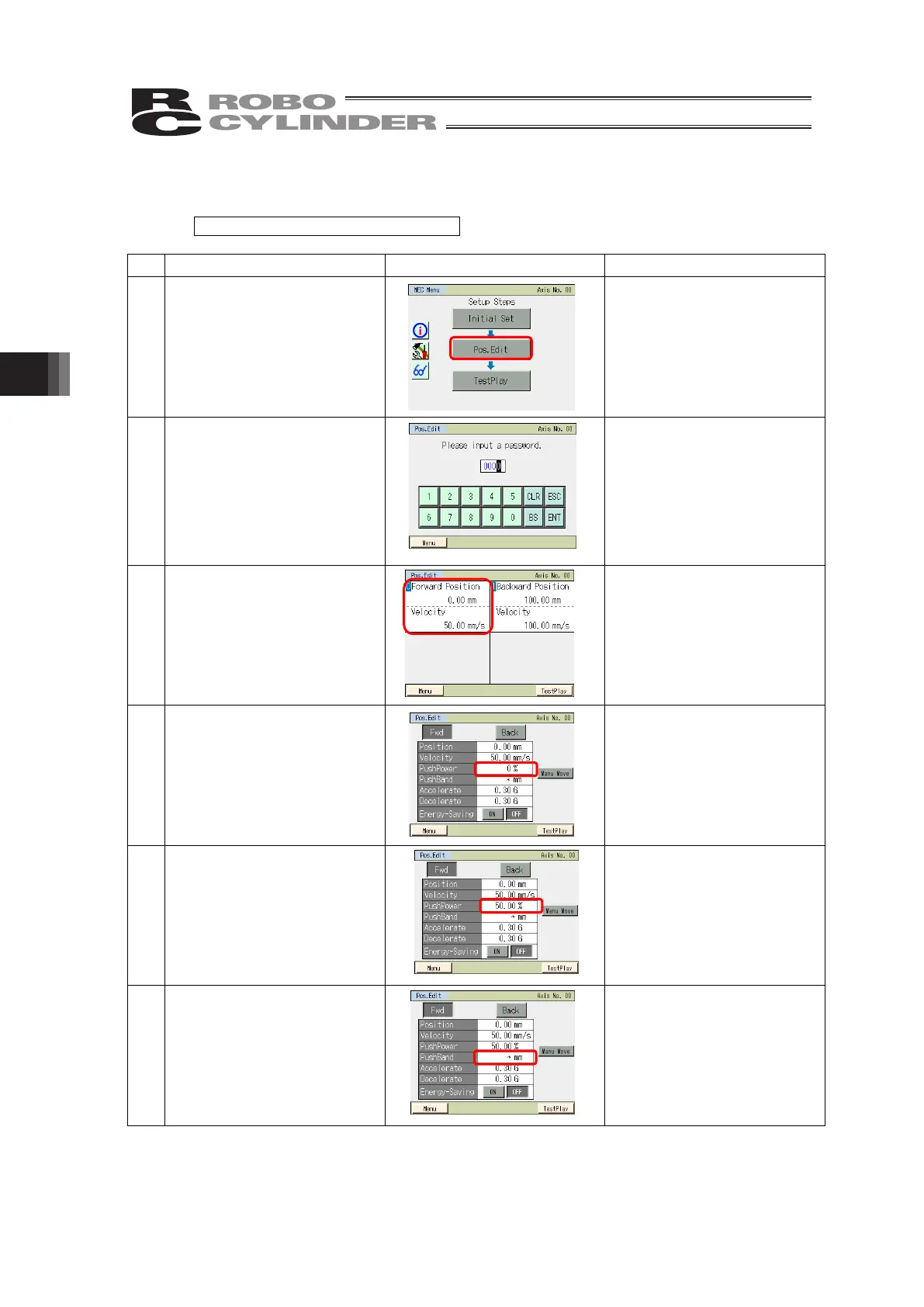

No. Operation Screen Remarks
1 Touch [Pos.Edit] on the MEC
menu screen.
2 If the position data edit
password is not “0000,” the
password entry screen
appears.
Enter the position data edit
password and touch [ENT].
A position data edit password
can be set in the “position
data edit password” field of
the parameter edit screen.
3 Set the position relating to the
start point, acceleration, and
deceleration.
Touch [Forward Position].
Touch [Menu] to return to the
MEC menu screen.
4 Touch the value field of
[PushPower].
When the numeric keypad is
displayed, touch [5], [0], and
then [ENT].
Touch [Menu] to return to the
position setting screen.
5 “50.00” is shown in the push
power field.
Touch [Menu] to return to the
position setting screen.
6 Touch the value field of
[PushBand].
When the numeric keypad is
displayed, touch [5] and then
[ENT].
Touch [Menu] to return to the
position setting screen.
To Next Page
