5. Operation of MEC Related Controllers
317

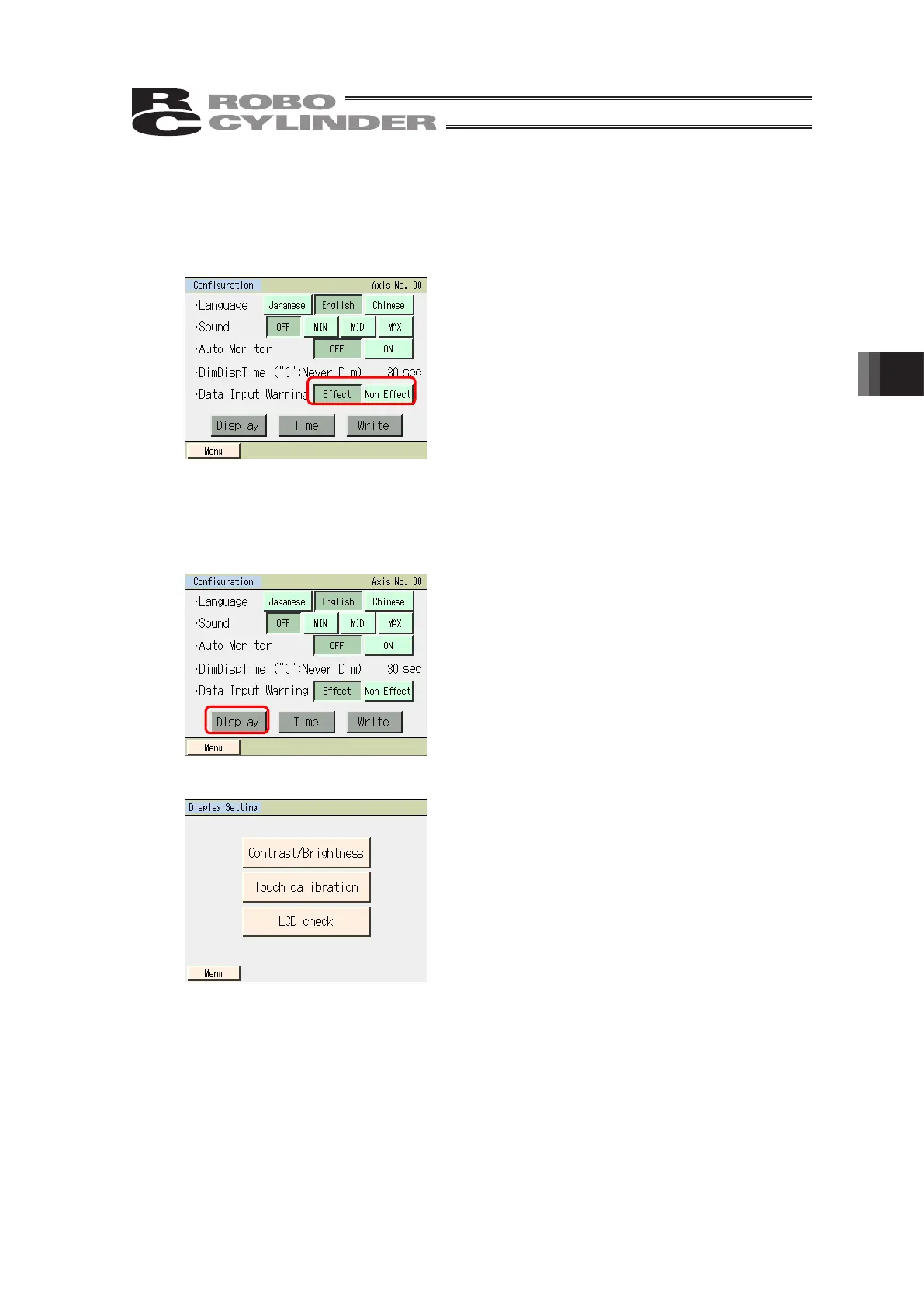

Data Entry Alarm: The alarm can be output when a value less than the minimum speed
and a value exceeding the rated acceleration/deceleration speed are
entered in the position data. Note that the value is entered even if the
alarm occurs. Always use within the specification of the actuator.
Touch [Effect] to give the warning.
Touch [Non Effect] not to give the warning.
Select either Effect or Non Effect, and then touch
[Write].
(Note) If writing is not conducted, the setting will
go back to those before making a change
when moving to another screen.
[Display]
Adjustment of contrast and brightness of the screen, position tuning for touch panel and LCD
screen check can be performed.
Touch [Display].
Display menu Window is displayed.
Select Display Setting menu.
Touch [Menu] and the display returns to
EnvironmetSet screen.
To Next Page
