6. Operation of ELECYLINDER
358

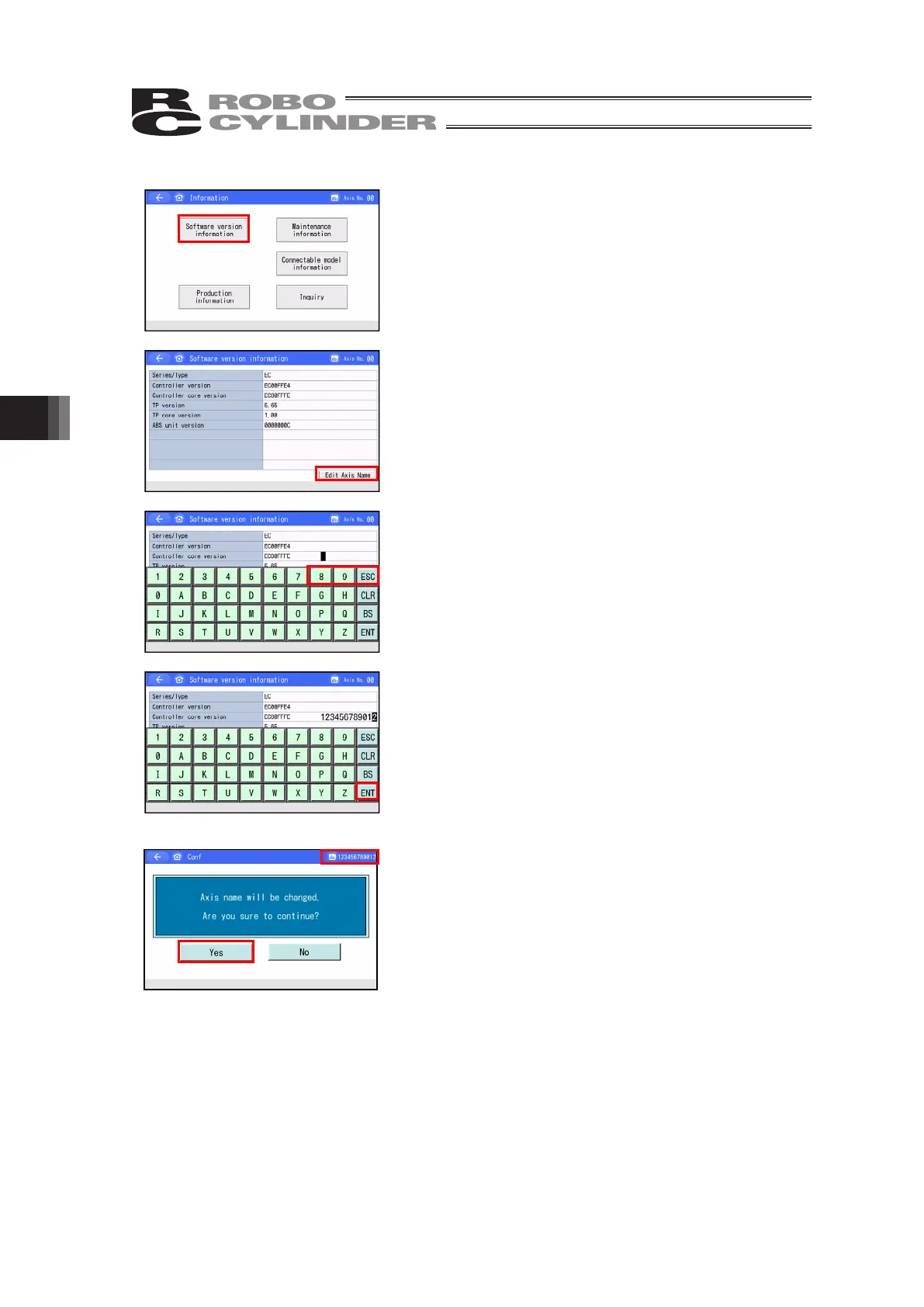

Information screen opens.
Touch [Software version information].
Touch [Edit Axis Name] button in Software version
information screen.
On the right of the Controller core version display is the input
area.
Character select buttons are shown in the half bottom of the
screen.
Input a name and touch [ENT].
The number of characters available for input is 12 in
half-size font characters.
Touch [ENT] with nothing input, and it is defined as no
setting. With no setting, an axis number will be shown.
Displayed in the top right is the name of the axis. (Tentative
setting condition)
Touch [Yes] to confirm the setting.
Touch [No] and the condition goes back to before setting.
