IAI TB-02 - Page 42

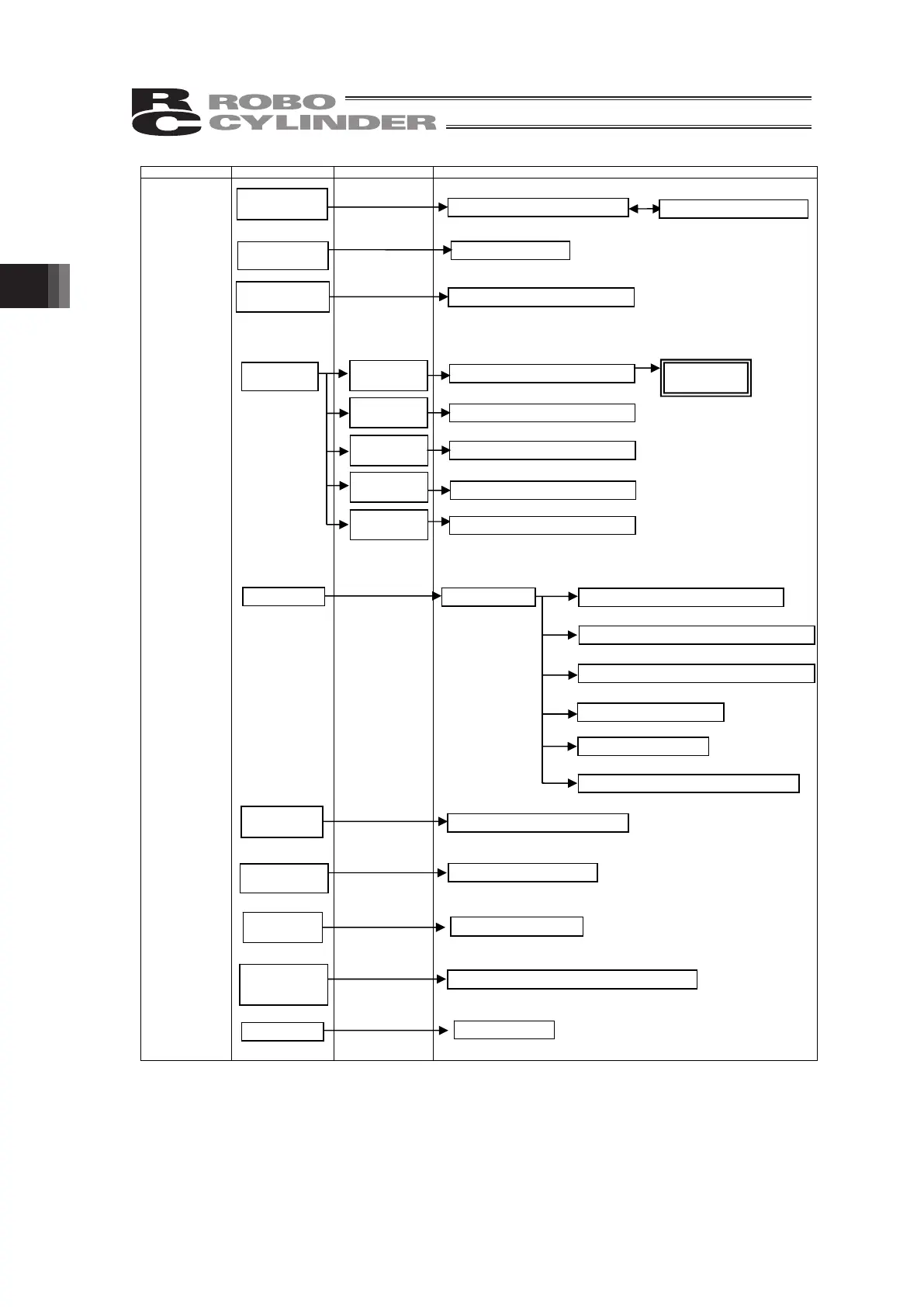

3. Operation of CON Related Controllers
30
Operation
Menu 2
Sub Menu Operation Window
Select/change
connected axis
controller
Select/change of connected axis controller Gateway parameter setting
Controller reboot
Controller reboot
Select TP
operation mode
(Monitor 1,
Monitor 2, Teach
1 and Teach 2)
TP operation mode select
Operation for
such as setting of
axis number and
parameter
initializing
Parameter initializing
Controller axis number setting
Loadcell Calibration
Loadcell Invalidation
I/O Customizing
Environment of
language setting,
touch sound
setting, etc.
Language setting, touch
operation sound, sleeping
time, data input warning System password change
Parameter edit password change
Position editing password change
Display settings (contrast and brightness changes)
Time setting
Startup initial window setting and guide display select
Display of
maintenance
part list
Maintenance part list display
Setting and
execution of
simple program
Execution of operation, stop setting, continuous operation and repeated operation
Offboard Tuning
Setting of each types of Gain, Cycle Time Calculation
Setting of pulse
train control
operation
parameter
Setting of pulse train control operation parameter
Move to menu 1
Menu 1 window display
TP Operation
Mode
TP Operation Mode Window
Menu 1
Menu 1 Window
Global Window
System Password Change Window
Position Editing Password Change Window
Display Setting Window
Time Setting Window
Parameter Edit Password Change Window
Startup Initial Window Setting Window
Global
Maintenance
Part List
Maintenance Part List Window
Sim
p
le Pro
g
ram Window
Simple Program
Pulse Train
Control Mode
Setting
Pulse Train Control Mode Setting Window
Change of
Operated Axis
Operated Axis Change Window
Gateway Menu Window
Offboard Tuning Window
Offboard Tuning
Controller Reboot
Controller
Reboot
Other
Settings
Parameter Initializing Window
Controller reset
Axis Number
Setting
Parameter
Initializing
Password
Input
Loadcell
Calibration
Axis Number Setting Window
Loadcell
Invalidation
Loadcell Calibration Window
I/O Customizing
I/O Customizing Window
3.4
3.15
3.13
3.16
3.18
3.21
3.22
3.24
3.23
