3. Operation of CON Related Controllers
60

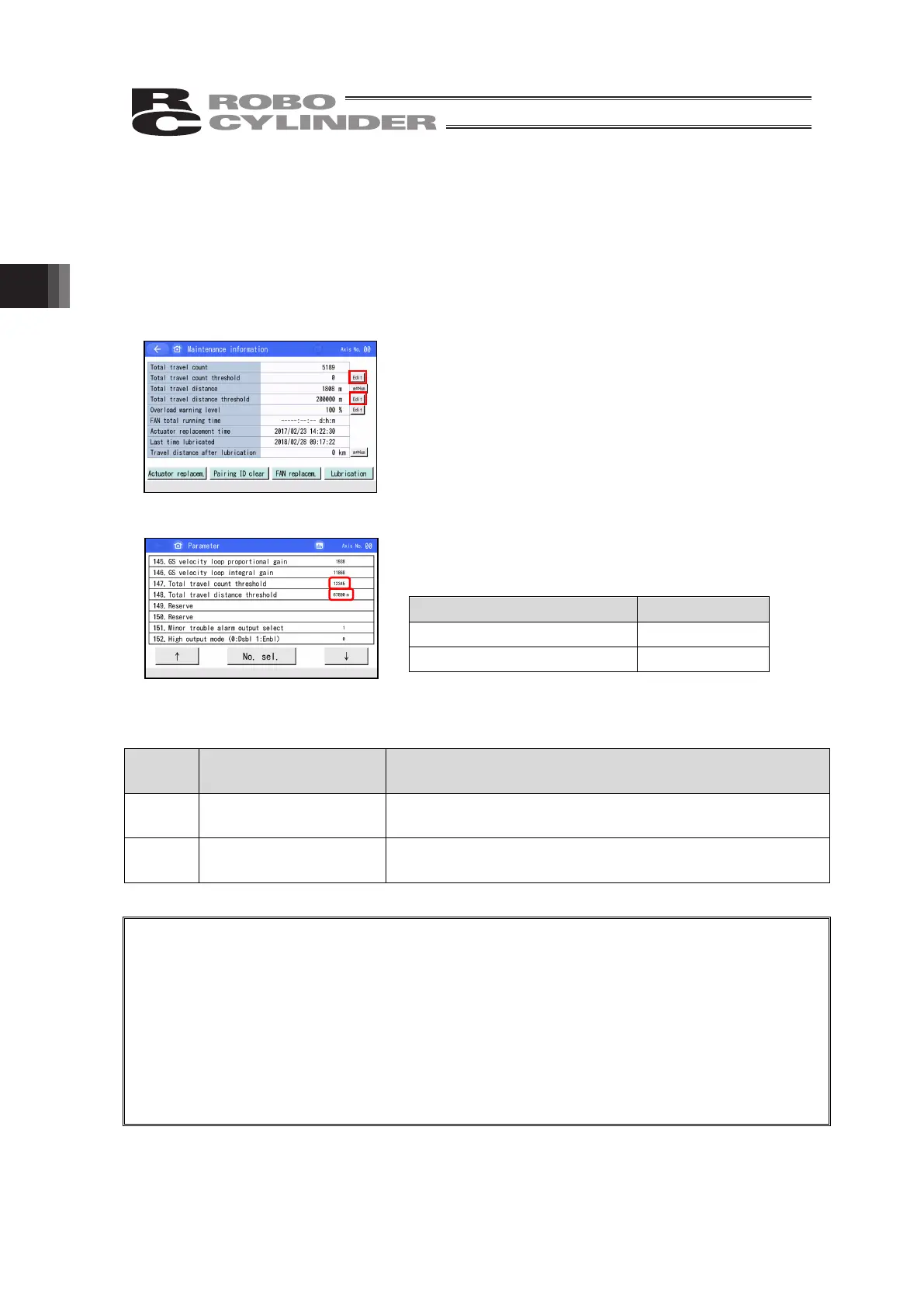

[Setting Values for Total Travel Count and Total Travel Distance]
It is available to issue a message level alarm when the total travel count has exceeded the setting
threshold for the total travel count or when the total travel distance has exceeded the threshold for
the total travel distance.
The settings for the total travel count threshold and the total travel distance threshold can be
established by the process below.
(1) Establish Setting in Maintenance Information Window
Touch Edit on the right hand of the total travel count threshold
or on the right hand of the total travel distance threshold, and
the setting can be adjusted for each value.
(2) Establish Setting by Parameters
Show the following items in Parameter Edit screen [refer to
3.11] and touch each value to adjust the setting for each value.
Adjustment of values in either way of (1) and (2) should be reflected to each other.
Message Level Alarm to be Output
Alarm
code
Name Description
04E
Exceeded Movement
Count Threshold
It should be issued when the movement count has exceeded
the movement count threshold (Parameter No. 147).
04F
Exceeded Operated
Distance Threshold
It should be issued when the operated distance has exceeded
the operated distance threshold (Parameter No. 148).
[Example of use of Total travel distance]
For example when using the RCPW rod type actuator, if the travel distance within three months
exceeds 300km, the scraper section should be greased during the periodic inspection after every
300km of travel. (If distance does not exceed 300km, grease every 3 months.)
In this case, if the total travel distance threshold (Parameter No. 148) is set to ‘300’ before starting
operation, alarm will notify you the timing for grease supply at the timing of exceeding 300km of
the drive distance.
After that, set the total travel distance threshold (Parameter No. 148) to ‘600’, ‘900’ …, which are
values that 300km of drive distance is added on top, and you can be continuously notified the
timin
s for
rease suppl
.
Item Parameter No.
Total travel count threshold 147
Total travel distance threshold 148
