Keysight N9915-90020 User’s Guide 129
Calibration for NA, CAT, and VVM ModesFUTURE
Mechanical Cal
Mechanical Calibration is performed using discrete standards from a Cal Kit.
Several Cal Kit definitions are built into the FieldFox. To learn about Cal Kit
definitions, refer to the Application Note, “Specifying Calibration Standards
and Kits for Keysight Vector Network Analyzers,” available online at
https://www.keysight.com/us/en/assets/7018-01375/application-notes/598
9-4840.pdf
.
Mechanical Cals are extremely accurate when performed using the correct Cal
Kits with standards that are clean and in good repair, and when using correct
connection procedures.
How to perform a Mechanical Cal
— Disconnect the DUT from the FieldFox.
— If a jumper cable or adapter is required to connect the DUT to the FieldFox,
then connect those components to the FieldFox connectors. The effects of
those components will be measured and removed during the calibration,
and only the effects of the DUT will be displayed in the measurement
results. These should be high-quality components!
— In NA, CAT, or VVM Mode, press Cal 5
.
—Then

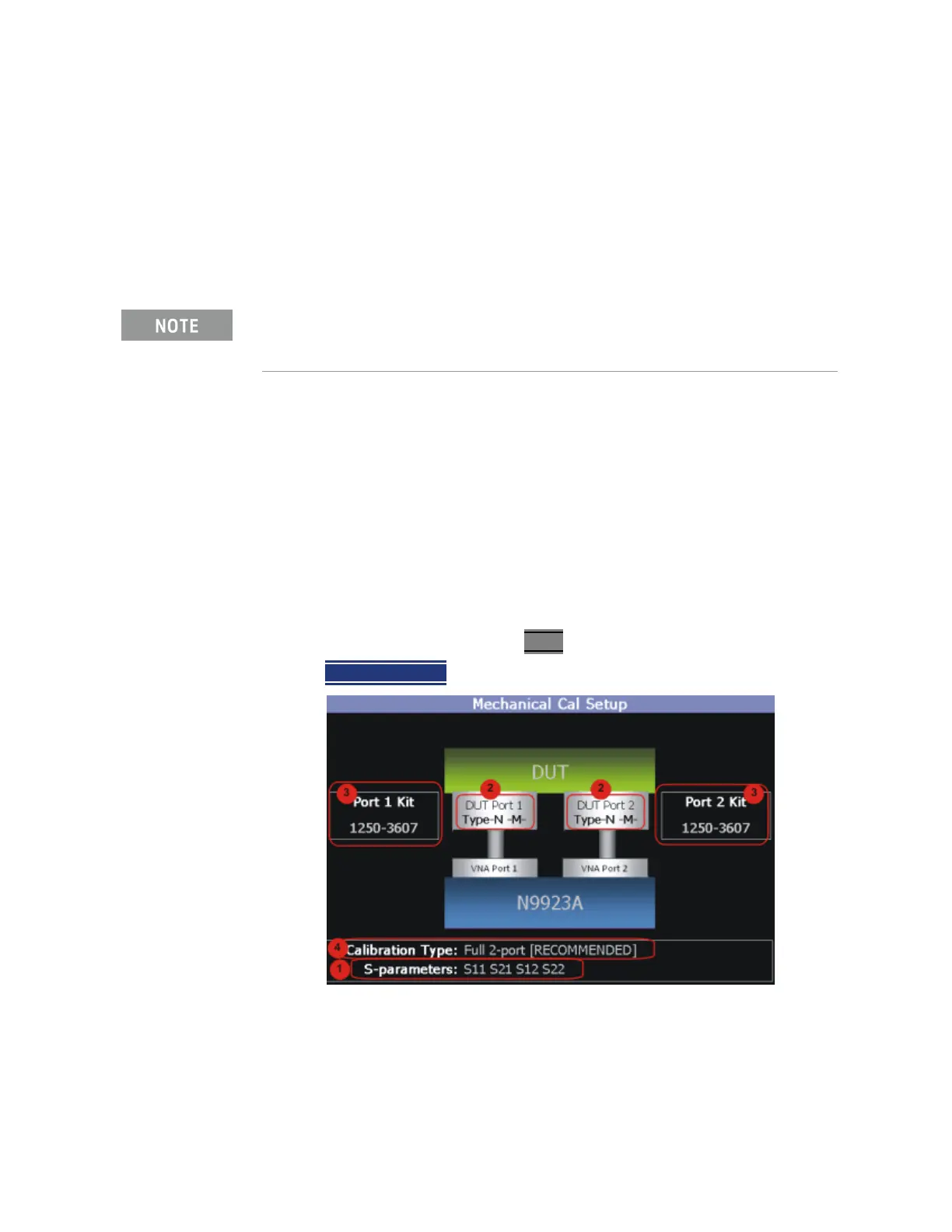

Mechanical Cal
This page summarizes the Mechanical Cal to be performed and allows you to
make changes. For best results, review the screen and make changes in the
following order:
Visit
www.keysight.com/find/fieldfoxsupport to see a complete list of
supported Cal Kits. Also at this website, download Data-Link software that
allows you to edit Cal Kit definitions or add a new Cal Kit.
