565

Keysight Handheld Analyzers

N99xxC User’s Guide

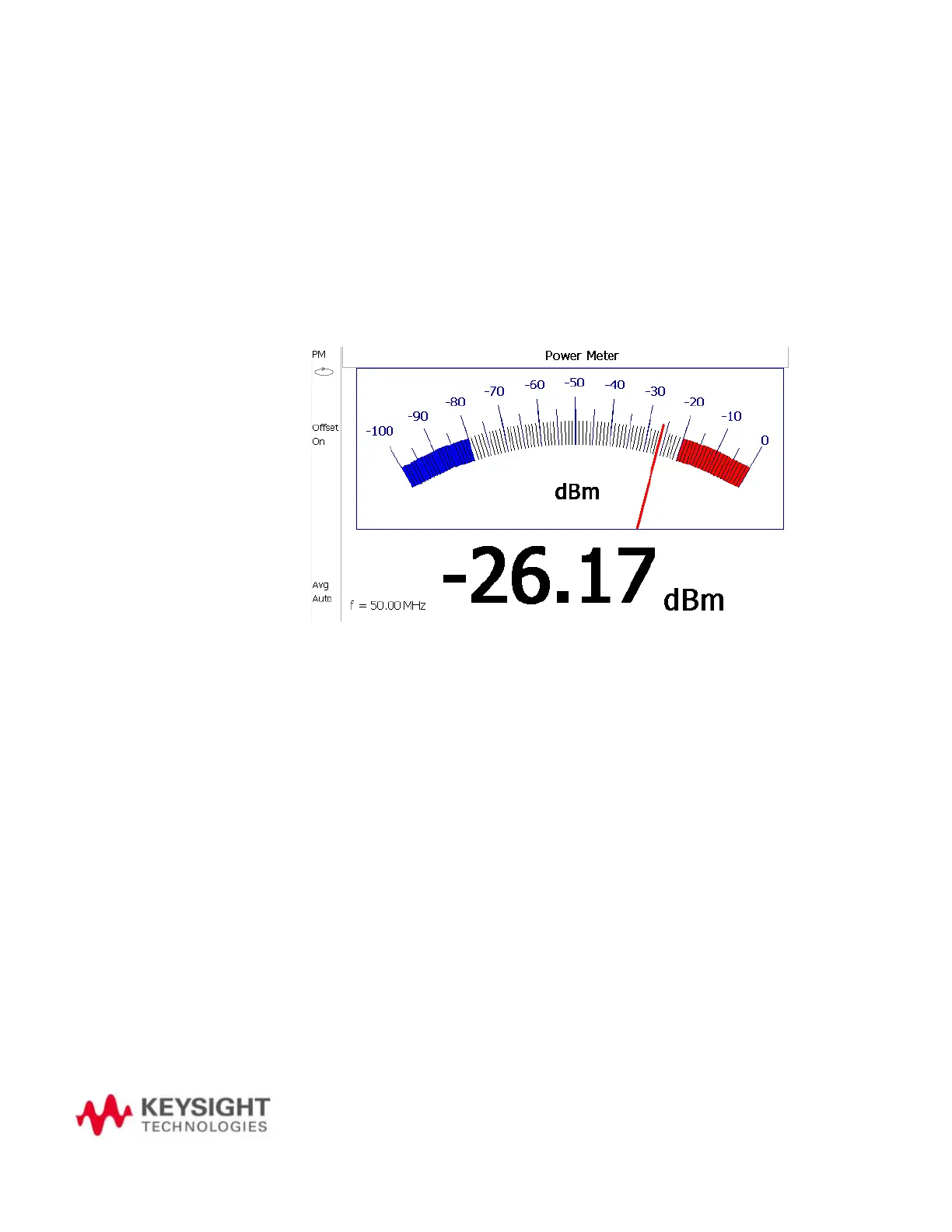

22 Power Meter (USB/LAN) Mode - Option 302

Power Meter measurements, available with Option 302, are made with

Keysight USB power sensors. Power readings are displayed on the FieldFox

screen.

In this Chapter

“Supported Power Sensors” on page 567

“How to Connect a USB Power Sensor” on page 567

“How to Connect a LAN Power Sensor” on page 568

“How to select Power Meter Mode” on page 570

“Average / Peak” on page 571

“Zeroing” on page 571

“Frequency” on page 572

“Source Control” on page 572

“Source Power Measurements” on page 574

“Relative and Offset Power Measurements” on

page 574

“Display Units” on page 575
