Keysight Technologies C Series - 25 VVM (Vector Voltmeter) Mode - Option 308

609
Keysight Handheld Analyzers
N99xxC User’s Guide
25 VVM (Vector Voltmeter) Mode - Option 308
VVM Mode (Option 308) measures the electrical length of cables and other
devices. The 1-Port Cable Trimming and 2-Port Transmission measurement
displays the electrical length in both Magnitude and Phase.

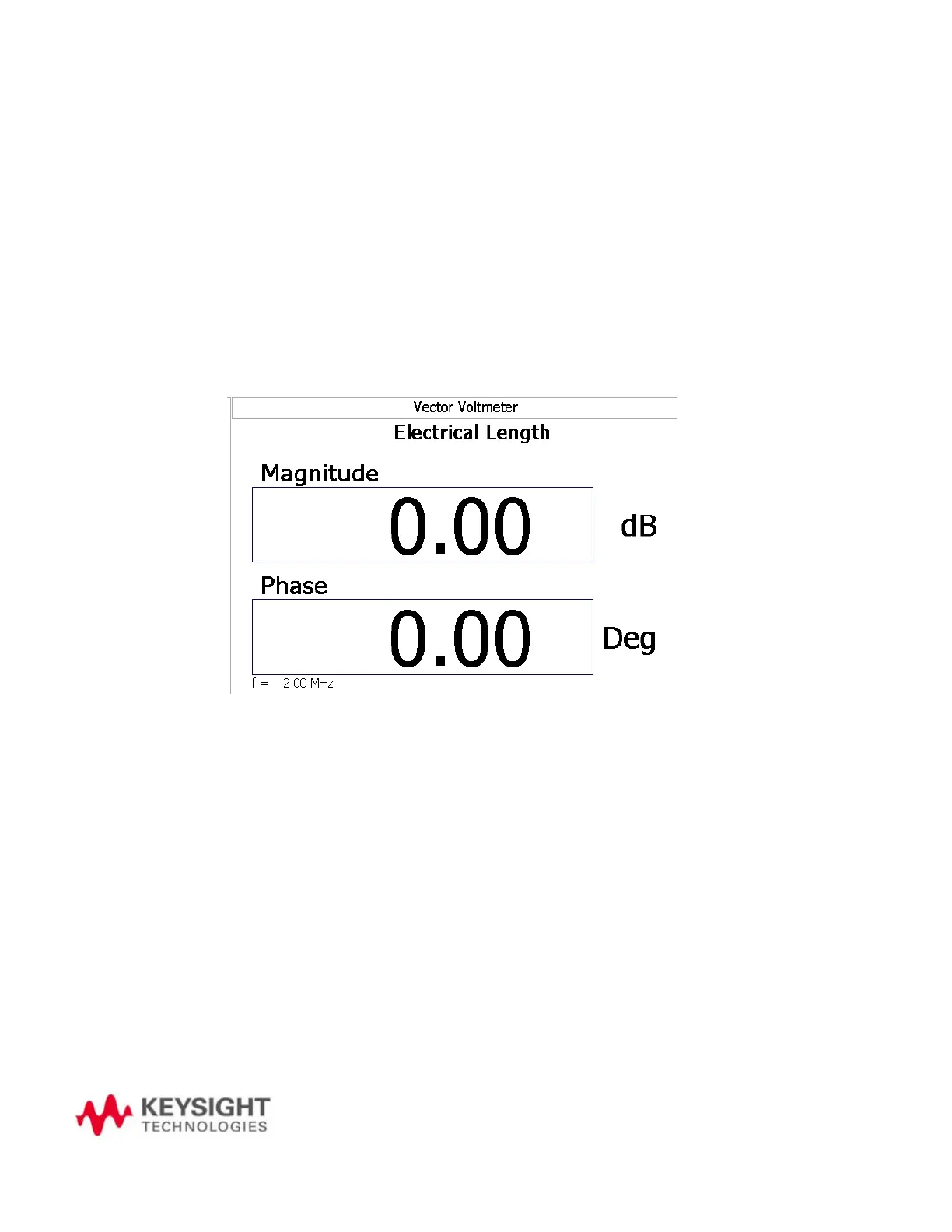

Figure 25-1 Display for the 1-Port Cable Trimming measurement
In this Chapter
“Overview” on page 611
“Measurement Selection” on page 612
“Frequency Selection” on page 612
“Display Resolution” on page 612
“IF Bandwidth” on page 613
“Output Power” on page 613
“Averaging” on page 614
“Single or Continuous Measure” on page 615
“VVM Calibration” on page 615
“Zeroing” on page 615
