How to Set Up Mapping Settings
How to Set Up Mapping Settings
This section reviews the steps in setting up an Option 352 Mapping
measurement.
This section consists of:
— “How to Set Up Mapping When the FieldFox Is On The LAN”
— “Option 352 Indoor Maps Setup Procedure”

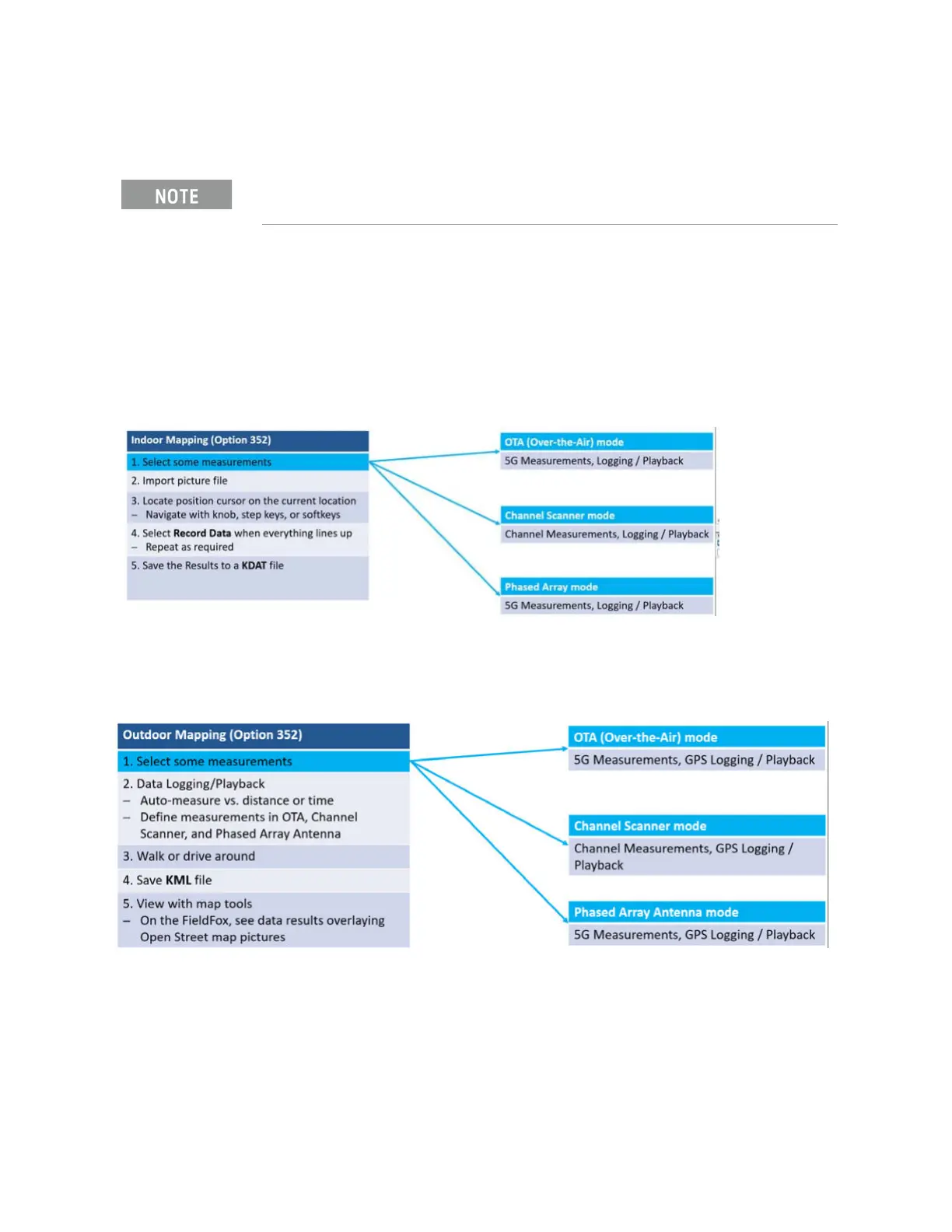

Figure 16-12 Overview – Setting Up Option 352 (Indoor Mapping) Using Other Modes
—
“Option 352 Outdoor Maps Setup Procedure” (Requires GPS Option 307)
Figure 16-13 Overview – Setting Up Option 352 (Outdoor Mapping) Using Other Modes
IMPORTANT! See also,
“Alignments” on page 206, in SA mode.
