Keysight N9915-90020 User’s Guide 361
Over–the–Air Measurements (OTA) – LTE FDD Option 370, LTE TDD Option 371, 5G TF
Option 377, 5G NR / 5G NR EVM Conducted Option 378
About Over–the–Air (OTA) Measurements

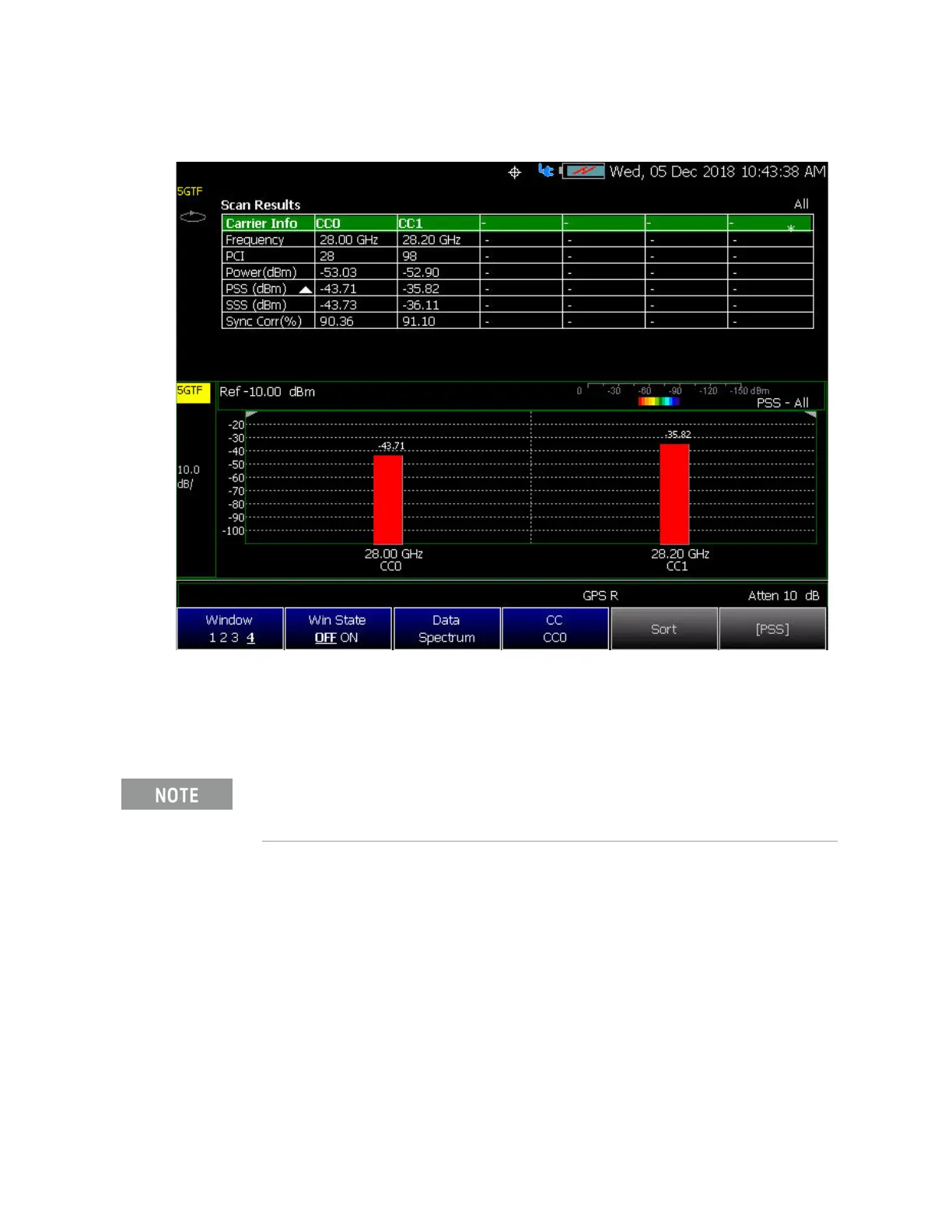

Figure 13-14 Example of 5G TF Single Carrier and Single Cell
5G NR Features (Option 378)
5G NR has the following features:
Refer to step
11 and “5G NR:” on page 373. See also, “5G NR EVM Conducted
Features (P/O: Option 378)” on page 364
.
Cell Scan Results:
— Center frequency
— PCI (Physical Cell Identifier) – (Cell ID-Sector ID-Group ID) – (C-S-G)
— SSB (Synchronization Signal Block) Index
— RSRP (Reference Signal Received Power) (dBm)
— RSRQ (Reference Signal Received Quality) (dB)
IMPORTANT! 5G NR only demodulates PSS, SSS and PBCH DMRS signals
using the FieldFox's 100 MHz demodulation path. User data channels are
not demodulated.
