591
Keysight Handheld Analyzers
N99xxC User’s Guide

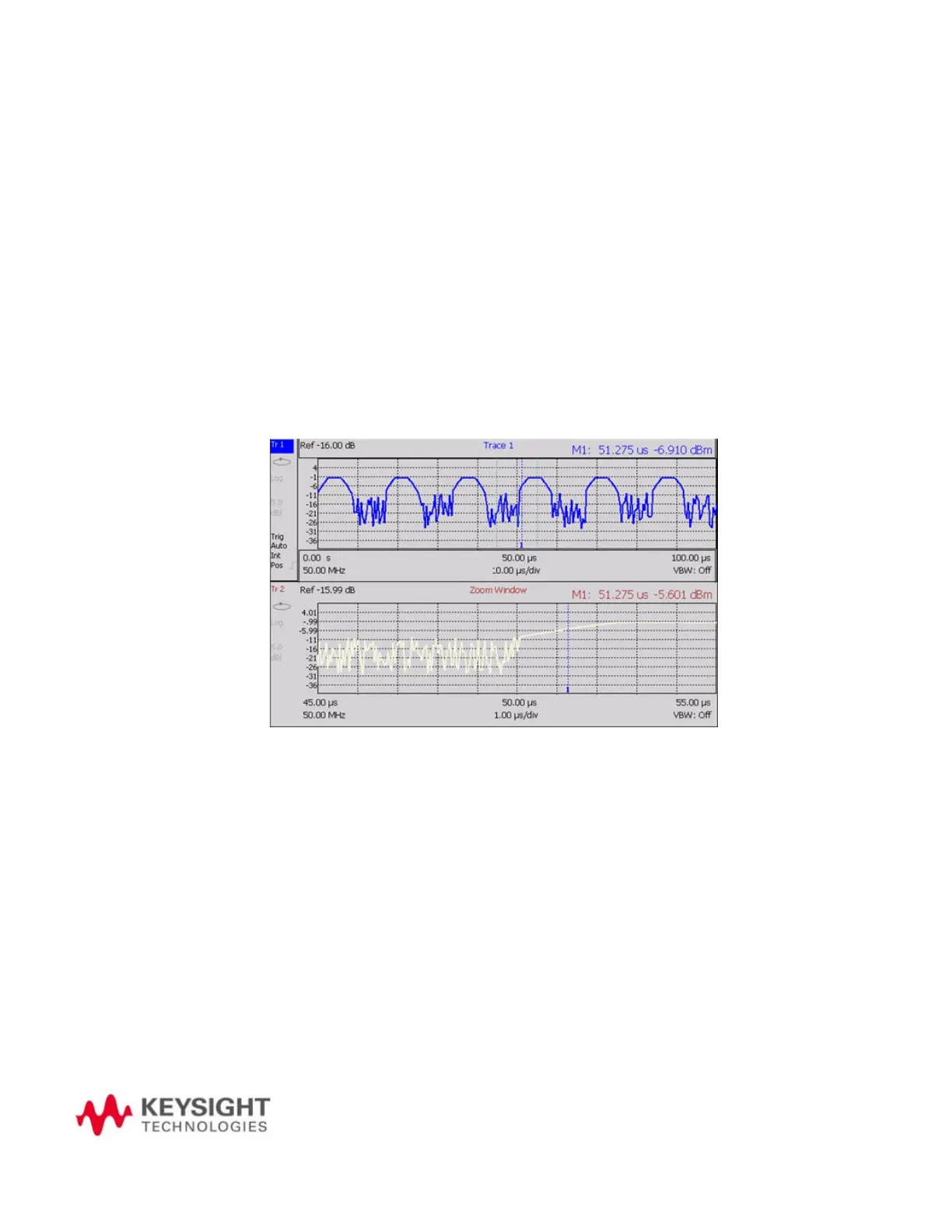

24 Pulse Measurements Mode – Option 330
Pulsed power meter measurements, available with Option 330, are made with
Keysight X-Series USB and LAN Peak Power Sensors. These sensors are
capable of detecting, measuring, and storing data from a train of pulses at the
RF input. This data is queried from the USB and LAN Power Sensor and
displayed on the FieldFox screen. You can then analyze the data using several
selectable settings. Refer to
Table 24-1 on page 593.
In this Chapter
“Supported Power Sensors” on page 593
“Measurement Selection” on page 597
“Frequency / Time” on page 597
“Zoom Window” on page 598
“Scale” on page 599
“Averaging ” on page 599
“Video Bandwidth” on page 600
“Single or Continuous Measure” on page 601
“Resolution” on page 601
